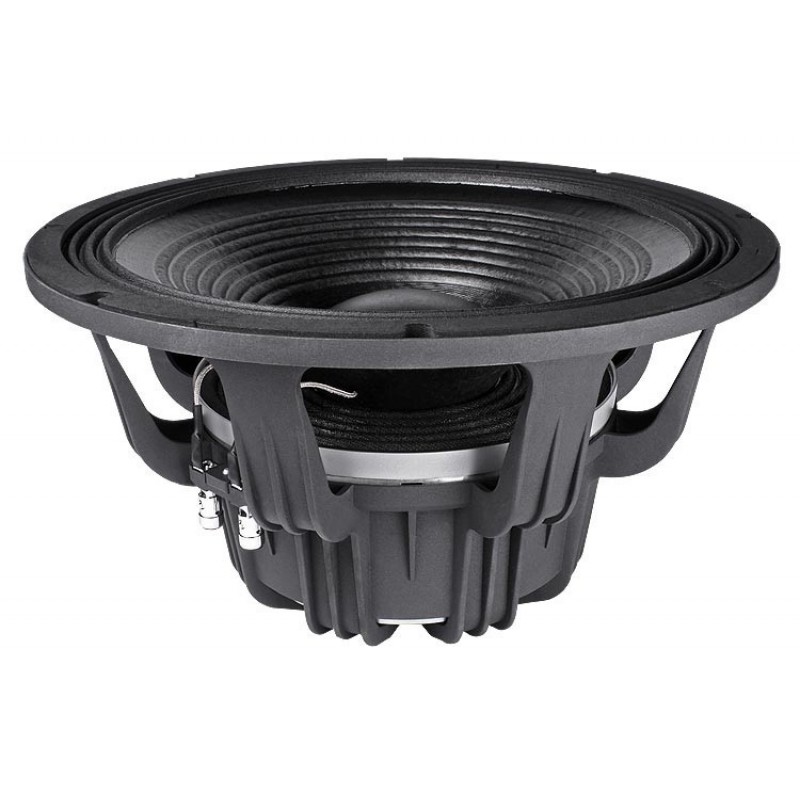

Faital Pro 15XL1400 15" Speaker 1400W 8 Ohm

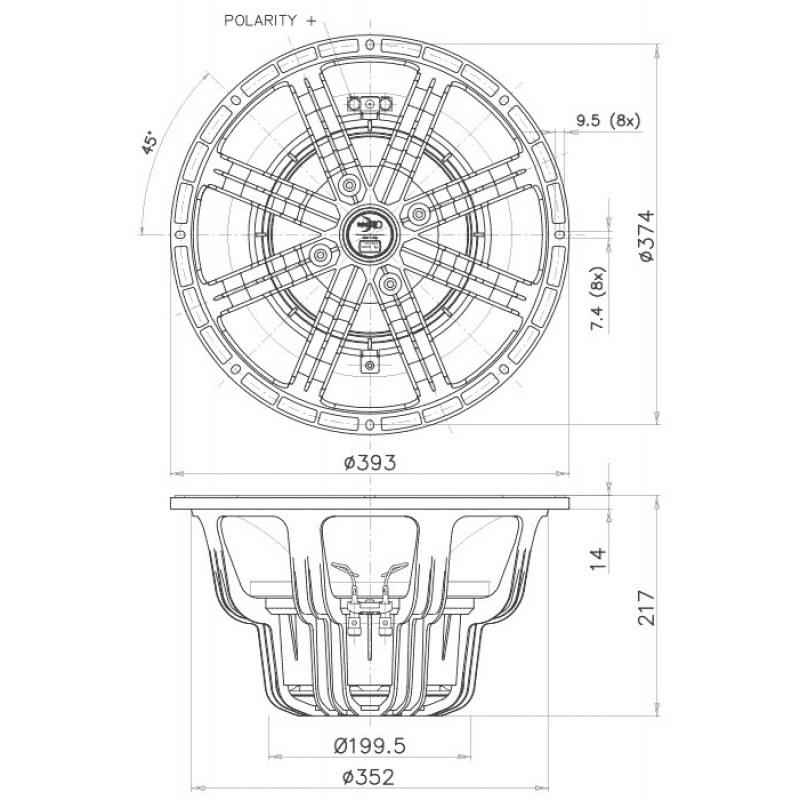

Nominal Specifications
- Nominal Diameter - 380 mm (15 in)
- Overall Diameter - 393 mm (15.47 in)
- Bolt Circle Diameter - 374 mm (14.72 in)
- Baffle Cutout Diameter - 354 mm (13.94 in)
- Depth - 217 mm (8.54 in)
- Flange and Gasket Thickness - 14 mm (0.55 in)
- Net Weight - 11.8 Kg (25.9 lb)
- Shipping Box(Single Carton Box) - 422 x 417 x 264 mm (16.6 x 16.4 x 10.4 in)
- Shipping Weight - 13.5 Kg (29.8 lb)
Technical Parameters
- Nominal Impedance - 8 Ohm
- Minimum Impedance - 7.4 Ohm
- AES Power Handling (1) - 1400 W
- Maximum Power Handling (2) - 2800 W
- Sensitivity (1W/1m) - 96 dB
- Frequency Range - 40-2500 Hz
- Voice Coil Diameter - 100 mm (4 in)
- Winding Material - Cu
- Former Material - Glass Fiber
- Winding Depth - 31 mm (1.22 in)
- Magnetic Gap Depth - 15.5 mm (0.61 in)
- Flux Density - 1.05 T
- Magnet - Neodymium Slug Crown
- Basket Material - Aluminum
- Demodulation - Triple Al Dem. Ring
- Cone Surround (3) - Triple Roll
- NET Air Volume filled by Loudspeaker - 6 l (0.212 ft^3)
- Spider Profile - 2x non-adjacent symmetrical constant height waves
Thiele and small parameters
- Fs - 38 Hz
- Re - 5.4 Ohm
- Qes - 0.34
- Qms - 10.4
- Qts - 0.33
- Vas - 79.7 l (2.81 ft^3)
- Sd - 780 cm^2 (120.90 in^2)
- Xmax (4) - 12.92 mm
- Xdamage (5) - 28 mm
- Mms - 190.0 g
- Bl - 26.7 N/A
- Le - 1.6 mH
- Mmd - 177.7 g
- Cms - 0.10 mm/N
- Rms - 4.36 Kg/s
- Eta Zero - 1.24 %
- EBP - 112 Hz
