Preţ: 793,68 Lei
Fără TVA: 666,96 Lei
Dep. Ext. - livrare 10-14 zile
Producător: Faital PRO
Cod produs: Faital Pro 12FH500
-
+

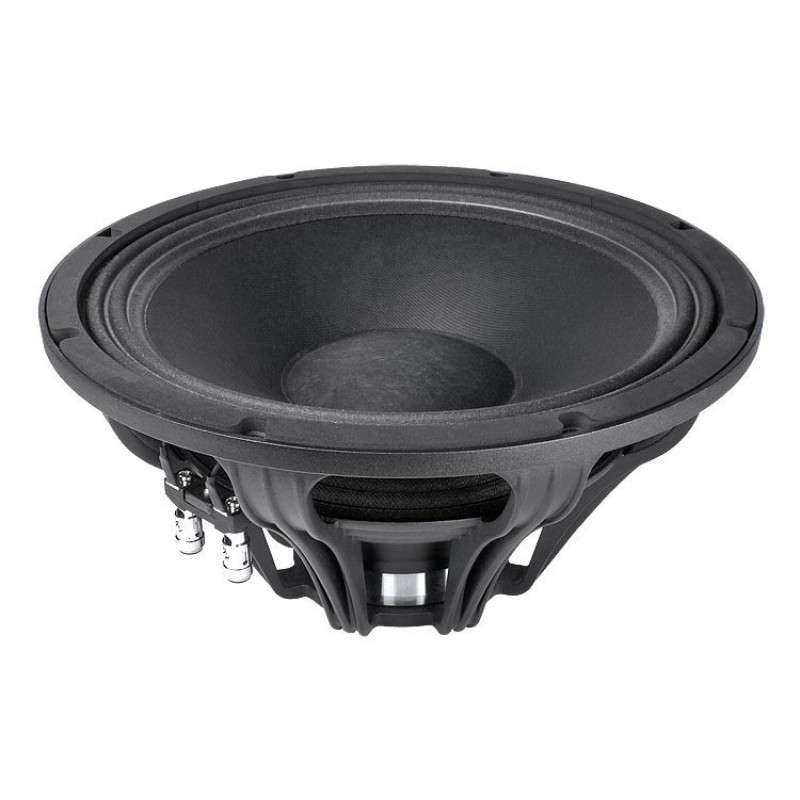

Faital Pro 12FH500 12" Speaker Driver 500W 8 Ohm

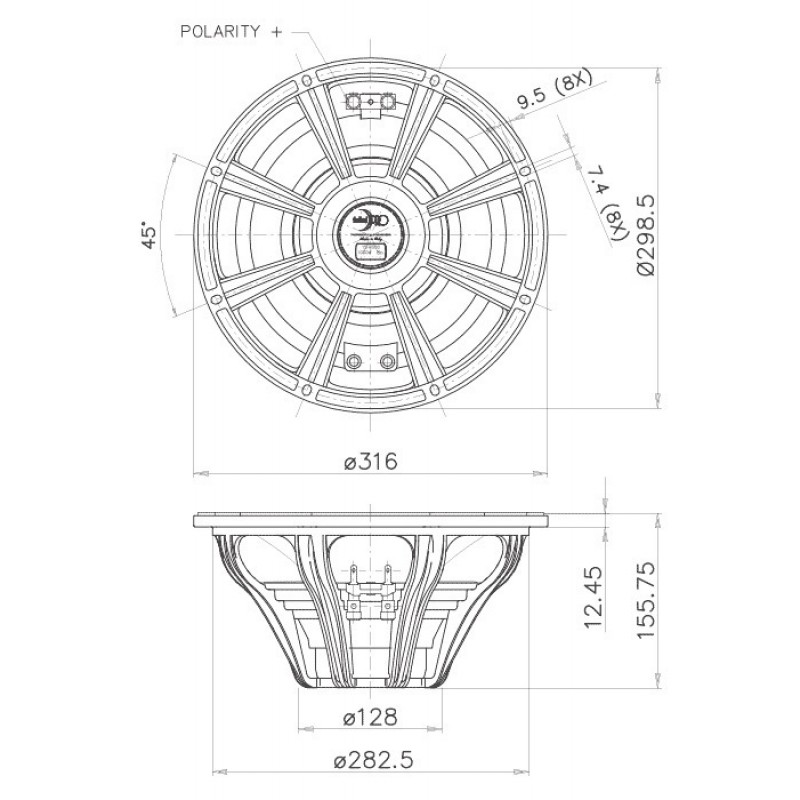

Nominal Specifications


  • Nominal Diameter - 300 mm (12 in)
  • Overall Diameter - 316 mm (12.44 in)
  • Bolt Circle Diameter - 298.5 mm (11.75 in)
  • Baffle Cutout Diameter - 284 mm (11.18 in)
  • Depth - 155.75 mm (6.13 in)
  • Flange and Gasket Thickness - 12.45 mm (0.49 in)
  • Net Weight - 3.9 Kg (8.6 lb)
  • Shipping Box(Single Carton Box) - 350 x 346 x 216 mm (13.8 x 13.6 x 8.5 in)
  • Shipping Weight - 5 Kg (11.0 lb)

Technical Parameters



  • Nominal Impedance - 8 Ohm
  • Minimum Impedance - 6.4 Ohm
  • AES Power Handling (1) - 500 W
  • Maximum Power Handling (2) - 1000 W
  • Sensitivity (1W/1m) - 97 dB

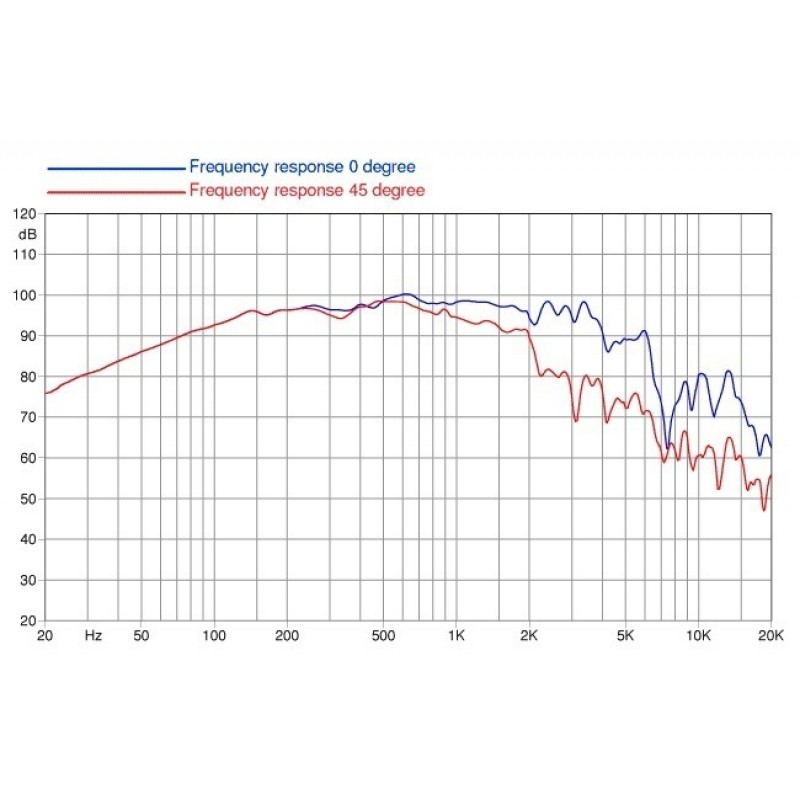

  • Frequency Range - 45-4000 Hz
  • Voice Coil Diameter - 77 mm (3 in)
  • Winding Material - Al
  • Former Material - Glass Fiber
  • Winding Depth - 18.5 mm (0.73 in)
  • Magnetic Gap Depth - 10.5 mm (0.41 in)
  • Flux Density - 1.2 T
  • Magnet - Neodymium Slug
  • Basket Material - Aluminum
  • Demodulation - No
  • Cone Surround (3) - M-Roll
  • NET Air Volume filled by Loudspeaker - 2.3 l (0.081 ft^3)
  • Spider Profile - 1x variable height waves



Thiele and small parameters



  • Fs - 45 Hz
  • Re - 5.1 Ohm
  • Qes - 0.26
  • Qms - 6.9
  • Qts - 0.25
  • Vas - 75.1 l (2.65 ft^3)
  • Sd - 487 cm^2 (75.49 in^2)
  • Xmax (4) - 7.50 mm
  • Xdamage (5) - 21.55 mm
  • Mms - 56.0 g
  • Bl - 17.5 N/A
  • Le - 0.83 mH
  • Mmd - 50.0 g
  • Cms - 0.22 mm/N
  • Rms - 2.29 Kg/s
  • Eta Zero - 2.50 %
  • EBP - 173 Hz
