Faital Pro 10FH520 10" Speaker Driver 600W 8 Ohm

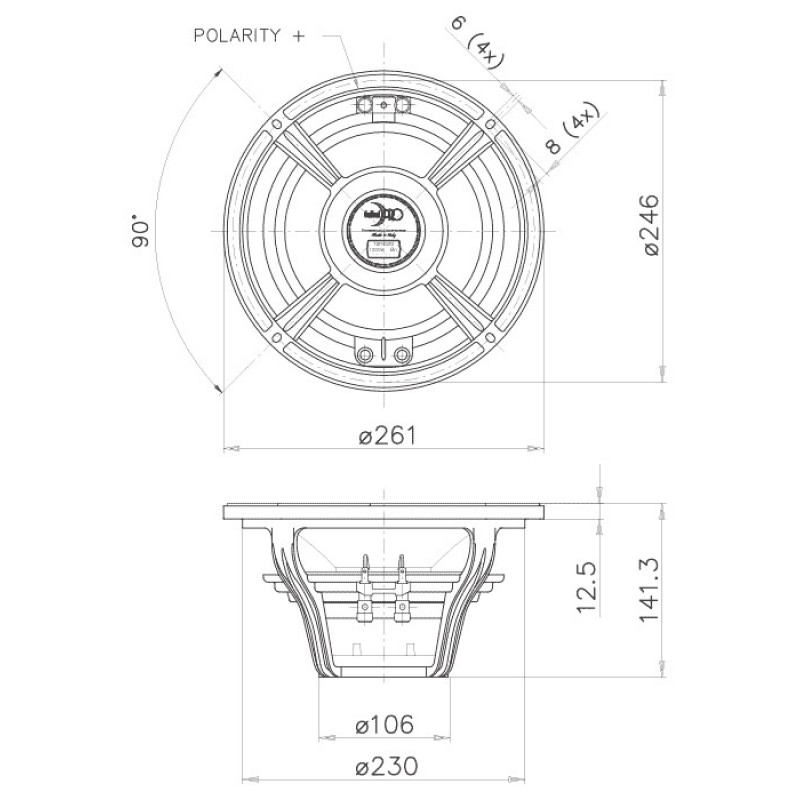

Nominal Specifications
- Nominal Diameter - 250 mm (10 in)
- Overall Diameter - 261 mm (10.28 in)
- Bolt Circle Diameter - 246 mm (9.69 in)
- Baffle Cutout Diameter - 232 mm (9.13 in)
- Depth - 141.3 mm (5.56 in)
- Flange and Gasket Thickness - 12.5 mm (0.49 in)
- Net Weight - 3.7 Kg (8.2 lb)
- Shipping Box(Single Carton Box) - 294 x 290 x 203 mm (11.6 x 11.4 x 8.0 in)
- Shipping Weight - 4.3 Kg (9.5 lb)
Technical Parameters
- Nominal Impedance - 8 Ohm
- Minimum Impedance - 6 Ohm
- AES Power Handling (1) - 600 W
- Maximum Power Handling (2) - 1200 W
- Sensitivity (1W/1m) - 97 dB
- Frequency Range - 60-4000 Hz
- Voice Coil Diameter - 77 mm (3 in)
- Winding Material - Al
- Former Material - Glass Fiber
- Winding Depth - 18.5 mm (0.71 in)
- Magnetic Gap Depth - 12 mm (0.47 in)
- Flux Density - 1.1 T
- Magnet - Neodymium Slug
- Basket Material - Aluminum
- Demodulation - Aluminum Ring
- Cone Surround (3) - Triple Roll
- NET Air Volume filled by Loudspeaker - 1.7 l (0.060 ft^3)
- Spider Profile - 1x variable height waves
Thiele and small parameters
- Fs - 60 Hz
- Re - 5.1 Ohm
- Qes - 0.30
- Qms - 11.1
- Qts - 0.29
- Vas - 20.5 l (0.72 ft^3)
- Sd - 321 cm^2 (49.75 in^2)
- Xmax (4) - 7.25 mm
- Xdamage (5) - 19.5 mm
- Mms - 50.3 g
- Bl - 18 N/A
- Le - 0.9 mH
- Mmd - 47.0 g
- Cms - 0.14 mm/N
- Rms - 1.7 Kg/s
- Eta Zero - 1.44 %
- EBP - 200 Hz
