Cere mai multe informatii despre Faital Pro 10FH500 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.
Preţ:
703,05 Lei
Fără TVA: 590,80 Lei
Dep. Ext. - livrare 10-14 zile
-
+
Faital Pro 10FH500 10" Speaker Driver 500W 8 Ohm

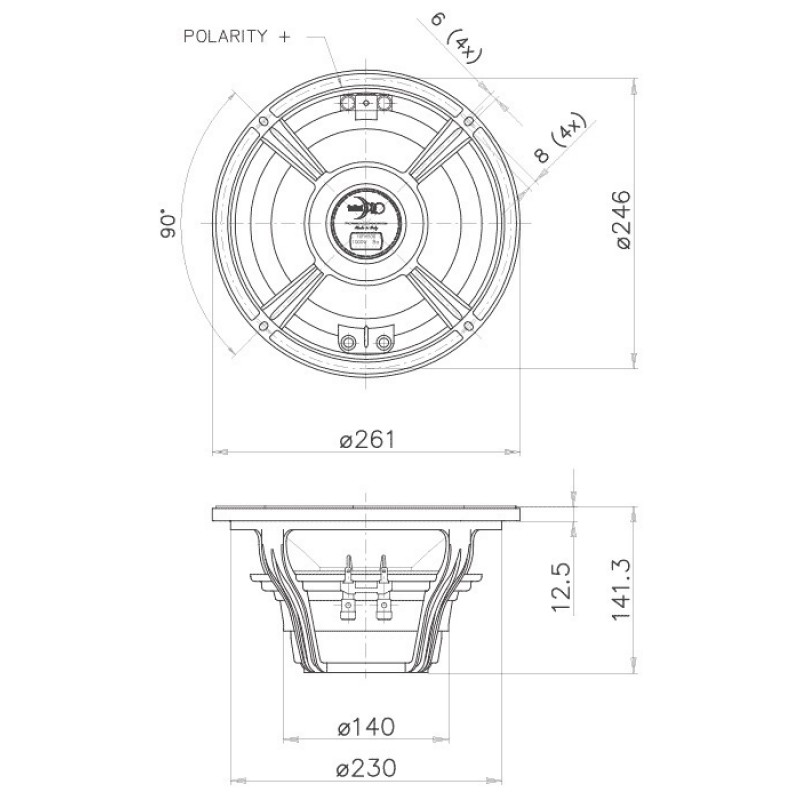

Nominal Specifications
- Nominal Diameter - 250 mm (10 in)
- Overall Diameter - 261 mm (10.28 in)
- Bolt Circle Diameter - 246 mm (9.69 in)
- Baffle Cutout Diameter - 232 mm (9.13 in)
- Depth - 141.3 mm (5.56 in)
- Flange and Gasket Thickness - 12.5 mm (0.49 in)
- Net Weight - 3.4 Kg (7.5 lb)
- Shipping Box(Single Carton Box) - 294 x 290 x 203 mm (11.6 x 11.4 x 8.0 in)
- Shipping Weight - 4 Kg (8.8 lb)
Technical Parameters
- Nominal Impedance - 8 Ohm
- Minimum Impedance - 6.4 Ohm
- AES Power Handling (1) - 500 W
- Maximum Power Handling (2) - 1000 W
- Sensitivity (1W/1m) - 96 dB
- Frequency Range - 60-4000 Hz
- Voice Coil Diameter - 77 mm (3 in)
- Winding Material - Al
- Former Material - Glass Fiber
- Winding Depth - 18.5 mm (0.73 in)
- Magnetic Gap Depth - 10.5 mm (0.41 in)
- Flux Density - 1.2 T
- Magnet - Neodymium Slug
- Basket Material - Aluminum
- Demodulation - No
- Cone Surround (3) - Triple Roll
- NET Air Volume filled by Loudspeaker - 1.6 l (0.057 ft^3)
- Spider Profile - 1x constant height waves
Thiele and small parameters
- Fs - 60 Hz
- Re - 5.1 Ohm
- Qes - 0.28
- Qms - 3.3
- Qts - 0.26
- Vas - 22.9 l (0.81 ft^3)
- Sd - 328 cm^2 (50.84 in^2)
- Xmax (4) - 7.50 mm
- Xdamage (5) - 12.5 mm
- Mms - 47.0 g
- Bl - 17.9 N/A
- Le - 0.85 mH
- Mmd - 44.8 g
- Cms - 0.15 mm/N
- Rms - 5.4 Kg/s
- Eta Zero - 1.70 %
- EBP - 214 Hz
