Eminence Alpha 6
  • Eminence Alpha 6
  • Eminence Alpha 6
  • Eminence Alpha 6

Cere mai multe informatii despre Eminence Alpha 6 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 245,00 Lei
Fără TVA: 205,88 Lei
la comanda - 4 Saptamani
Producător: Eminence
Cod produs: Eminence Alpha 6
-
+

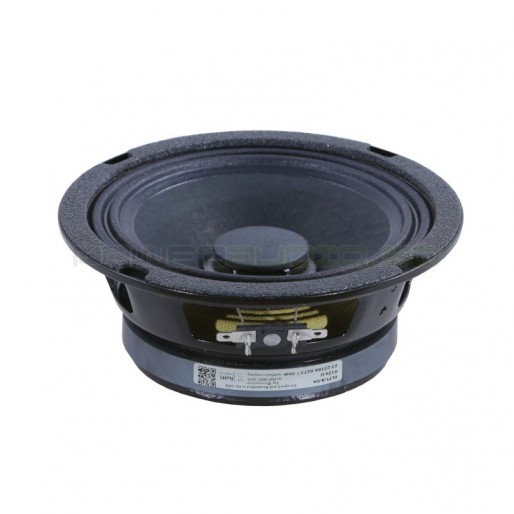

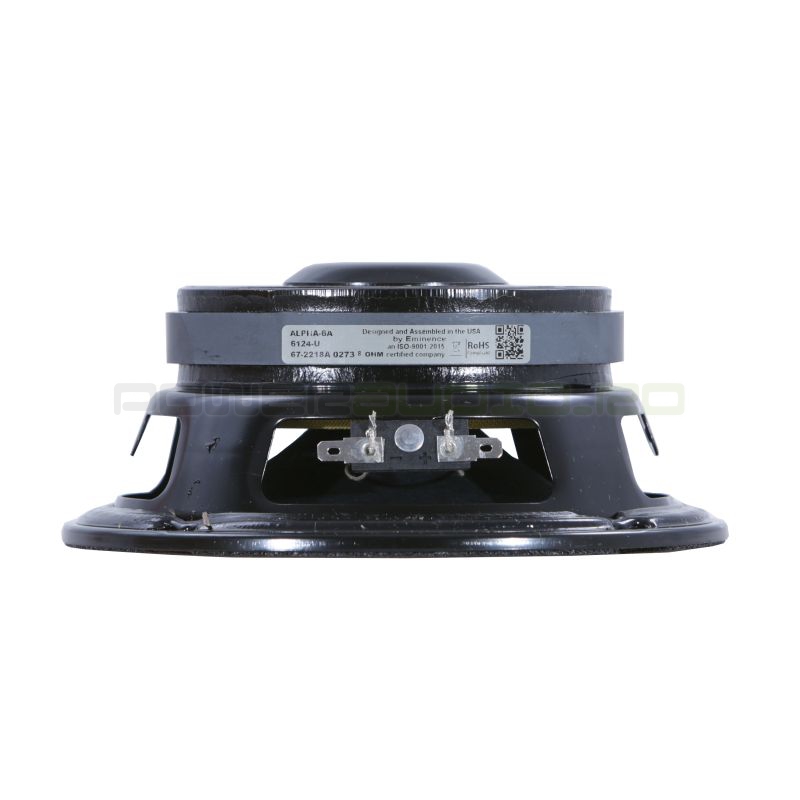

Eminence Alpha 6 100W 8 Ohm 6" Loudspeaker Driver



Recommended for professional audio mid-range applications in a sealed cabinet, or as a mid-bass in a vented satellite enclosure.


Specifications:


  • Nominal Basket Diameter 6.5", 165mm
  • Nominal Impedance* 8 ohms
  • Power Rating**: Watts 100W, Music Program 200W
  • Resonance 118Hz
  • Usable Frequency Range 85Hz - 6kHz
  • Sensitivity*** 93.6dB
  • Magnet Weight 20 oz.
  • Gap Height 0.25", 6.35mm
  • Voice Coil Diameter 1.5", 38.1mm



Thiele & Small Parameters:


  • Resonant Frequency (fs) 118Hz
  • DC Resistance (Re) 7.2
  • Coil Inductance (Le) 0.19mH
  • Mechanical Q (Qms) 5.68
  • Electromagnetic Q (Qes) 0.6
  • Total Q (Qts) 0.54
  • Compliance Equivalent Volume (Vas) 5.8 liters / 0.2 cu.ft.
  • Peak Diaphragm Displacement Volume (Vd) 44cc
  • Mechanical Compliance of Suspension (Cms) 0.26mm/N
  • BL Product (BL) 8 T-M
  • Diaphragm Mass Inc. Airload (MMs) 7 grams
  • Efficiency Bandwidth Product (EBP) 197
  • Maximum Linear Excursion (Xmax) 3.5mm
  • Surface Area of Cone (Sd) 126.7 cm2
  • Maximum Mechanical Limit (Xlim) 4mm



Mounting Information:


  • Recommended Enclosure Volume: Sealed 2.8-5.7 liters / 0.1-0.2 cu.ft., Vented 3.4-15.6 liters / 0.12-0.55 cu.ft.
  • Driver Volume Displaced 25 cu.in. / 0.41 liters
  • Overall Diameter 6.59", 167.4mm
  • Baffle Hole Diameter 5.69", 144.5mm
  • Front Sealing Gasket Fitted as standard
  • Rear Sealing Gasket Fitted as standard
  • Mounting Holes Diameter 0.23", 5.7mm
  • Mounting Holes B.C.D. 6.06", 154mm
  • Depth 2.8", 71mm
  • Net Weight 4.1 lbs, 1.9 kg
  • Shipping Weight 4.8 lbs, 2.2 kgs



Materials of Construction:


  • Coil Construction Copper voice coil
  • Coil Former Polyimide former
  • Magnet Composition Ferrite magnet
  • Core Details Vented and extended core
  • Basket Materials Pressed steel basket
  • Cone Composition Paper Cone
  • Cone Edge Composition Cloth cone edge
  • Dust Cap Composition Solid composition paper dust cap
