Cere mai multe informatii despre Eminence Alpha 15A la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 699,00 Lei
Fără TVA: 587,39 Lei
2 bucati in stoc
Producător: Eminence
Cod produs: 13812
-
+
Adaugă in Wishlist Compară produs
0 opinii 0 opinii Spune-ţi opinia
Etichete: eminence alpha 15 difuzoare professioanle difuzor eminence eminence eminence woofer difuzor 15 inch difuzor eminence 15" difuzor bass midbass

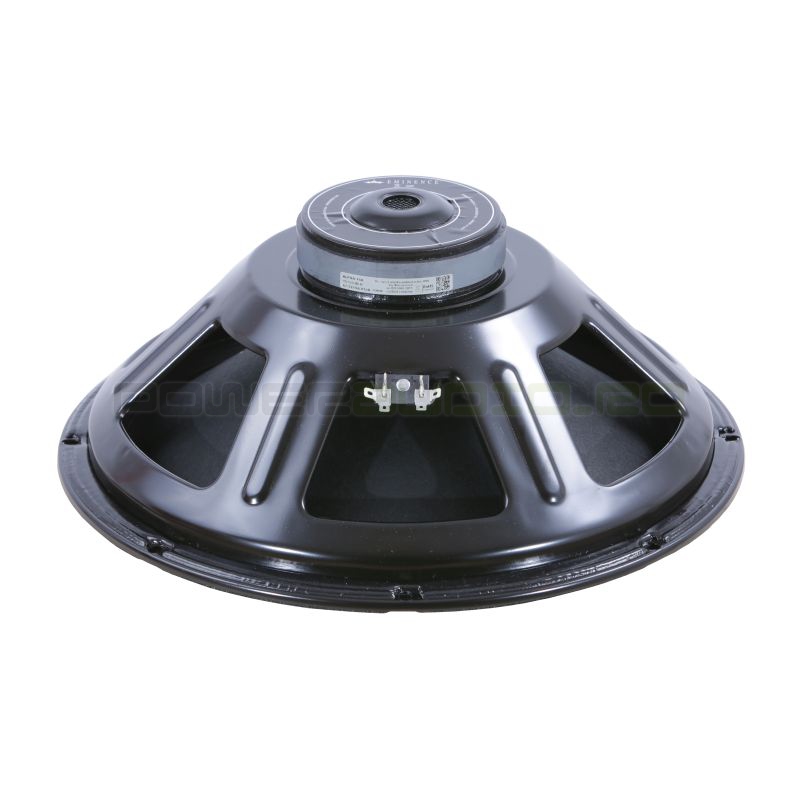

Eminence Alpha 15 - 200W 15" Driver 8 ohm



The Eminence Alpha 15 is ideal for use as a woofer in lower power 2-way systems.

SPECIFICATION

  • Nominal Basket Diameter 15", 381mm
  • Nominal Impedance* 8 ohms
  • Power Rating
  • Watts 200W
  • Music Program 400W
  • Resonance 41Hz
  • Usable Frequency Range 46Hz-3.5kHz
  • Sensitivity*** 97dB/W@1m
  • Magnet Weight 25 oz.
  • Gap Height 0.25", 6.35mm
  • Voice Coil Diameter 1.5", 38.1mm


THIELE & SMALL PARAMETERS

  • Resonant Frequency (fs) 41Hz
  • DC Resistance (Re) 5.88
  • Coil Inductance (Le) 0.84mH
  • Mechanical Q (Qms) 7.23
  • Electromagnetic Q (Qes) 1.53
  • Total Q (Qts) 1.26
  • Compliance Equivalent Volume (Vas) 260.0 liters / 9.2 cu.ft.
  • Peak Diaphragm Displacement Volume (Vd) 325cc
  • Mechanical Compliance of Suspension (Cms) 0.25mm/N
  • BL Product (BL) 7.7 T-M
  • Diaphram Mass inc. Airload (Mms) 59 grams
  • Efficiency Bandwidth Product (EBP) 27
  • Maximum Linear Excursion (Xmax) 3.8mm
  • Surface Area of Cone (Sd) 856.3 cm2
  • Maximum Mechanical Limit (Xlim) 8.4mm


MOUNTING INFORMATION

  • Recommended Enclosure
  • Sealed 71-85 liters/2.5-3 cu.ft.
  • Vented 106-177 liters/3.75-6.25 cu.ft.
  • Overall Diameter 15.15", 384.8mm
  • Baffle Hole Diameter 13.77", 349.6mm
  • Magnet diameter 129mm
  • Front Sealing Gasket Fitted as standard
  • Rear Sealing Gasket Fitted as standard
  • Mounting Holes Diameter 0.25", 6.4mm
  • Mounting Holes B.C. D. 14.56", 369.9mm
  • Depth 148mm, 5.83"
  • Net Weight 6.7 lbs., 3 kg
  • Shipping Weight 8.8 lbs., 4 kg


MATERIALS OF CONSTRUCTION

  • Coil Construction Copper voice coil
  • Coil Former Polyimide former
  • Magnet Composition Ferrite magnet
  • Core Details Vented and extended core
  • Basket Materials Pressed steel basket
  • Cone Composition Paper Cone
  • Cone Edge Composition Cloth cone edge
  • Dustcap Composition Solid composition paper dust cap
