Cere mai multe informatii despre Oberton 18XB1600 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 1.750,00 Lei
Fără TVA: 1.470,59 Lei
1 bucati in stoc
Producător: Oberton
Cod produs: 12818
-
+

Application : Power bass

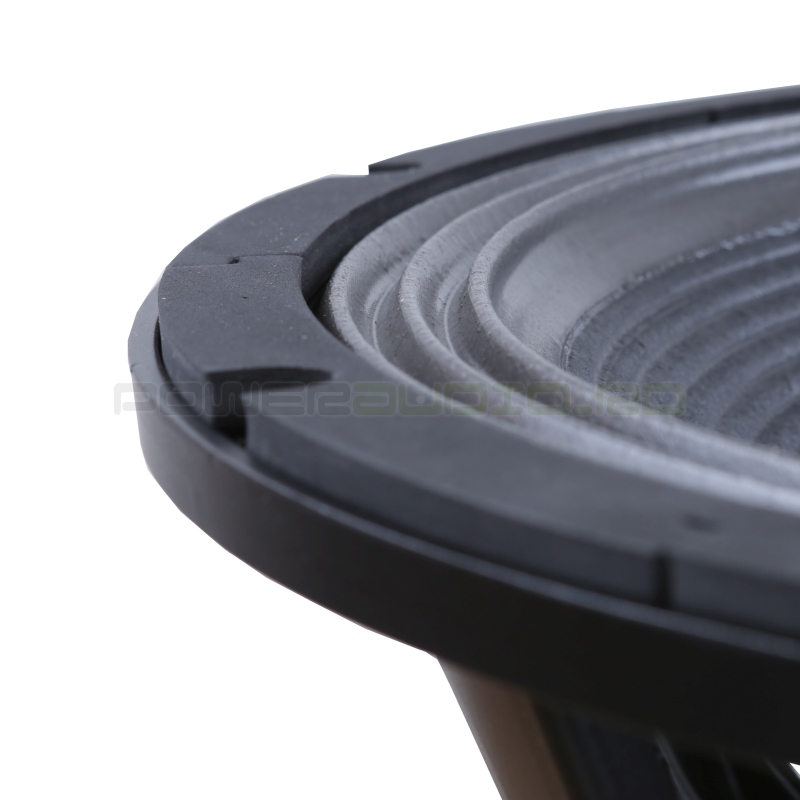

The 18XB1600 ferrite bass loudspeaker is specially designed to deliver high impact bass response, with exceptional high power capacity. It incorporates an 4.5" sandwich voice coil, double silicone spider assembly, paper cone with Kevlar and Glass fibers and die cast vented aluminium frame. Powerful, vented magnetic structure which reduces power compression with double demodulating rings. The result is high efficient transducer for bass applications, with the ability to handle high excursion with low distortion and reduced thermal power compression.



SPECIFICATIONS

Nominal Diameter
Impedance
Minimum Impedance
Power Capacity AES ¹
Program Power ²
Sensitivity
Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
V.C. Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density

18"/461 inch/mm
8 Ohm
6.65 Ohm
1600 W
3200 W
97 dB/W/m
35 - 1000 Hz
115 mm (4.5")
Copper
Glassfiber
32 mm
14 mm
paper with Kevlar and glass fibers
Die cast aluminium
Ferrite
1.10 T

THIELE-SMALL PARAMETERS

Fs
Qms
Qes
Qts
Vas
Mms
Re
Sd
Xmax*
Cms
BL
Le at 1kHz

32.5 Hz
8.74
0.287
0.278
267 Litres
231 grams
5.3 Ohms
1158 cm2
± 12.5 mm
0.104 mm/N
29.6 T.m
1.46 mH

1. AES standard. Power is calculated on rated minimum impedance. Measurement is in 180 L box enclosure tuned 43 Hz using a 40-400 Hz band limited pink noise test signal applied continuously for 2 hours.
2. Program power is defined as 3db greater than AES Power Capacity.

* Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.

MOUNTING INFORMATION

Overall Diameter
Baffle Hole Diameter
Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight

461 mm
417 mm
8 eliptic 7 x 8,5 mm
438/441 mm
208.5 mm
16.8 kg
