Oberton 18XB700
  • Oberton 18XB700
  • Oberton 18XB700

Cere mai multe informatii despre Oberton 18XB700 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 1.266,00 Lei
Fără TVA: 1.063,87 Lei
la comanda - 6 Saptamani
Producător: Oberton
Cod produs: Oberton 18XB700
Puncte de recompensă: 19

Application: High Power Bass

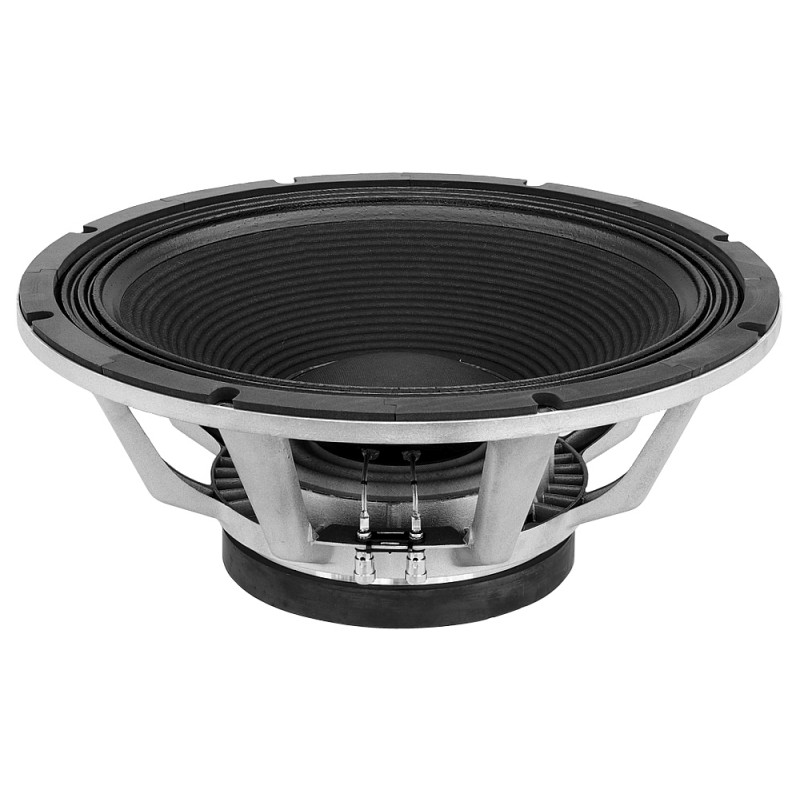

The 18XB700 bass loudspeaker is specially designed to deliver high impact bass response, with exceptional high power capacity. It incorporates an 4`` sandwich voice coil, kevlar paper cone, a powerful, vented 220 mm magnetic structure, die cast vented aluminium frame which reduced power compression, and double silicone spider assembly. This results in an incredible high efficient transducer for subwoofer applications, with the ability to handle high excursion with low distortion and reduced thermal power compression.




Nominal Diameter
Minimum Impedance
Power Capacity AES ¹
Program Power ²
Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
Voice Coil Winding Depth
Magnet Gap Depth
Cone Material
Flux Density

18"/461 inch/mm
8 Ohm
7.00 Ohm
1000 W
2000 W
(50-200 Hz) 98 dB/W/m
35 - 1000 Hz
100 mm
25 mm
14 mm
Kevlar paper
Die cast aluminium
0.97 T

Resonance Frequency
Mechanical Efficiency Factor (Qms)
Electrical Efficiency Factor (Qes)
Total Q (Qts)
Equivalent Air Volume (Vas )
Diaphragm mass ind. airload (Mms)
Voice Coil Resistance Re
Effective Diagram Area (Sd)
Peak Linear Displacement of Diaphragm (Xmax)*
Mechanical Compliance of Suspension (Cms)
BL Product (BL)
V.C. Inductance at 1 kHz (Le)

36.10 Hz
183.22 Litres
182.62 grams
5.17 Ohms
1110 cm2
± 9 mm
0.1064 mm/N
26.10 T.m
1.83 mH



1. AES standard. Power is calculated on rated minimum impedance. Measurement is in 180 L box enclosure tuned 43 Hz using a 40-400 Hz band limited pink noise test signal applied continuously for 2 hours.
2. Program power is defined as 3db greater than AES Power Capacity.

* Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.

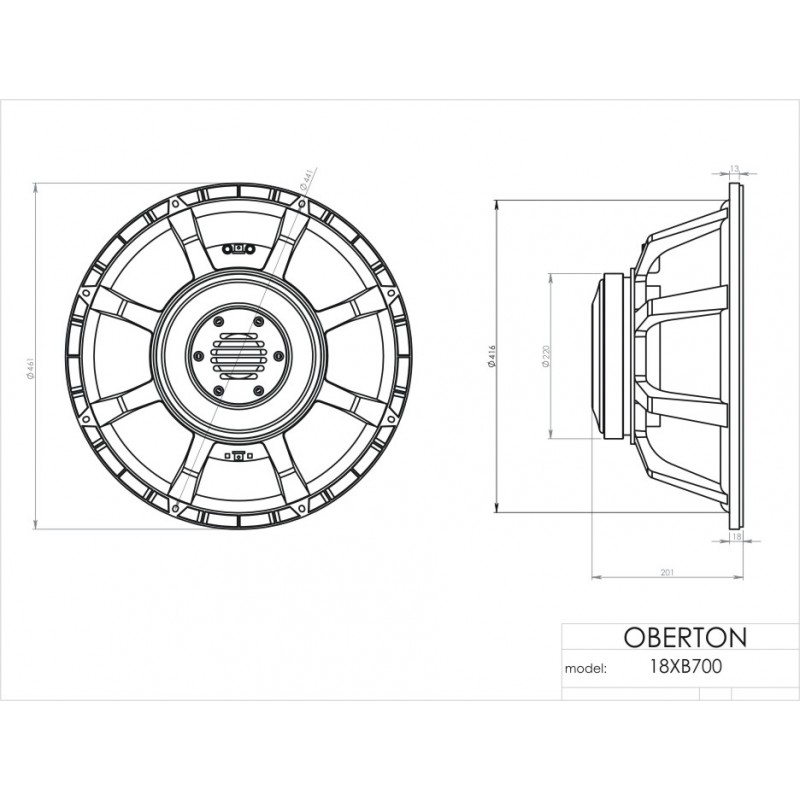

Overall Diameter
Baffle Hole Diameter
Number of Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight

461 mm
416 mm
8 eliptic 7 x 8,5 mm
438/441 mm
201 mm
12.55 kg

Descarca fisa tehnica click to download pdf
