Oberton 8MB201
  • Oberton 8MB201
  • Oberton 8MB201

Cere mai multe informatii despre Oberton 8MB201 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 375,00 Lei
Fără TVA: 315,13 Lei
8 bucati in stoc
Producător: Oberton
Cod produs: Oberton 8MB201
Puncte de recompensă: 5

Application : Midbass speaker

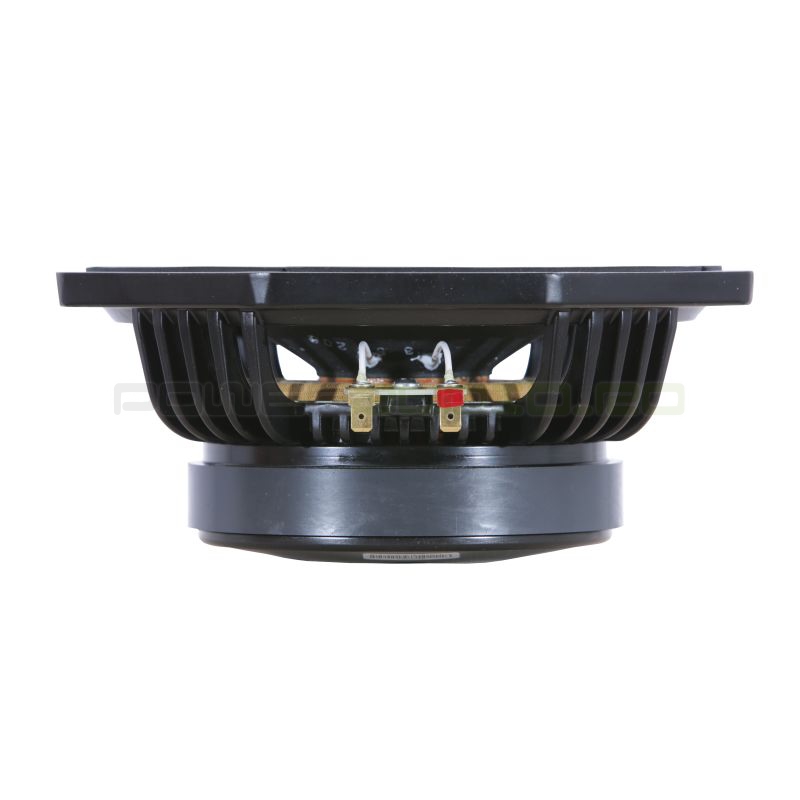

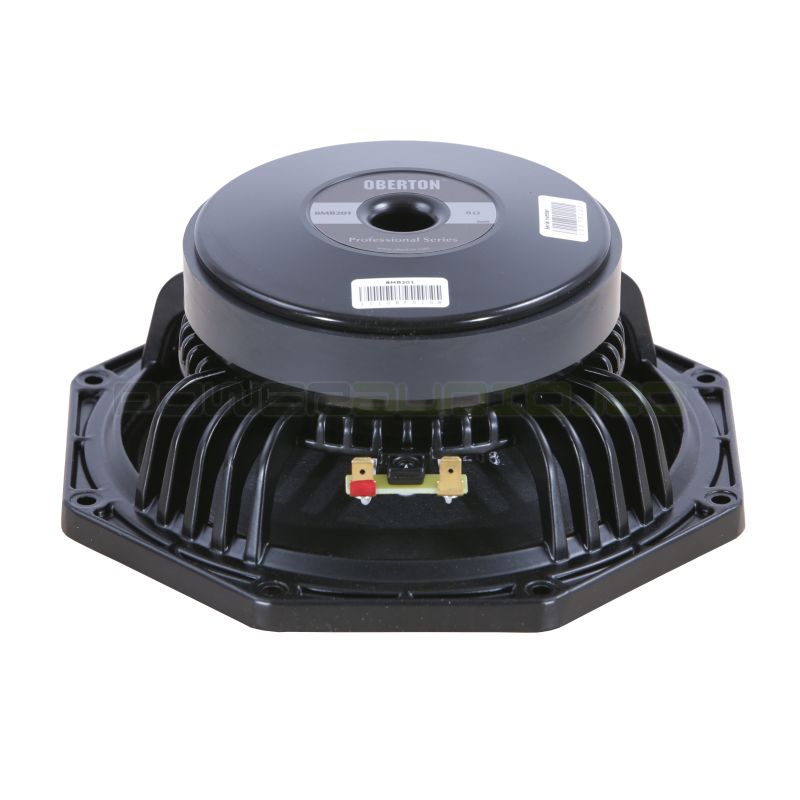

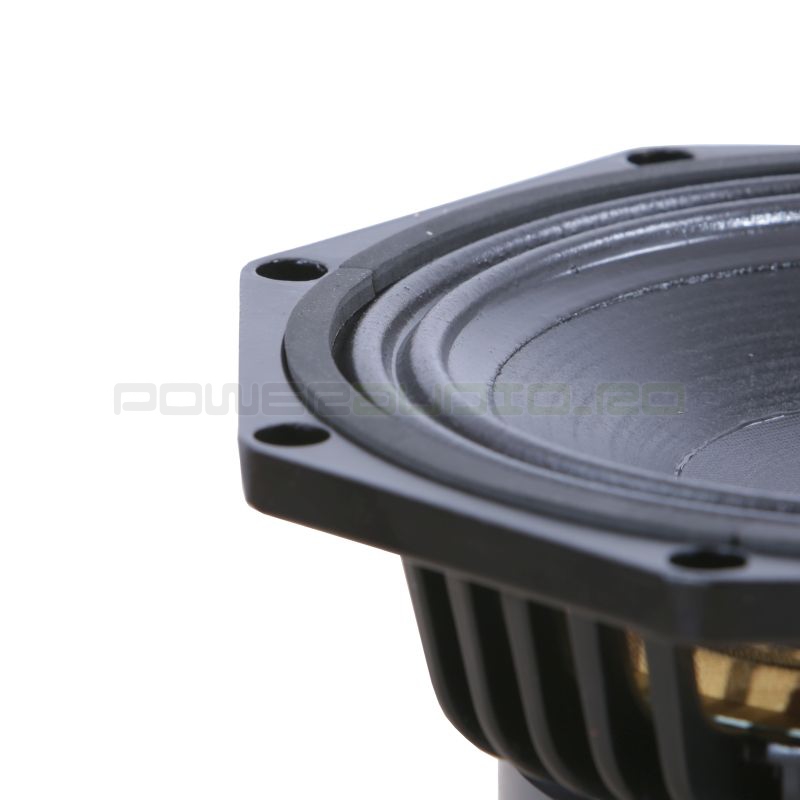

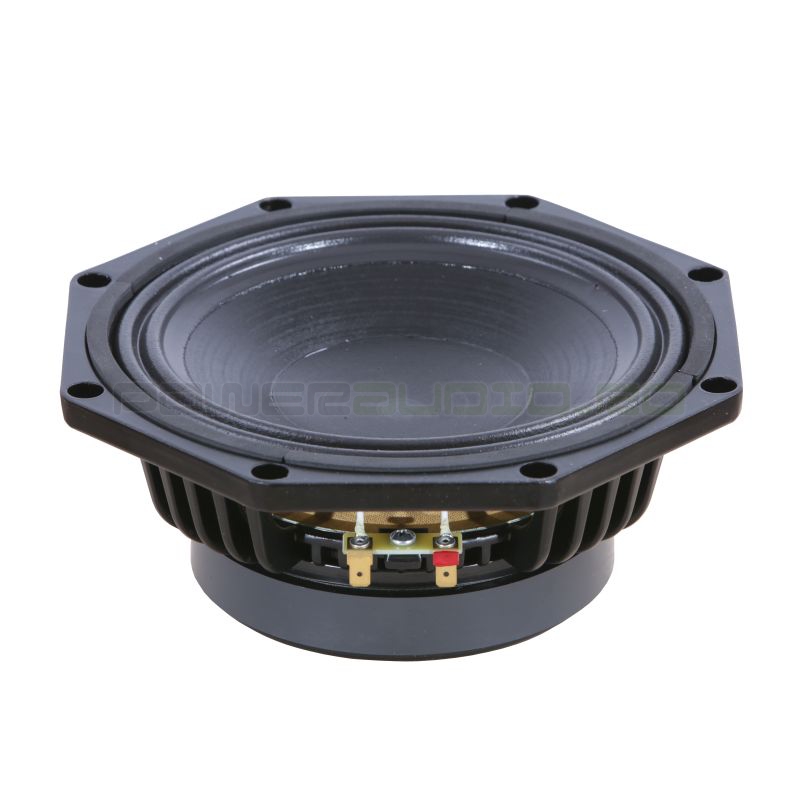

The 8MB201 loudspeaker is combining good efficiency and 200W power capacity with use of 51 mm voice coil. It features aluminium die cast frame, 134 mm magnet structure and curvilinear paper cone. 8MB201 is intended for use as a direct radiating mid-bass speaker for small 2-way boxes.





Nominal Diameter
Minimum Impedance
Power Capacity AES ¹
Program Power ²
Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
Voice Coil Winding Depth
Magnet Gap Depth
Cone Material
Flux Density

8 Ohm
6.72 Ohm
200 W
400 W
(200-2000 Hz) 93 dB/W/m
65 - 3000 Hz
51 mm
17.5 mm
7 mm
Paper with glassfiber
Die cast aluminium
1.35 T

Resonance Frequency
Mechanical Efficiency Factor (Qms)
Electrical Efficiency Factor (Qes)
Total Q (Qts)
Equivalent Air Volume (Vas )
Diaphragm mass ind. airload (Mms)
Voice Coil Resistance Re
Effective Diagram Area (Sd)
Peak Linear Displacement of Diaphragm (Xmax)*
Mechanical Compliance of Suspension (Cms)
BL Product (BL)
V.C. Inductance at 1 kHz (Le)

67.7 Hz
14.74 Liters
21 Grams
5.8 Ohms
200 cm²
+/- 7 mm
0.264 mm/N
12.54 T.m
0.80 mH



1. AES standard. Power is calculated on rated minimum impedance. Measurement is in 18 L box enclosure tuned 82 Hz using a 60 - 2000 Hz band limited pink noise test signal applied continuously for 2 hours.
2. Program power is defined as 3db greater than AES Power Capacity.

* Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.

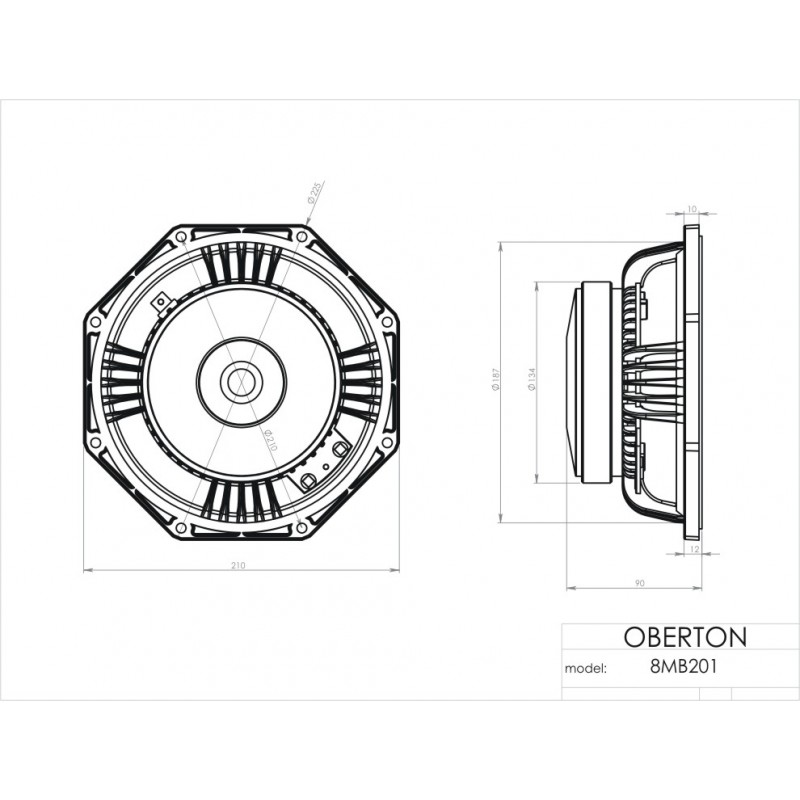

Overall Diameter
Baffle Hole Diameter
Number of Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight

225 mm
187 mm
8 with dia. 6.5 mm
210 mm
90 mm
3.22 kg

Descarca fisa tehnica click to download pdf
