Oberton 8M150
  • Oberton 8M150
  • Oberton 8M150

Cere mai multe informatii despre Oberton 8M150 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 366,00 Lei
Fără TVA: 307,56 Lei
la comanda - 6 Saptamani
Producător: Oberton
Cod produs: Oberton 8M150
Puncte de recompensă: 5
-
+

Application : Midrange speaker

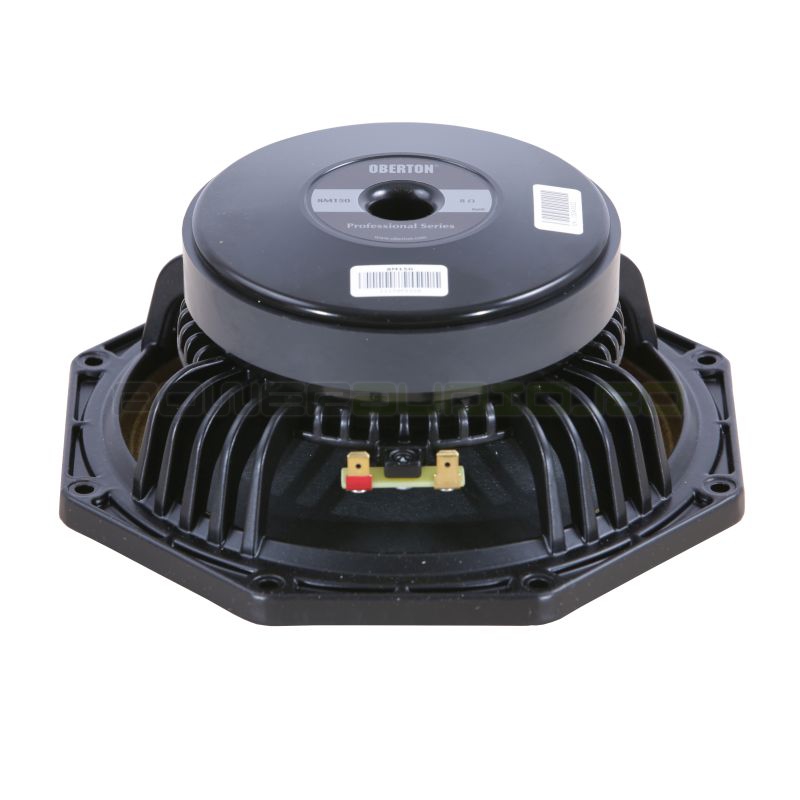

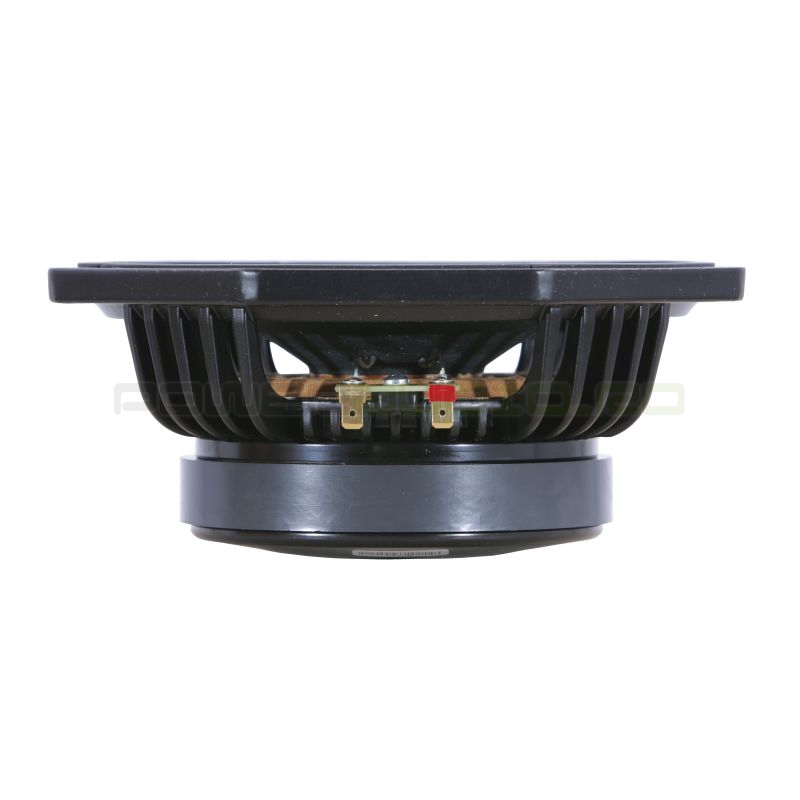

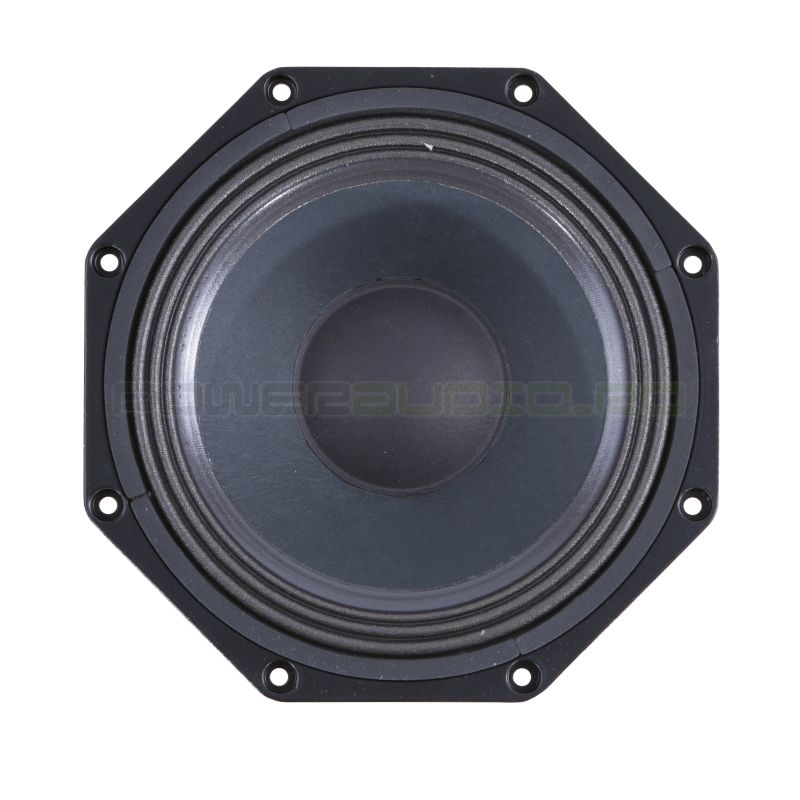

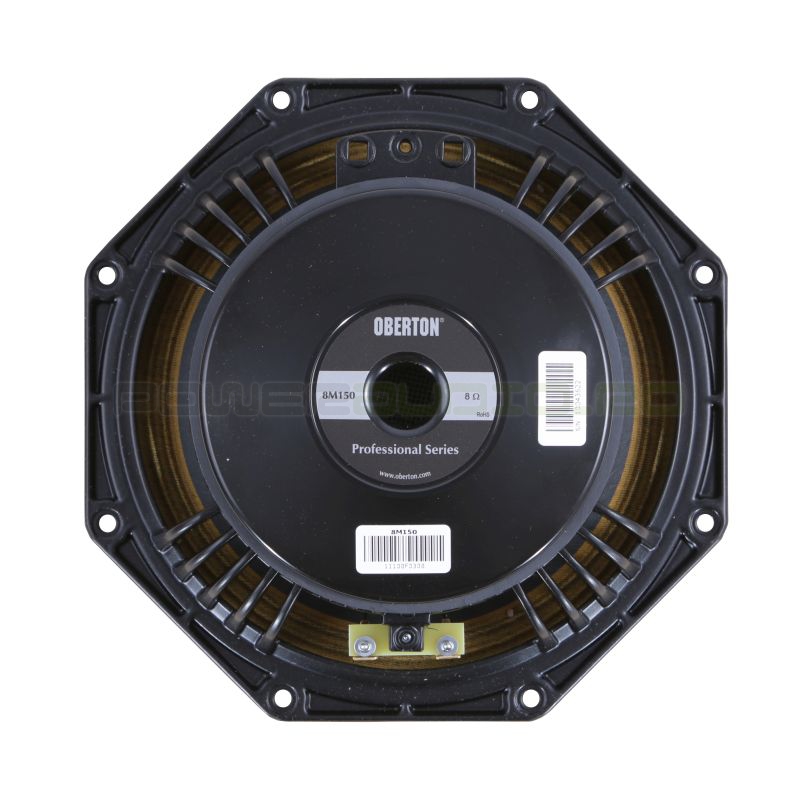

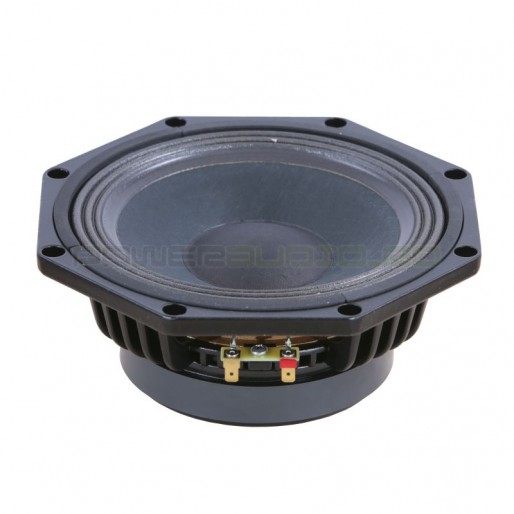

The 8M150 loudspeaker is combining good efficiency and 150W power capacity with use of 51 mm voice coil. It features aluminium die cast frame, 134 mm magnet structure and curvilinear paper cone. 8M150 is intended for use as a direct radiating midrange speaker in compact 3 way boxes.



SPECIFICATIONS



THIELE-SMALL PARAMETERS

Nominal Diameter
Impedance
Minimum Impedance
Power Capacity AES ¹
Program Power ²
Sensitivity
Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
Voice Coil Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density

8"/203mm
8 Ohm
5.83 Ohm
150 W
300 W
(200-4000 Hz) 98 dB/W/m
80 - 5000 Hz
51 mm
Aluminium
Kapton™
10 mm
7 mm
Paper
Die cast aluminium
Ferrite
1.35 T

Resonance Frequency
Mechanical Efficiency Factor (Qms)
Electrical Efficiency Factor (Qes)
Total Q (Qts)
Equivalent Air Volume (Vas )
Diaphragm mass ind. airload (Mms)
Voice Coil Resistance Re
Effective Diagram Area (Sd)
Peak Linear Displacement of Diaphragm (Xmax)*
Mechanical Compliance of Suspension (Cms)
BL Product (BL)
V.C. Inductance at 1 kHz (Le)

68.2 Hz
6.07
0.225
0.217
21.62 Litres
14.07 Grams
5.05 Ohms
202 cm²
+/- 3.25 mm
0.387 mm/N
11.62 T.m
0.74 mH

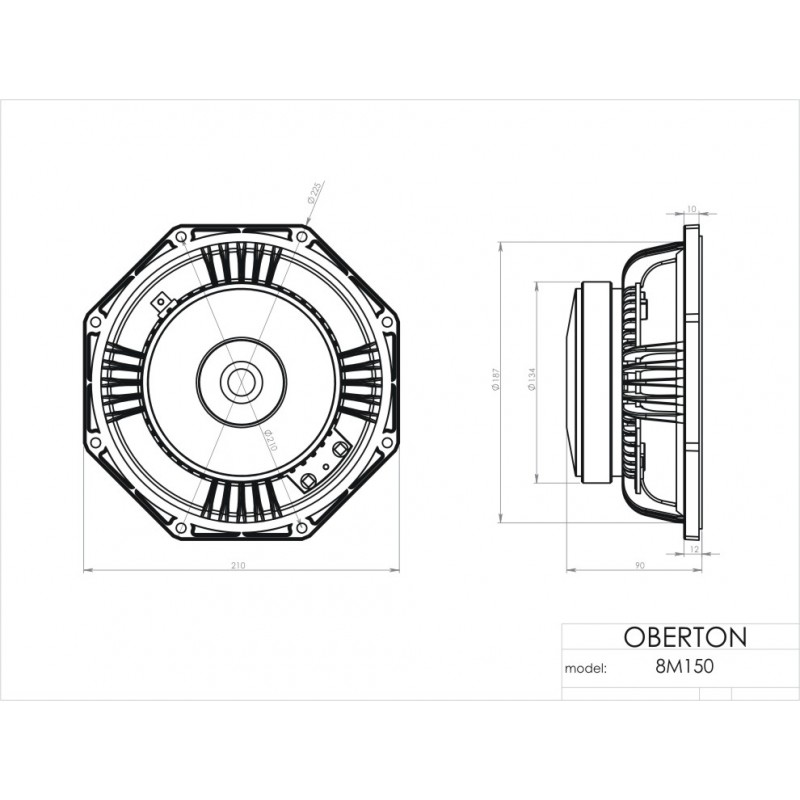

MOUNTING INFORMATION

1. AES standard. Power is calculated on rated minimum impedance. Measurement is in 18 L box enclosure tuned 82 Hz using a 60 - 2000 Hz band limited pink noise test signal applied continuously for 2 hours.
2. Program power is defined as 3db greater than AES Power Capacity.

* Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.

Overall Diameter
Baffle Hole Diameter
Number of Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight

225 mm
187 mm
8 with dia. 6.5 mm
210 mm
90 mm
3.25 kg


Descarca fisa tehnica click to download pdf
