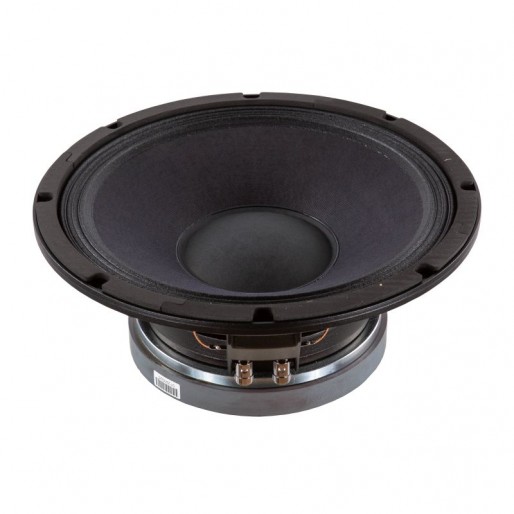

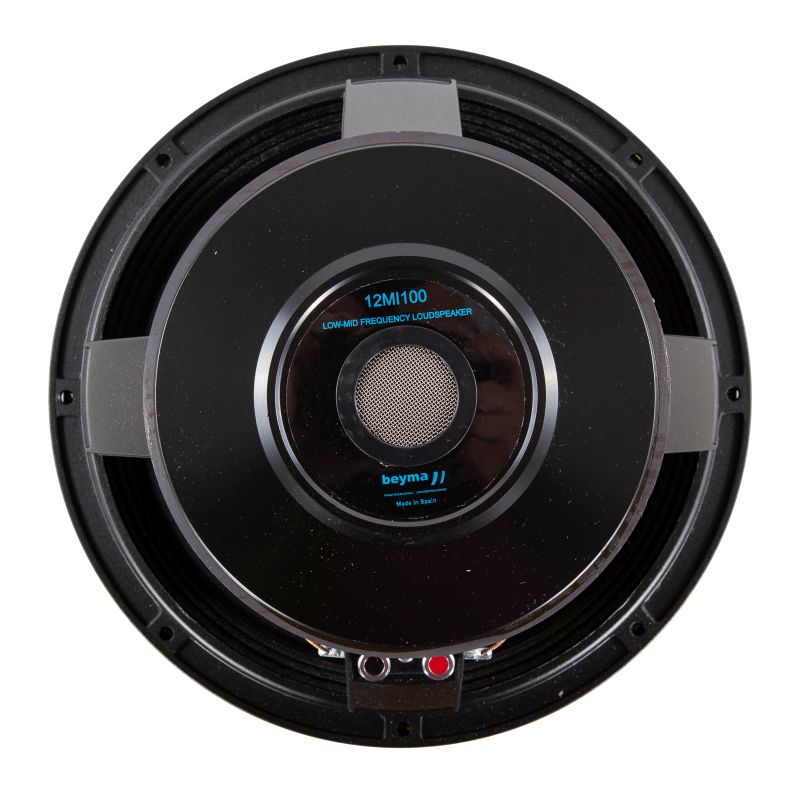

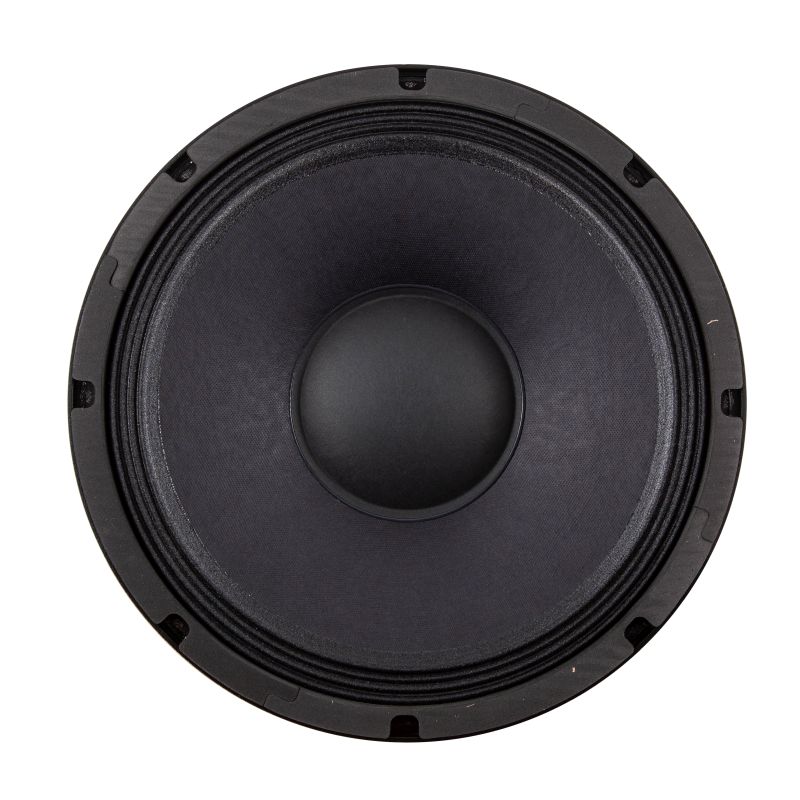

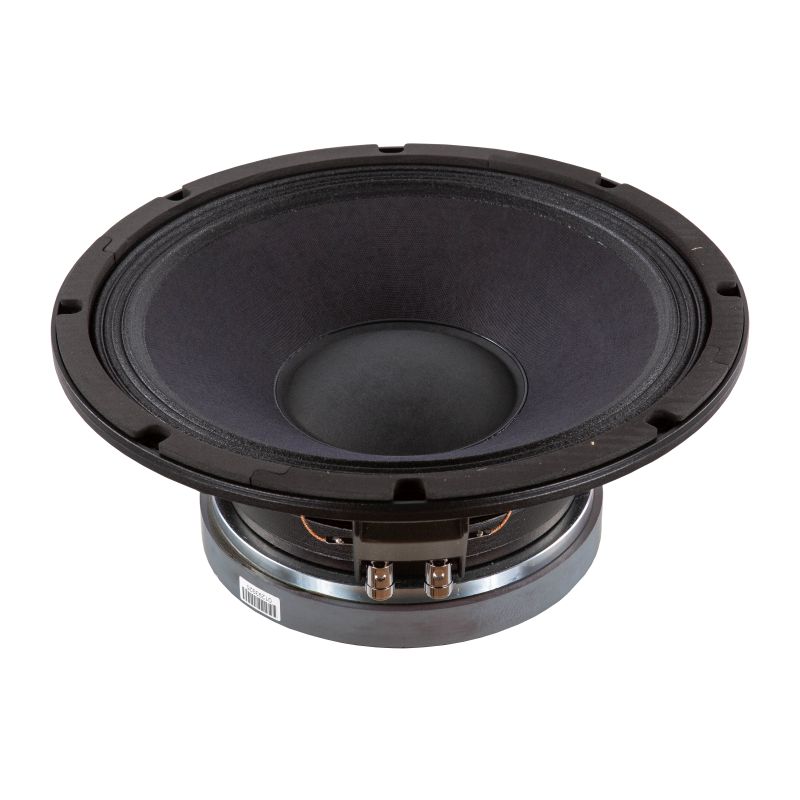

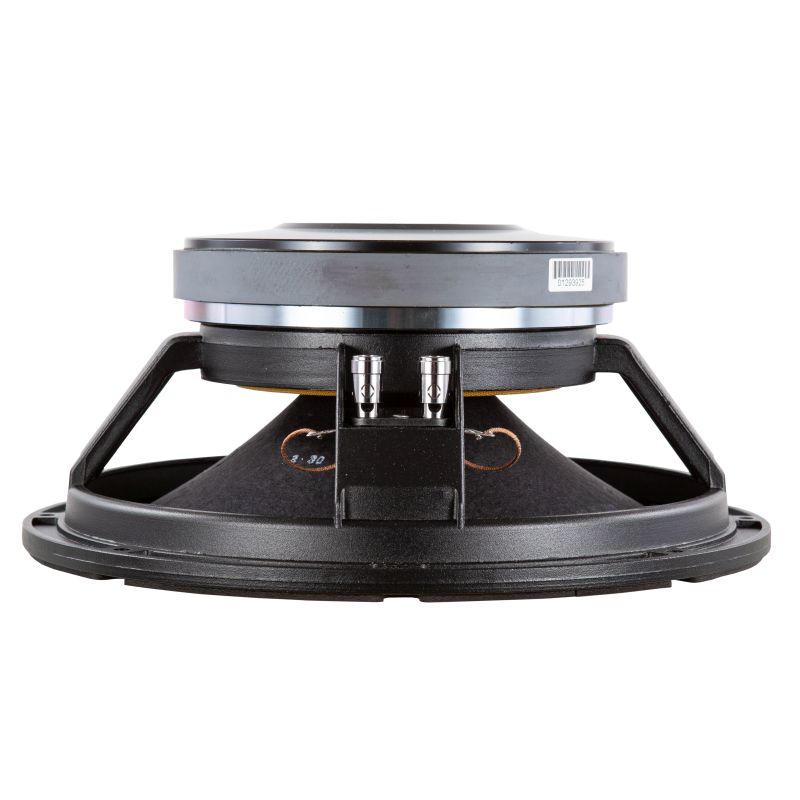

Beyma 12MI100 - 12" 450W 8 Ohm


This low-mid frequency transducer offers three main points of interest: a high efficiency (5.1 %), an extremely linear frequency response and a low harmonic distortion. These characteristics make it suitable for high quality sound reinforcement systems, especially for live applications. Moreover, its versatile design allows it to be used as the low-mid loudspeaker in a two ways system or as an strictly mid-frequency transducer in a three ways system. Beyond its frequency response advantages, this loudspeaker offers more: it takes profit of the improvements achieved in our low frequency-high power transducers. Thus, it incorporates a high quality voice coil and a large magnetic assembly to provide efficient heat dissipation. Thanks to this design concept of strongness, the 12 MI100 reaches a considerable power handling (450 w AES).



Key Features


  • Very high reference efficiency (5.1 %)
  • Extremely linear frequency response
  • Low harmonic distortion
  • 3" edgewound aluminium voice coil with polymide fiber glass former
  • Large magnetic assembly to provide efficient heat dissipation
  • Designed for high quality mid-frequency reproduction

Technical Specifications


  • Nominal diameter 300 mm. 12 in.
  • Rated impedance 8 ohms.
  • Minimum impedance 8 ohms.
  • Power capacity 450 w AES
  • Program power 900 w
  • Sensitivity 100 dB 2.83v @ 1m @ 2pi
  • Frequency range 40 - 4000 Hz
  • Voice coil diameter 77 mm. 3 in.
  • Magnetic assembly weight 6.5 kg. 14.2 lb.
  • BL Factor 21.6 N / A
  • Moving mass 0.047 kg.
  • Voice coil length 13.5 mm.
  • Air gap height 9.5 mm.
  • X Damage (peak to peak) 24 mm.
  • Net weight 7.2 kg 15.8 lb
  • Total weight 7.3 kg 16.06 lb
  • Magnet Material: Ferrite


Thiele Small Parameters:


  • Fs 58 Hz
  • Re 6.3 ohm
  • Qms 5.5
  • Qes 0.23
  • Qts 0.22
  • Vas 64 l
  • Cms 163 micro m / N
  • Rms 3.3 kg / s
  • Efficiency % 5.1
  • Sd 0.053 sq m
  • Xmax 2 mm
  • Vd 105 cm 3
  • Le @1 kHz 2.3 mH


Mounting Information


  • Overall diameter - 312 mm. 12.3 in.
  • Bolt circle diameter - 294.5 mm. 11.6 in.
  • Baffle cutout diameter: -
  • - Front mount - 277.5 mm. 10.9 in.
  • - Rear mount - 280 mm. 11.02 in.
  • Depth - 139 mm. 5.47 in.
  • Volume displaced by driver - 5.5 l 0.19 ft.3
  • Net weight - 7.2 kg. 15.8 lb.
  • Shipping weight - 8 kg. 17.6 lb.
