Oberton 8NB201
  • Oberton 8NB201
  • Oberton 8NB201
  • Oberton 8NB201
  • Oberton 8NB201
  • Oberton 8NB201
  • Oberton 8NB201
  • Oberton 8NB201
  • Oberton 8NB201

Cere mai multe informatii despre Oberton 8NB201 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 584,00 Lei
Fără TVA: 490,76 Lei
10 bucati in stoc
Producător: Oberton
Cod produs: Oberton 8NB201
Puncte de recompensă: 9

Application : Power midbass speaker

The 8NB201 is high efficiency, high power midbass neodymium loudspeaker , specially designed to use in compact bass reflex boxes. It features 51 mm cooper voice coil, aluminium die cast frame with powerful neodymium magnet structure, which achieved very light weight of the speaker.





Nominal Diameter
Minimum Impedance
Power Capacity AES ¹
Program Power ²
Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
Voice Coil Winding Depth
Magnet Gap Depth
Cone Material
Flux Density

8"/210 inch/mm
8 Ohm
6.40 Ohm
200 W
400 W
(200-2000 Hz) 95 dB/W/m
65 – 3000 Hz
51 mm
14 mm
7 mm
Paper with glassfiber
Die cast aluminium
1.25 T

Resonance Frequency
Mechanical Efficiency Factor (Qms)
Electrical Efficiency Factor (Qes)
Total Q (Qts)
Equivalent Air Volume (Vas )
Diaphragm mass ind. airload (Mms)
Voice Coil Resistance Re
Effective Diagram Area (Sd)
Peak Linear Displacement of Diaphragm (Xmax)*
Mechanical Compliance of Suspension (Cms)
BL Product (BL)
V.C. Inductance at 1 kHz (Le)

70.56 Hz
12.54 Litres
22.67 grams
5.27 Ohms
202 cm2
±5.25 mm
0.224 mm/N
14.41 T.m
0.96 mH



1. AES standard. Power is calculated on rated minimum impedance. Measurement is in 18 L box enclosure tuned 82 Hz using a 60-2000 Hz band limited pink noise test signal applied continuously for 2 hours.
2. Program power is defined as 3db greater than AES Power Capacity.

* Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.

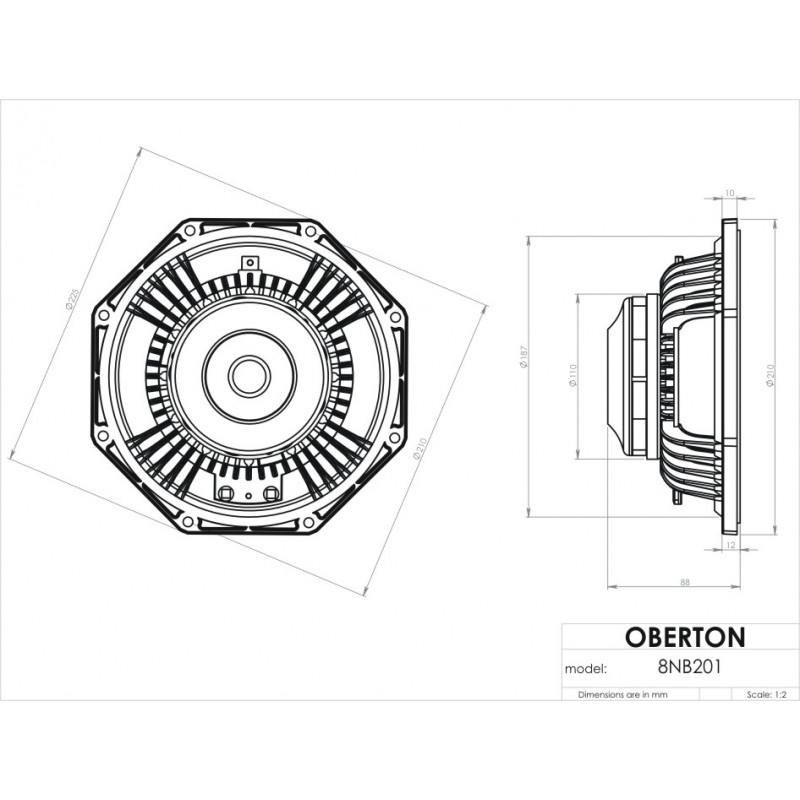

Overall Diameter
Baffle Hole Diameter
Number of Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight

225 mm
187 mm
8 with dia. 6.5 mm
210 mm
89 mm
2.38 kg

Descarca fisa tehnica click to download pdf
