RedCatt 15FHW - 8ohm

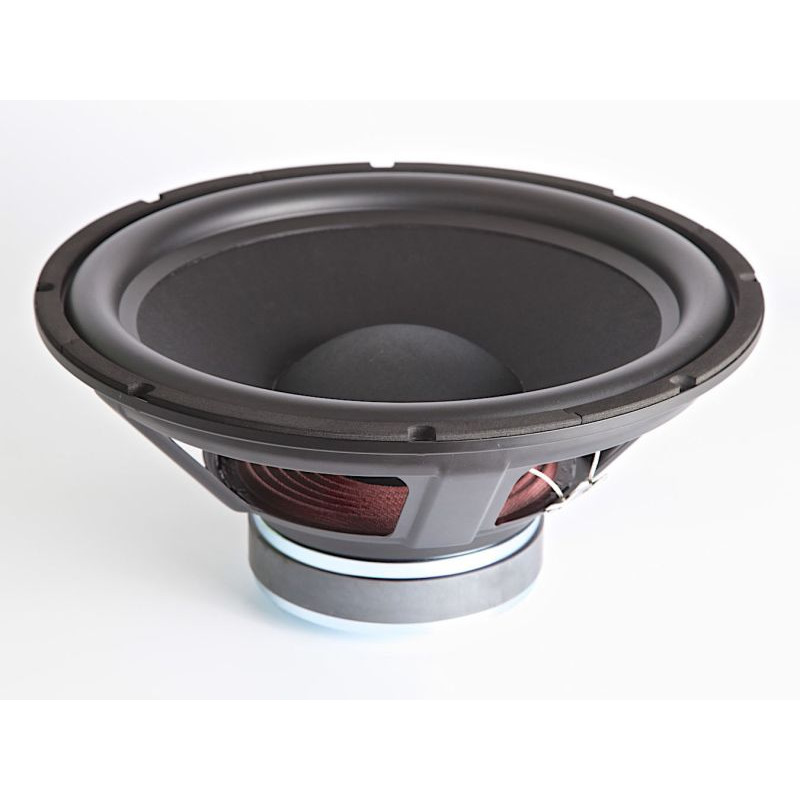

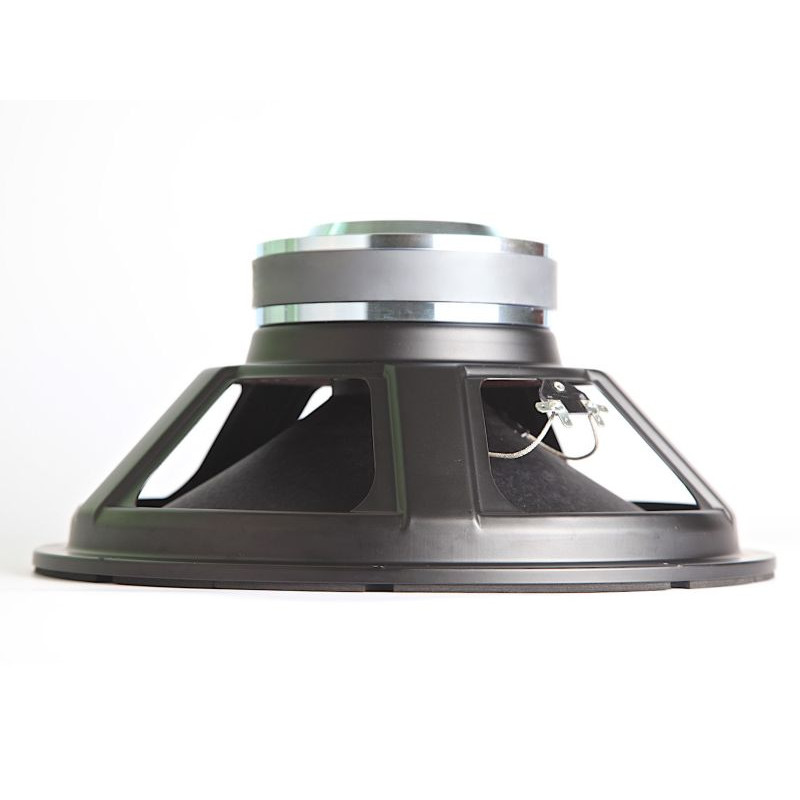

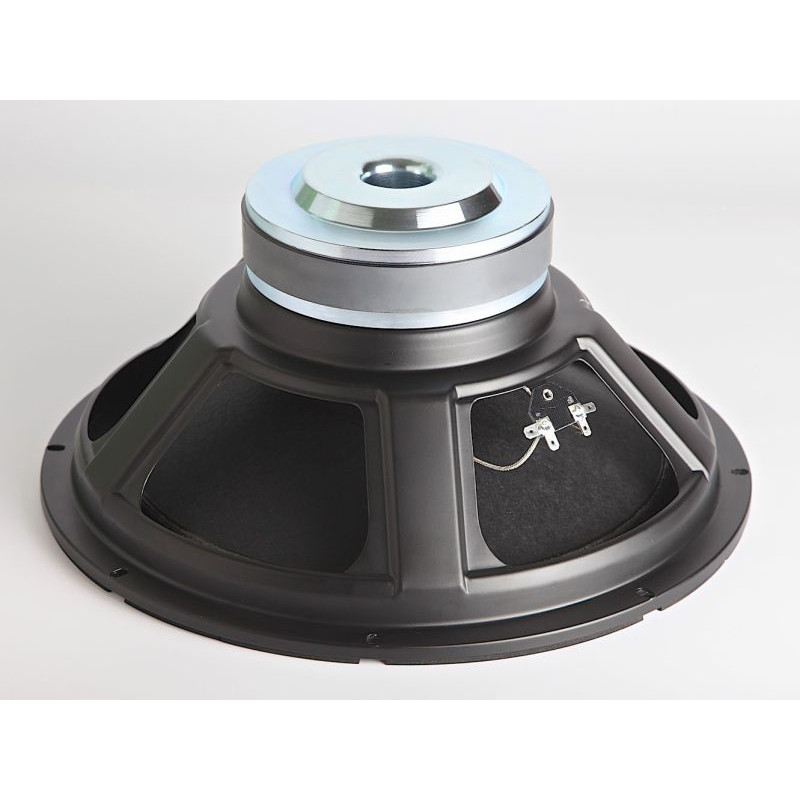

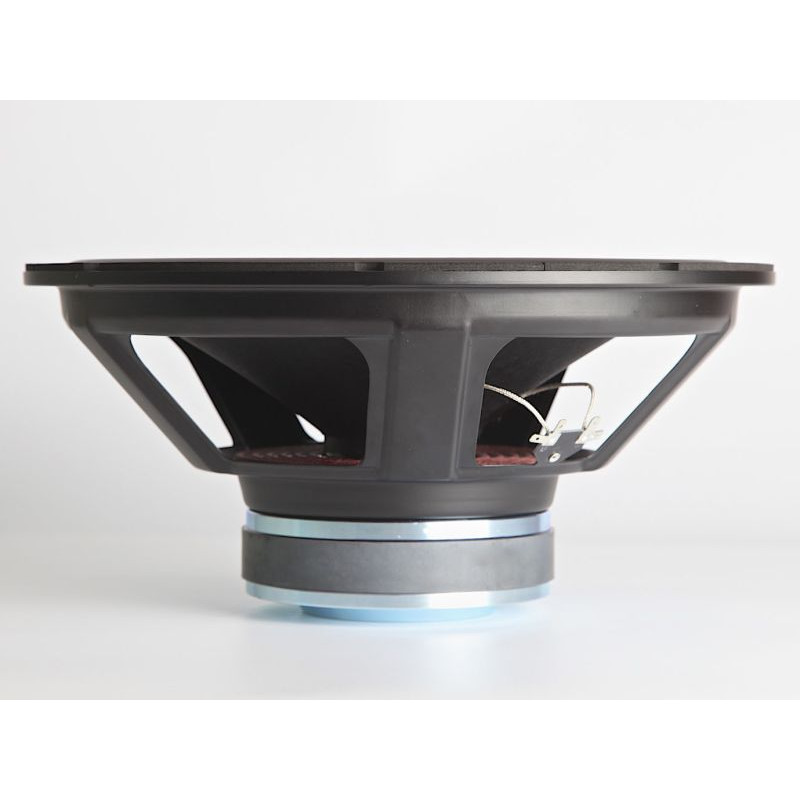

REDCATT 15FHW - 8 Ohm Sub-woofer

Key Features

    Hi sensitivity, low resonant frequency
    Nomex spider
    Strong, yet lightweight cone

Design Notes

The 15FHW is an ultra low frequency sub-woofer, designed to deliver large amounts of very low frequencies. With 90 dB 1watt / 1 meter sensitivity, you find this 15-inch sub-woofer with incredibly linear frequency response characteristics ideally assembled in sub-woofers for hi-fi, gaming, studios or cinema. The 15FHW uses a strong paper cone, along with a high excursion single roll rubber surround. Rubber surround material was specifically developed for this application. The shape of the surround roll was FEM optimized to ensure low distortion in whole working range. Power Handling At the core of the 15FHW is it’s voice coil technology featuring a composite Polyimide former material capable of withstanding peak temperatures in excess of 200°C, well beyond the thermal requirements of modern professional audio systems. REDCATT has implemented a Nomex(r) spider design to ensure long term Fs memory, consistency and diminish anomalies associated with spider deterioration.

Specifications
General Specs

    Nominal Diameter: 15 inch
    Rated Impedance: 8 Ohm

Power Handling

    AES Power: 400 Watts
    Program Power: 800 Watts

Voice Coil

    Diameter: 3 inch
    Winding wire : Copper
    Former: Glass Fiber
    Winding height: 19,7 mm

T/S Parameters

    Resonant frequency: 24Hz
    Re: 5.8ohm
    Qes: 0,63
    Qms: 11,9
    Qts: 0,6
    VAS: 221.2L
    Sd: 804cm2
    Mms: 169.6g
    BL: 15.8
    Le: 0,96
    Sensivity: 90,67 dB

Design Details

    Surround material: Rubber
    Cone material: Paper
    Spider: Cotton
    Plate thickness: 10 mm
    Peak to peak linear cone displacement: 14,85 mm
    Overall diameter: 385 mm
    Bolt circle diameter: 371 mm
    Baffle cutout dia: 349 mm
    Number of mounting holes: 8
    Depth (flange to rear): 168,1 mm
    Net weight: 6.8kg
