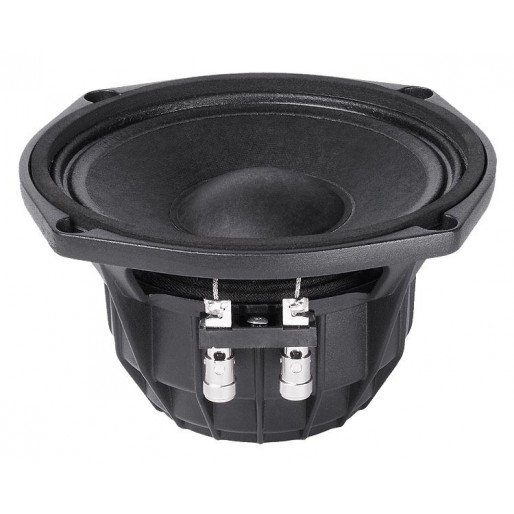

Faital Pro M5N8-80 5" 80W 8 Ohm
Nominal Specifications

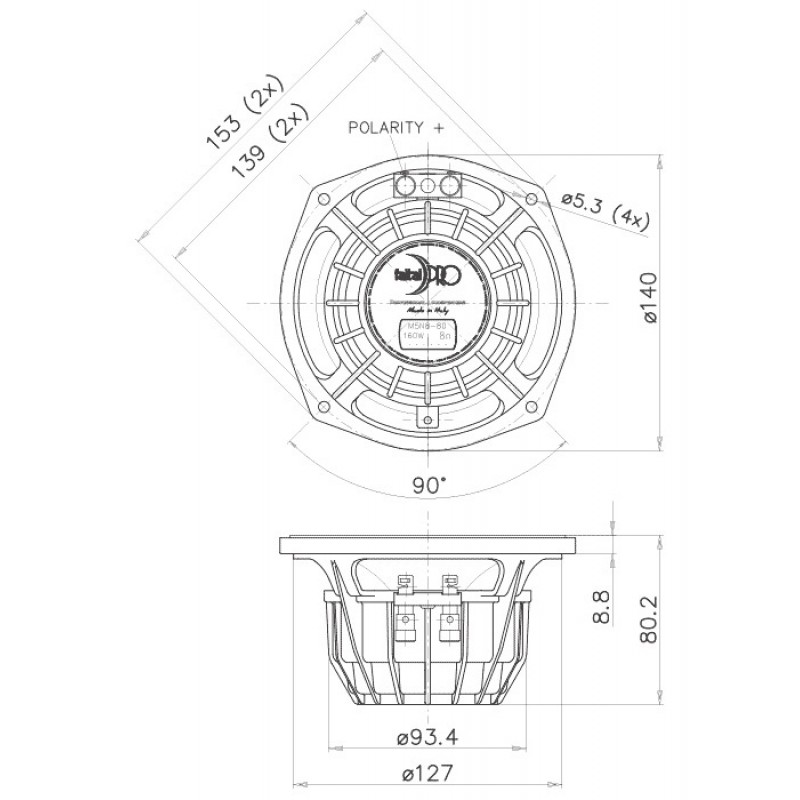

- Nominal Diameter - 130 mm (5 in)
- Overall Diameter - 153/140 mm (6.02/5.51 in)
- Bolt Circle Diameter - 139 mm (5.47 in)
- Baffle Cutout Diameter - 129 mm (5.08 in)
- Depth - 80.2 mm (3.16 in)
- Flange and Gasket Thickness - 8.8 mm (0.35 in)
- Net Weight - 950 g (2.1 lb)
- Shipping Box(Single Carton Box) - 165 x 160 x 103 mm (6.5 x 6.3 x 4.1 in)
- Shipping Weight - 1.2 Kg (2.7 lb)
Technical Parameters

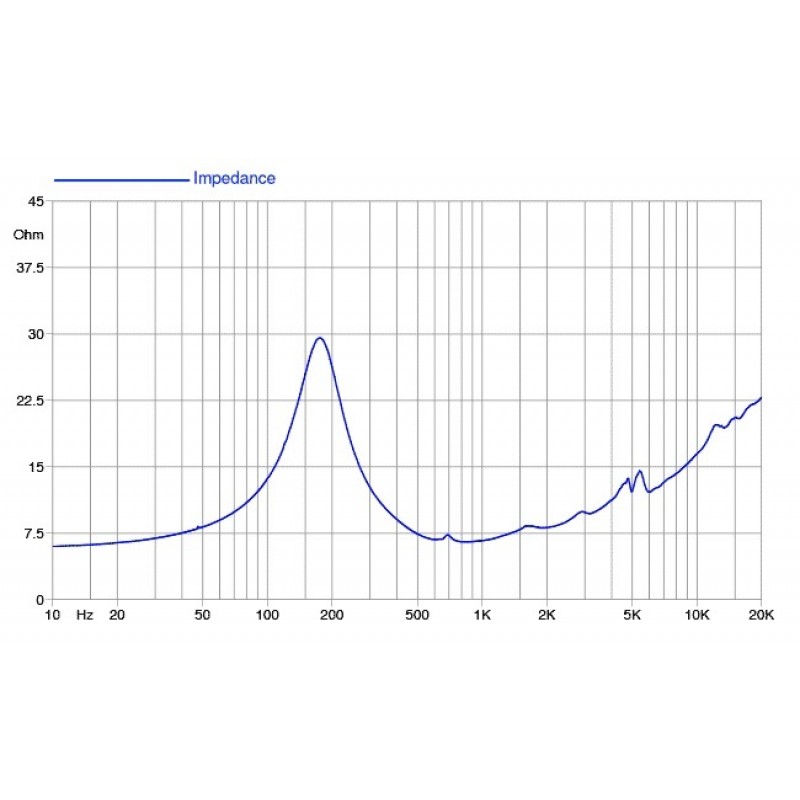

- Nominal Impedance - 8 Ohm
- Minimum Impedance - 6.5 Ohm
- AES Power Handling (1) - 80 W
- Maximum Power Handling (2) - 160 W
- Sensitivity (1W/1m) - 99 dB

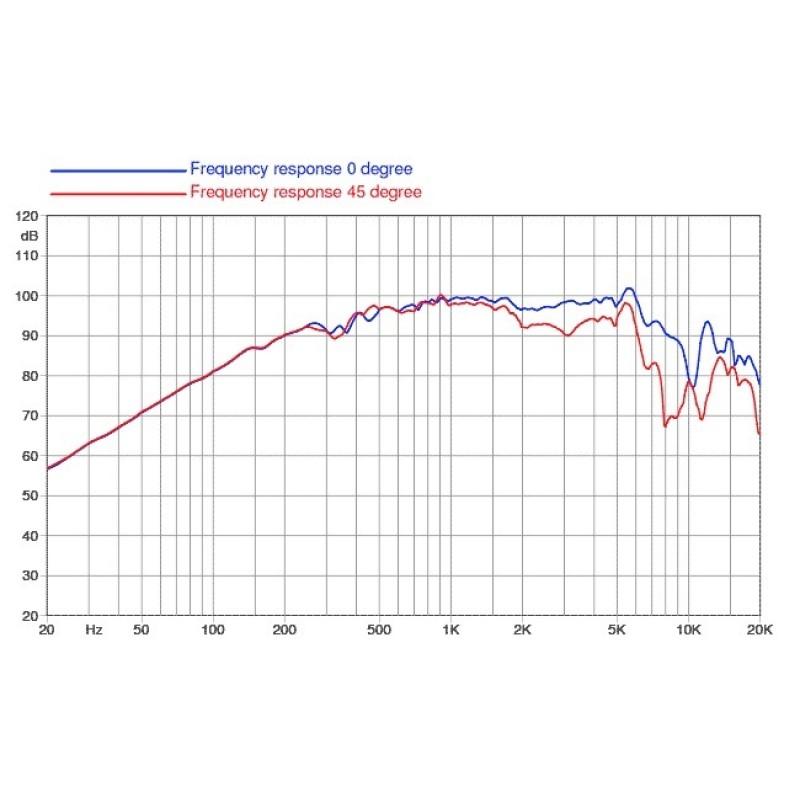

- Frequency Range - 180-8000 Hz
- Voice Coil Diameter - 32 mm (1.26 in)
- Winding Material - Al
- Former Material - Kapton
- Winding Depth - 7.5 mm (0.30 in)
- Magnetic Gap Depth - 6 mm (0.24 in)
- Flux Density - 1.65 T
- Magnet - Neodymium Ring
- Basket Material - Aluminum
- Demodulation - No
- Cone Surround (3) - M-Roll
- NET Air Volume filled by Loudspeaker - 0.6 l (0.021 ft^3)
- Spider Profile - 1x constant height waves
Thiele and small parameters
- Fs - 180 Hz
- Re - 5.5 Ohm
- Qes - 0.45
- Qms - 1.9
- Qts - 0.45
- Vas - 0.4 l (0.01 ft^3)
- Sd - 94.2 cm^2 (14.6 in^2)
- Xmax (4) - 2.75 mm
- Xdamage (5) - 15.2 mm
- Mms - 6.8 g
- Bl - 9.6 N/A
- Le - 0.22 mH
- Mmd - 6.3 g
- Cms - 0.11 mm/N
- Rms - 4 Kg/s
- Eta Zero - 1.83 %
- EBP - 400 Hz
