Cere mai multe informatii despre Faital Pro 5FE120 - 4 Ohmi la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.
Preţ:
160,00 Lei
Fără TVA: 134,45 Lei
8 bucati in stoc
-
+

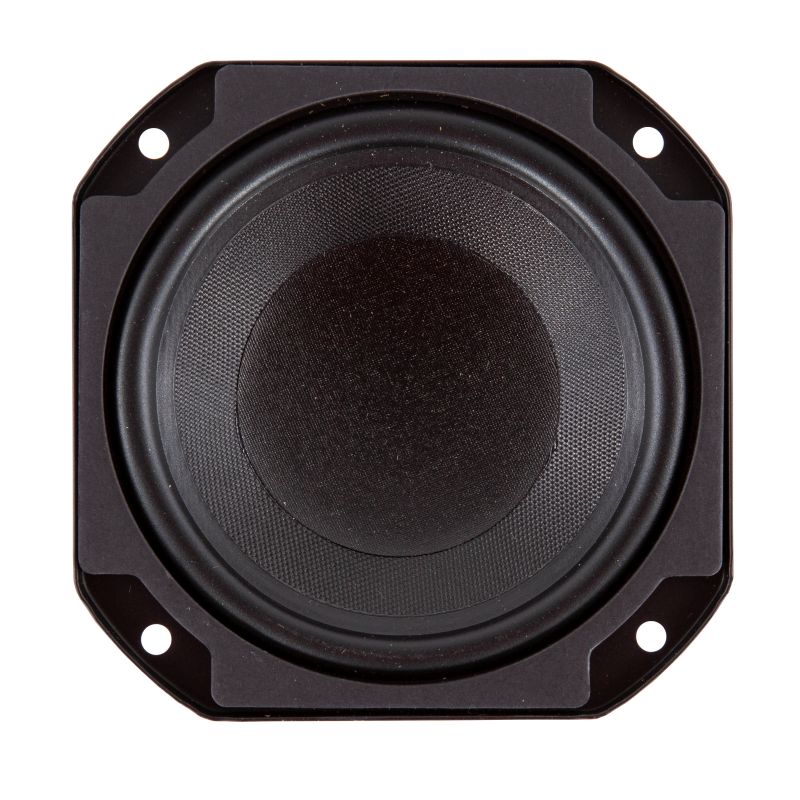

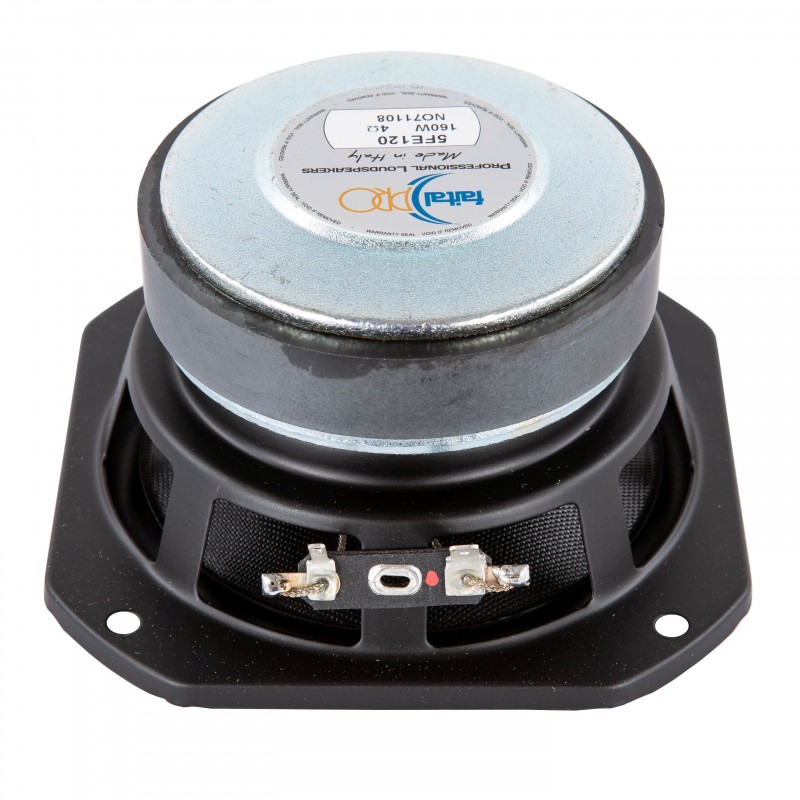

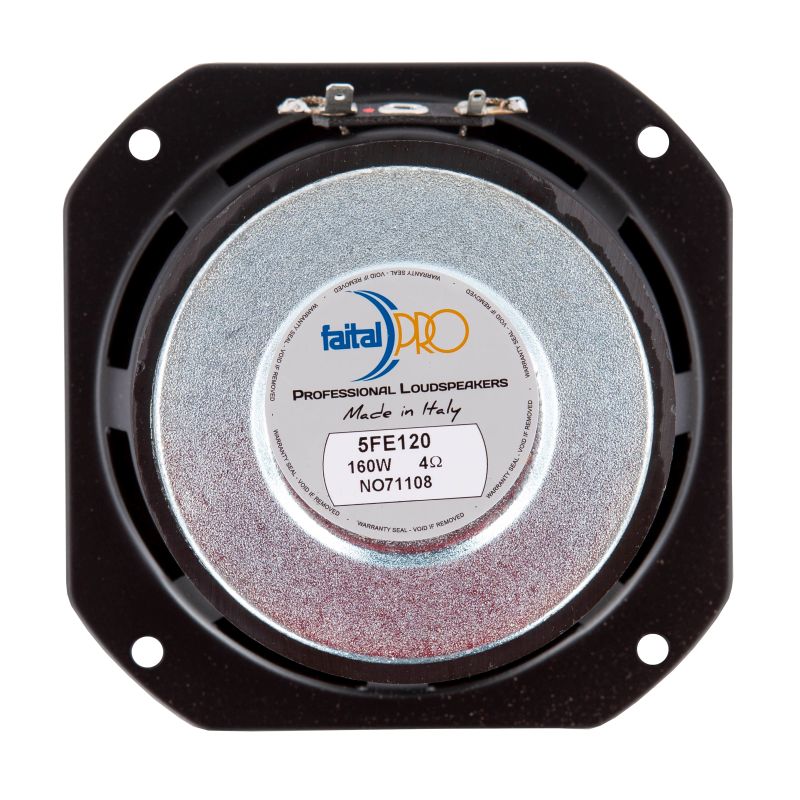

Faital Pro 5FE120 - 5" 80W 4 Ohm Loudspeaker
Nominal Specifications
- Nominal Diameter - 130 mm (5 in)
- Overall Diameter - 144.8/124.5 mm (5.7/4.9 in)
- Bolt Circle Diameter - 133 mm (5.24 in)
- Baffle Cutout Diameter - 114 mm (4.49 in)
- Depth - 71.5 mm (2.81 in)
- Flange and Gasket Thickness - 6.5 mm (0.25 in)
- Net Weight - 1.13 Kg (2.5 lb)
Technical Parameters
- Nominal Impedance - 4 Ohm
- Minimum Impedance - 3.7 Ohm
- AES Power Handling (1) - 80 W
- Maximum Power Handling (2) - 160 W
- Sensitivity (1W/1m) - 88 dB
- Frequency Range - 63-6300 Hz
- Voice Coil Diameter - 32 mm (1.26 in)
- Winding Material - Cu
- Former Material - Kapton
- Winding Depth - 12.5 mm (0.49 in)
- Magnetic Gap Depth - 6 mm (0.24 in)
- Flux Density - 1 T
- Magnet - Ferrite Ring
- Basket Material - Steel
- Demodulation - Aluminum Ring
- Cone Surround (3) - Half Roll
- NET Air Volume filled by Loudspeaker - 0.3 l (0.011 ft^3)
- Spider Profile - 1x constant height waves
Thiele and small parameters
- Fs - 65 Hz
- Re - 3.1 Ohm
- Qes - 0.4
- Qms - 8.2
- Qts - 0.38
- Vas - 5.0 dm^3 (0.18 ft^3)
- Sd - 79.8 cm^2 (12.37 in^2)
- Xmax (4) - 5.2 mm
- Xdamage (5) - 9.5 mm
- Mms - 10.9 g
- Bl - 5.9 N/A
- Le - 0.33 mH
- Mmd - 10.5 g
- Cms - 0.55 mm/N
- Rms - 0.55 Kg/s
- Eta Zero - 0.33 %
- EBP - 163 Hz
