Eminence PSD3014
  • Eminence PSD3014

Cere mai multe informatii despre Eminence PSD3014 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 1.030,86 Lei
Fără TVA: 866,27 Lei
Scos din productie
Producător: Eminence
Cod produs: Eminence PSD3014
-
+

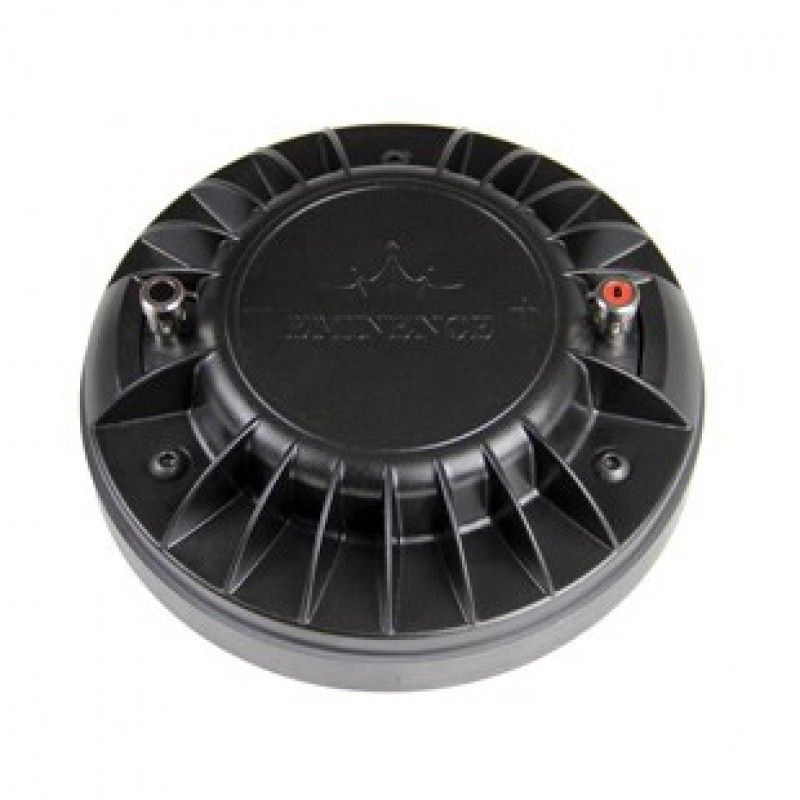

Eminence PSD3014 100W 8 Ohm 1.4" Bolt On Compression Driver



With a 100 watt continuous AES power rating, the PSD:3014 features a 3" voice coil and a recommended minimum crossover frequency of 800 Hz. "Sporting the same family resemblance of the PSD:3006, you would be hard pressed to find a compression driver that reliably plays as low and as loud as the PSD:3014," says Matt Marcum, Design Engineer at Eminence. "It's a large, robust, and well-made device... everything that 'Made in America' signifies."


SPECIFICATION


  • Throat Size 1.4", 35.6mm
  • Nominal Impedance 8 ohms
  • Power Rating 100W (AES)
  • Free Air Resonance 0.41kHz
  • Usable Frequency Range 800Hz-20kHz
  • Sensitivity 108.4dB
  • Magnet Weight 80oz, 2.27kg
  • Voice Coil Diameter 3" / 76.2mm
  • DC Resistance (Re) 4.8



MOUNTING INFORMATION:


  • Overall Diameter 7.9", 200.7mm
  • Mounting Holes Diameter 4 x 1/4-20
  • Mounting Holes B.C.D. 4.00 in. 101.6mm
  • Mounting Thread N/A
  • Depth 3.1", 78.7mm
  • Weight 13.7 lbs, 6.2 kg
  • Volume 1.36 liters



MATERIALS OF CONSTRUCTION:


  • Diaphragm Material Titanium w/ geodesic ribs for increased stiffness and break-up control.
  • Magnet Composition Ferrite
