Cere mai multe informatii despre Eminence Delta 15LFA la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 675,00 Lei
Fără TVA: 567,23 Lei
5 bucati in stoc
Producător: Eminence
Cod produs: 13716
-
+

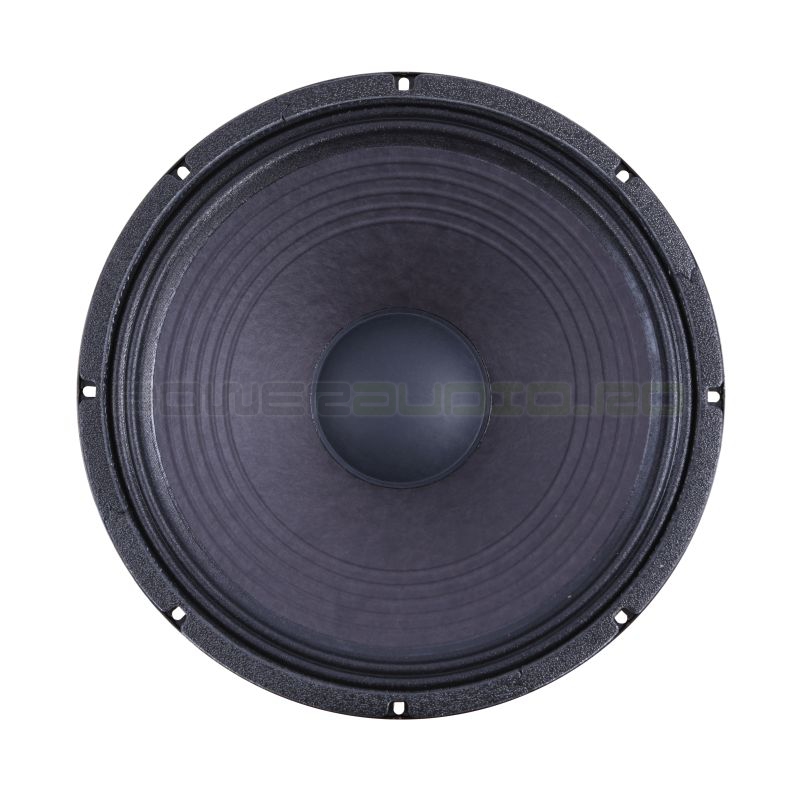

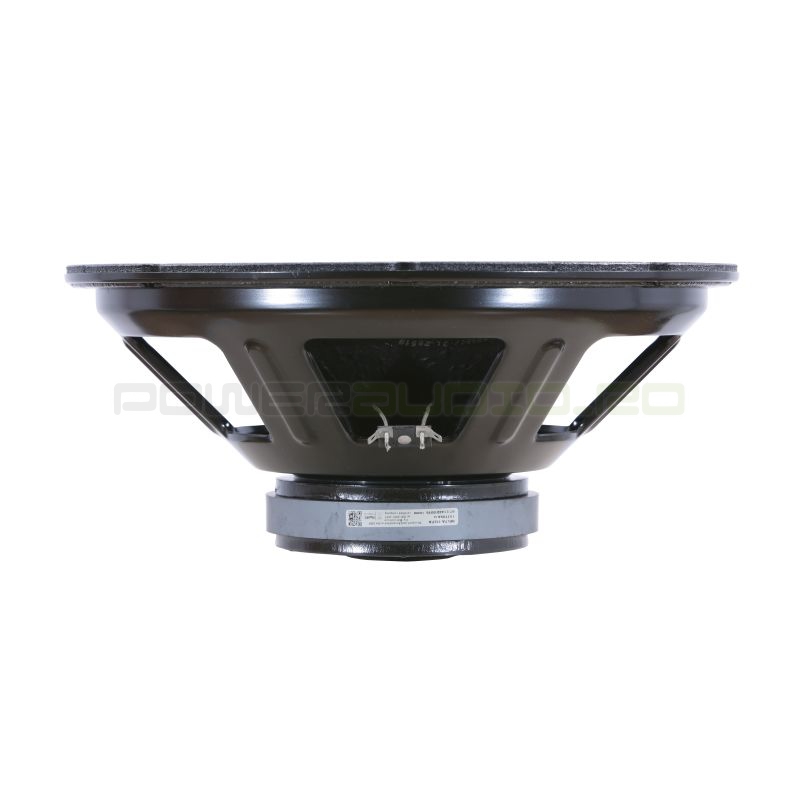

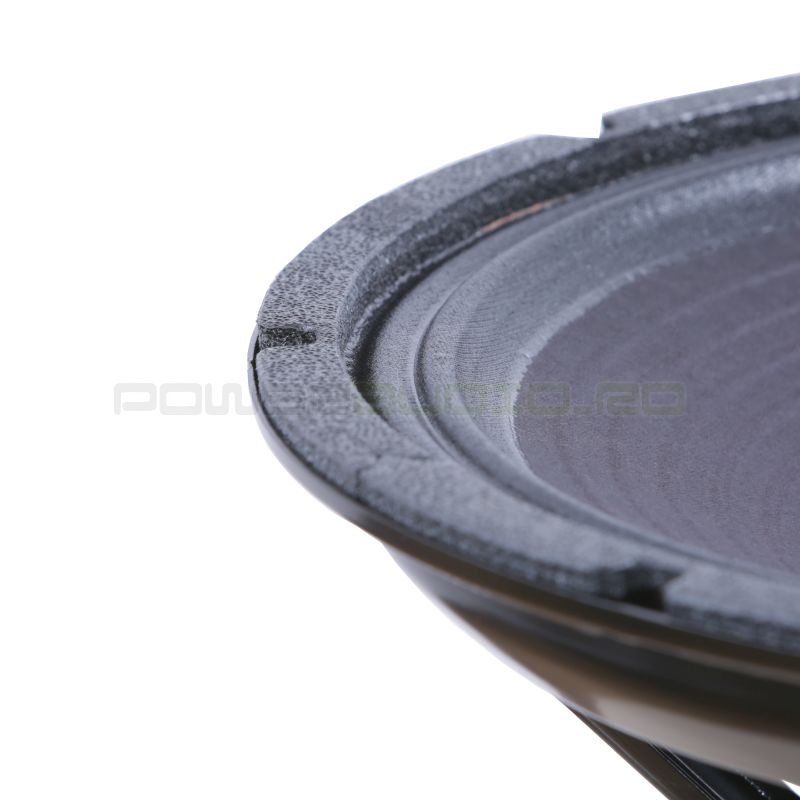

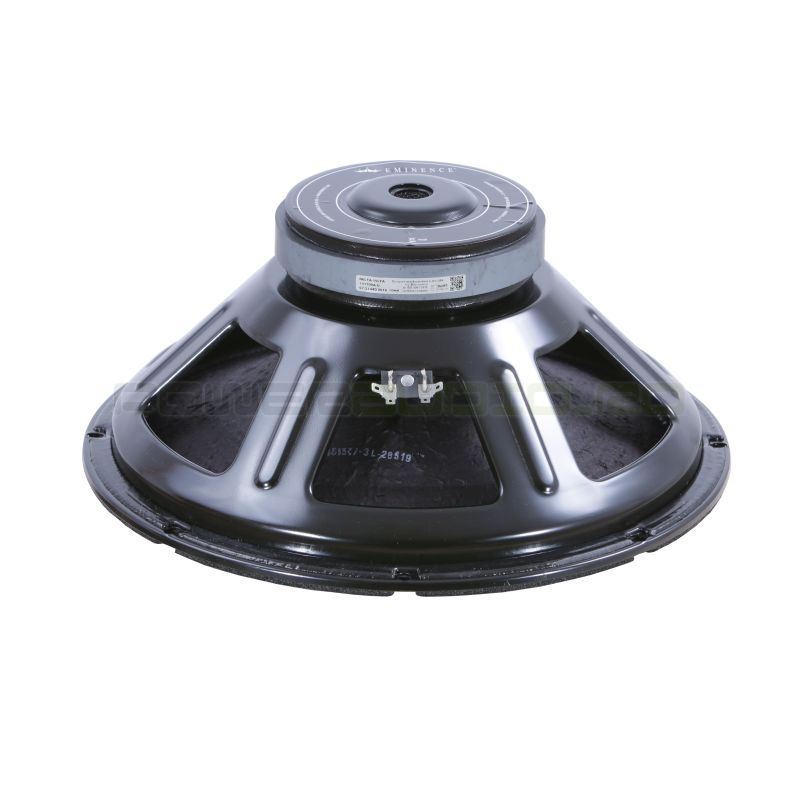

Eminence Delta 15LF 500w 15" Driver 8 ohms



Each Eminence American Standard model can be identified by its economical Stamped Steel chassis. Although more affordable than cast aluminum, these frames provide an excellent and versatile chassis. Eminence coat each basket and all metal components with an epoxy-acrylic finish using an in-house e-coat process. They can control the thickness of that coating to within 0.001"; critical when working with close tolerance transducer motor designs. Front and rear sealing gaskets are then fitted to each model to accommodate front or rear loading.

There are 24 unique models available in Eminence's American Standard series. Each was designed for versatility in a range of applications. From 6.5-15" models with applications ranging from standard sub-woofers, two-way enclosures, and coaxials, to truncated line array models, monitor woofers, and high performance midranges setting records for output in car audio, no other loudspeaker line provides more choices, power handling, performance, and reliability for the price. As with their Professional series, each product includes a lot of Made in the USA pride.

The Eminence Delta 15LF is recommended for professional audio as a mid-bass or floor monitor in a sealed enclosure. Also suitable as a woofer in vented, bass guitar or PA enclosures.


Specification:


  • Nominal Basket Diameter 15", 381mm
  • Nominal Impedance 8 ohms
  • Power Rating: Watts, 500W; Music Program 1000W
  • Resonance 39Hz
  • Usable Frequency Range 42Hz - 3.2kHz
  • Sensitivity 96dB
  • Magnet Weight 56 oz.
  • Gap Height 9.53mm, 0.37"
  • Voice Coil Diameter 63.5mm, 2.5"



Thiele & Small Parameters:

  • Resonant Frequency (fs) 39Hz
  • DC Resistance (Re) 6.11
  • Coil Inductance (Le) 1.37mH
  • Mechanical Q (Qms) 6.3
  • Electromagnetic Q (Qes) 0.52
  • Total Q (Qts) 0.48
  • Compliance Equivalent Volume (Vas) 241 liters / 8.51 cu.ft.
  • Peak Diaphragm Displacement Volume (Vd)419cc
  • Mechanical Compliance of Suspension (Cms) 0.23mm/N
  • BL Product (BL) 14.6 T-M
  • Diaphragm Mass Inc. Airload (MMs) 75 grams
  • Efficiency Bandwidth Product (EBP) 75
  • Maximum Linear Excursion (Xmax) 4.8mm
  • Surface Area of Cone (Sd) 873 cm2
  • Maximum Mechanical Limit (Xlim) 16.5mm



Mounting Information:


  • Recommended Enclosure Volume: Sealed 36.8-42.5 liters / 1.3-1.5 cu.ft., Vented 85-167 liters / 3-5.9 cu.ft.
  • Driver Volume Displaced 3.62 liters / 220.8 cu.in.
  • Overall Diameter 384.8mm, 15.15"
  • Baffle Hole Diameter 352.3mm, 13.87"
  • Magnet diameter 163mm
  • Front Sealing Gasket Fitted as standard
  • Rear Sealing Gasket Fitted as standard
  • Mounting Holes Diameter 6.4mm, 0.25"
  • Mounting Holes B.C.D. 369.9mm, 14.56"
  • Depth 160mm, 6.3"
  • Net Weight 5.8 kg, 12.8 lbs
  • Shipping Weight 6.7 kgs, 14.8 lbs



Materials of Construction:


  • Coil Construction Copper voice coil
  • Coil Former Polyimide former
  • Magnet Composition Ferrite magnet
  • Core Details Vented and extended core
  • Basket Materials Pressed steel basket
  • Cone Composition Paper Cone
  • Cone Edge Composition Cloth cone edge
  • Dust Cap Composition Solid composition paper dust cap

Descarca fisa tehnica click to download pdf
