Oberton ND2545
  • Oberton ND2545
  • Oberton ND2545
  • Oberton ND2545

Cere mai multe informatii despre Oberton ND2545 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 570,00 Lei
Fără TVA: 478,99 Lei
la comanda - 6 Saptamani
Producător: Oberton
Cod produs: Oberton ND2545
Puncte de recompensă: 8
-
+

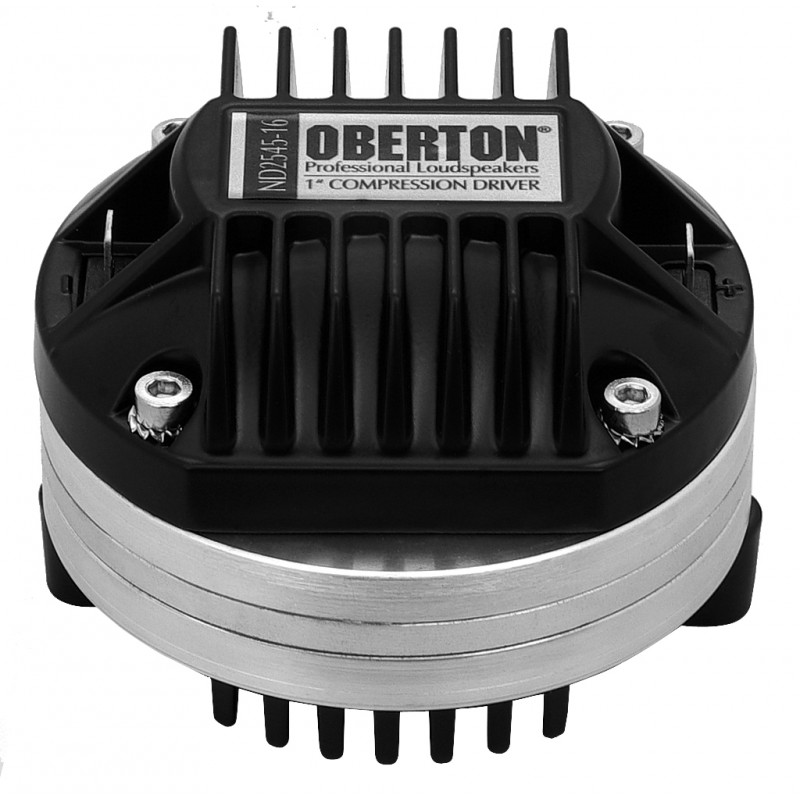

The ND2545 high frequency compression neodymium driver features an integral dome and suspension made of special polyester, providing exceptional high output with low distortion and frequency response with high linearity. The voice coil assembly is easily field replaceable without soldering.





SPECIFICATION

MATERIALS OF CONSTRUCTON

Throat diameter
Nominal impedance
Minimum impedance
D.C. resistance
Power capacity (2-20 kHz)
Program Power Capacity  (2-20 kHz)
Sensitivity (2-15 kHz)
Frequency range
Recommended crossover
Voice coil diameter
Flux density

25,4 mm (1 in.)
8/16 Ohms
6,4/12,7 Ohms
5,15/10,8 Ohms
40W
80W
108 dB
1 - 20 kHz
1,5 kHz or higher 12 dB/oct.min
44 mm (1,75 in.)
2,0 T

Diaphragm
Voice coil material
Voice coil former

sandwich polyester
Aluminium
   Kapton™

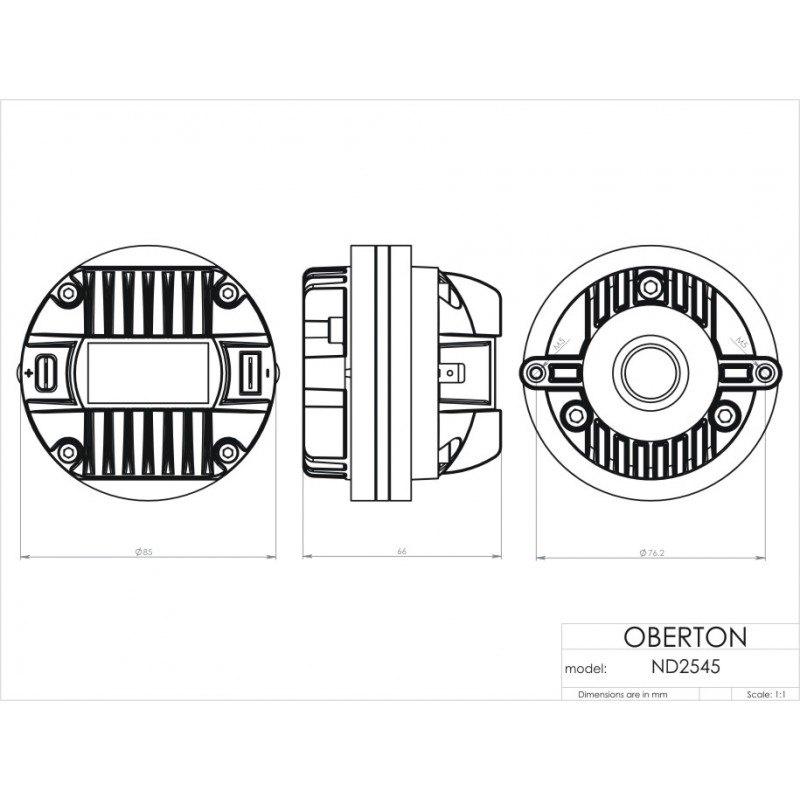

MOUNTING INFORMATION

Overall diameter
Depth
Mounting
Net weight

85 mm
69 mm
2 x M5 holes 180° on 76.2 mm (3 in.) diam
0,93 kg




Positive voltage on red terminal moves diaphragm toward the phasing plug


Descarca fisa tehnica click to download pdf
