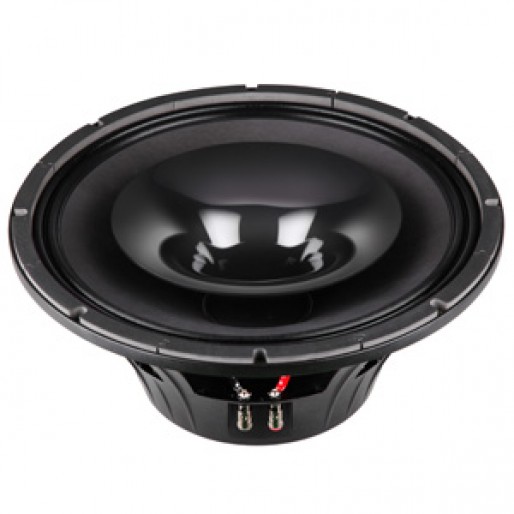

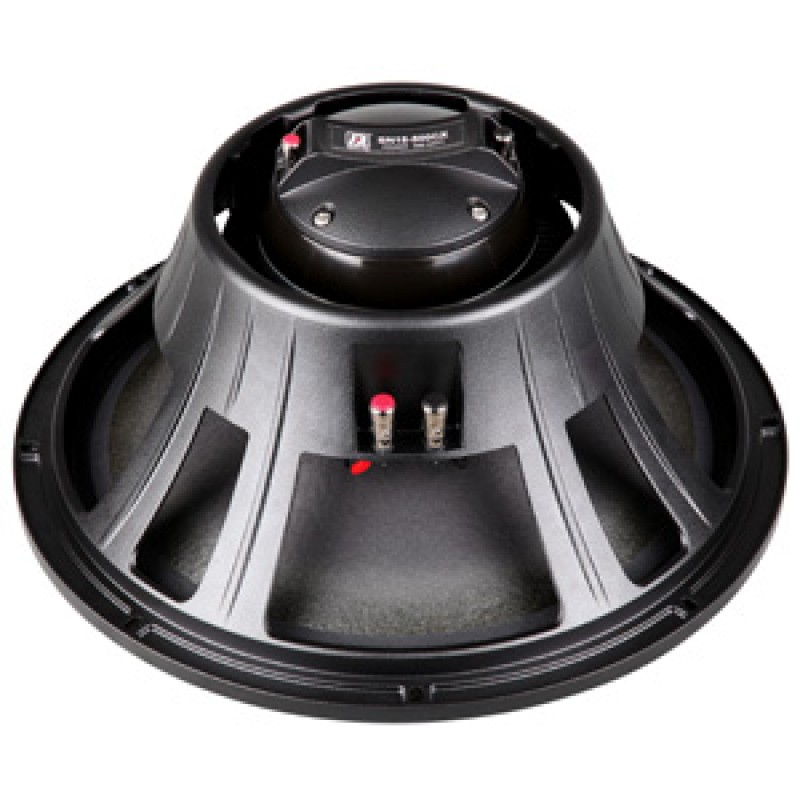

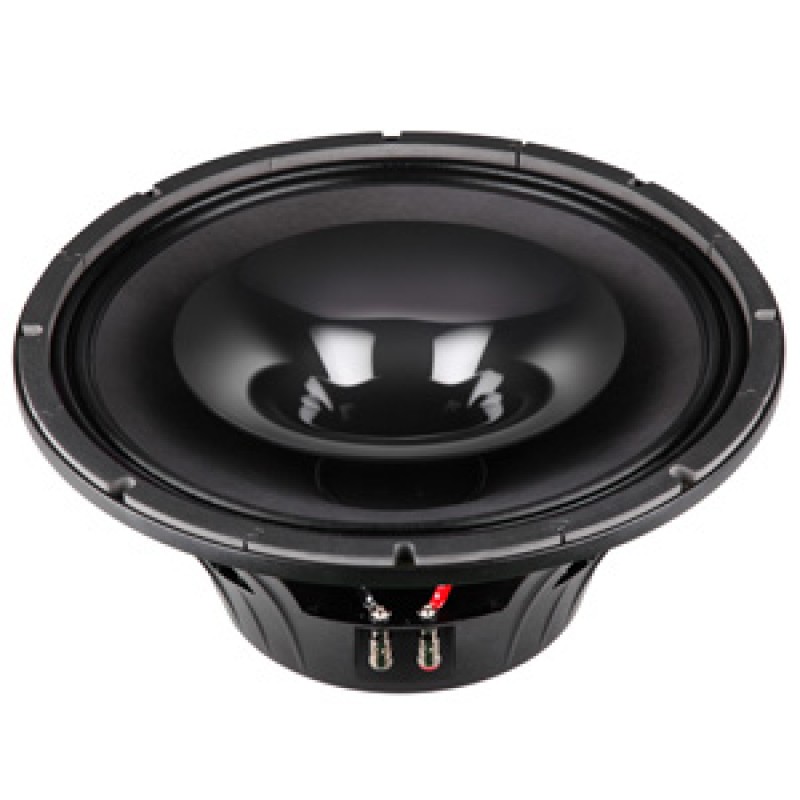

P-audio SN15-500CX

Description:
The P Audio SN15-500CX is a high performance coaxial transducer. The SN15-500CX is an upgraded design that features many of P Audios new technologies and performance upgrades. The low frequency section utilizes a large diameter voice coil design while the high frequency section employs a medium format titanium diaphragm assembly. The 15 inch (381mm) diameter piston will produce extremely high sound pressure levels at both low and mid band frequencies and is ideal for high level response in both live sound and recorded music venues. The transducer uses very high energy neodymium magnetics to achieve a very high acoustic output to weight ratio. The SN15-500CX has been optimized for use in two way or three way sound reinforcement systems and has an operating range of 55Hz to 20000Hz. The SN15-500CX features a large 3.28 inch (83.3mm) diameter voice coil that provides an AES rated 600 watts of continuous power handling and a full 2400 watts of peak rated power handling when sufficient amplifier headroom is available. The SN15-500CX employs P Audios under damper venting to control turbulent air flow. The voice coil design is a bobbin wound geometry with P Audios precision round inside/ outside wire technology to improve conversion efficiency and provide a large cross-sectional area for superior cooling. The high frequency section is a close spaced titanium diaphragm assembly. The diaphragm is a 2.5 inch (63.5mm) diaphragm that provides excellent high frequency response and superior power handling and durability. The horn loading is provided via a thru pole piece configuration The overall high frequency design provides very high sensitivity. The transducer chassis is a die cast aluminum design that insures a very high degree of structural integrity.

Diametru: 15"
Material Sasiu: Aluminiu
Putere AES: 600W
Putere Program 1200W
Gama Frecvente: 55-20000Hz
Xmax: 4,8mm
Material Magnet: Neodymium
Sensitbilitate 1w/1m: 97.0 dB
Diametrul Bobinei: 3,25"

Descarca fisa tehnica
