Faital Pro 6RS140

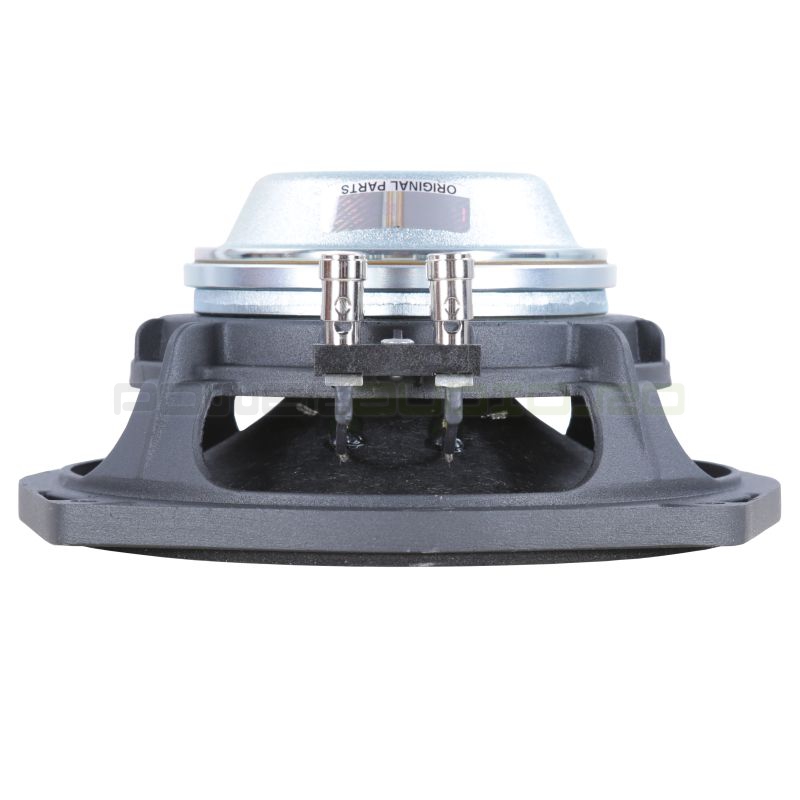

Faital Pro 6RS140 6" 200W 8 Ohm

NOMINAL SPECIFICATIONS

• Nominal Diameter 160 mm (6 in)
• Overall Diameter 186.5/162 mm (7.34/6.37 in)
• Bolt Circle Diameter 172 mm (6.77 in)
• Baffle Cutout Diameter 147 mm (5.78 in)
• Depth 76 mm (2.99 in)
• Flange and Gasket Thickness 11 mm (0.43 in)
• Net Weight 1.2 Kg (2.6 lb)
• Shipping Box (Single Carton Box) 190 x 185 x 103 mm (7.5 x 7.3 x 4.1 in)
• Shipping Weight 1.2 Kg (2.6 lb)

Technical specifications

• Nominal Diameter: 160 mm (6in)
• Overall Diameter: 186.5/162 mm (7.34/6.37in)
• Bolt Circle Diameter: 172 mm (6.77in)
• Baffle Cutout Diameter: 147 mm (5.79in)
• Overall Depth: 76 mm (2.99in)
• Flange/Gasket Thickness: 11 mm (0.43in)
• Impedance: 8 ohm
• Minimum Impedance: 6.3 ohm
• AES Power: 200 W
• Program Power: 400 W
• Sensitivity: 93 dB
• Frequency Range: 60:6000 Hz
• Voice Coil Diameter: 44 mm (1.73in)
• Voice Coil Material: Al
• Voice Coil Former: Glass Fiber
• Voice Coil Depth: 13.2 mm (0.52in)
• Magnetic Gap Depth: 6 mm (0.24in)
• Surround Type: Half
• Spider Profile: 1x variable height waves
• Chassis Material: Aluminum
• Magnet Material: Neodymium Ring
• Demodulating Ring: Aluminum Ring
• Flux Density: 1.5 T
• Driver Displacement Volume: 0.37 L (0.013ft^3)

Thiele and small parameters

• Resonance (Fs) - 65 Hz
• DC Resistance (Re) - 5.3 Ohm
• Electrical Q (Qes) - 0.28
• Mechanical Q (Qms) - 5.8
• Total Q (Qts) - 0.27
• Compliance Equivalent Volume (Vas) - 9.3 L
• Diaphragm Area (Sd) - 133 cm²
• Maximum Linear Excursion (Xmax) - 5.60 mm
• Maximum Mechanical Excursion (Xdamage) - 11.6 mm
• Moving Mass - System (Mms) - 16.0 g
• Force Factor (BL) - 11 Tm
• Voice Coil Inductance (Le) - 0.28 mH
• Moving Mass - Diaphragm (Mmd) - 14.3 g
• Compliance (Cms) - 0.37 mm/N
• Mechanical Resistance (Rms) - 1.1 Kg/s
• Reference Efficiency (Eta Zero) - 0.86 %
• Efficiency Bandwidth Product (EBP) - 232

Shipping Information

• Net Weight: 1.2 kg (2.6lb)
• Shipping Weight: 1.3 kg (2.9lb)
• Shipping Box: 190 x 185 x 103 mm

Notes

1 - AES Power: 2 Hours Test According to AES 2-1984 Rev. 2003
2 - Maximum/Program power is defined as 3 dB greater than AES Power
3 - Xmax: Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
4 - Xdamage: Maximum excursion before permanent damage
