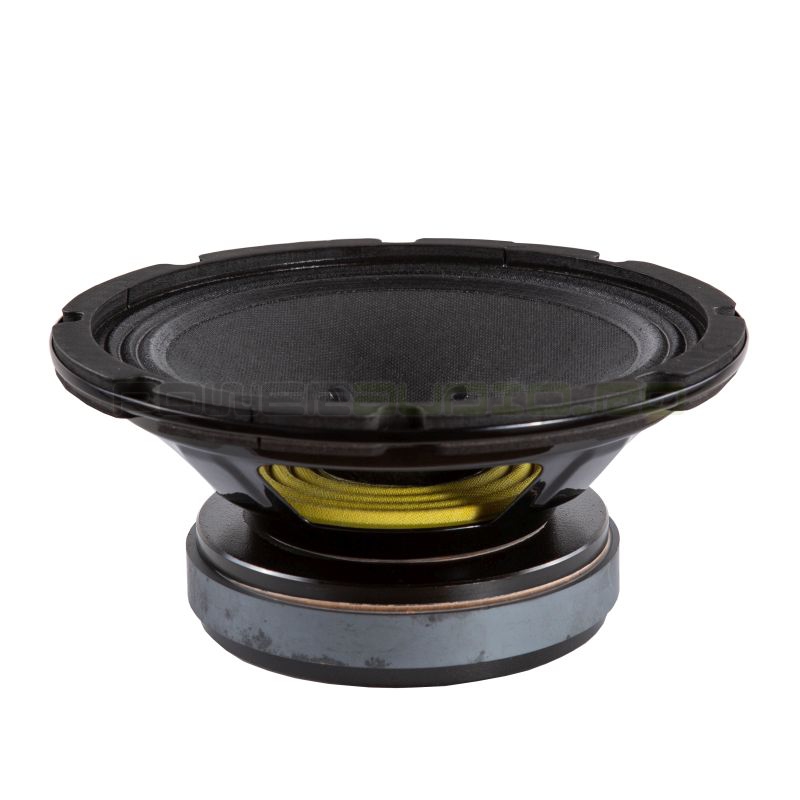

Fane Sovereign 8-225
  • Fane Sovereign 8-225

Cere mai multe informatii despre Fane Sovereign 8-225 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 277,20 Lei
Fără TVA: 232,94 Lei
8 bucati in stoc
Producător: Fane
Cod produs: Fane Sovereign 8-225
Puncte de recompensă: 4
-
+

Specifications:


  • Nominal Chassis Diameter 8" / 203.2 mm
  • Impedance 8 O
  • Power Handling 225 w (A.E.S.)
  • Peak Power (6dB Crest Factor) 900 w (A.E.S.)
  • Usable Frequency Range -6dB 55 Hz - 5 kHz
  • Sensitivity (1 w - 1 m) 97 dB
  • Moving Mass inc. Air Load 20 grams
  • Minimum Impedance Zmin 7.6 Ohms
  • Effective Piston Diameter 6.496” / 164.99 mm
  • Peak Displacement Volume of Cone Vd 0.085 litres
  • Magnet Weight 34 oz
  • Magnetic Gap Depth 0.31” / 7.87 mm
  • Flux Density 1.0 Tesla
  • Coil Winding Height 0.59” / 14.98 mm
  • Voice Coil Diameter 2.0” / 50.8 mm



Thiele Small Parameters:


  • FS Hz 62 Hz
  • RE Ohms 6.1 O
  • Qms 4.3
  • Qes 0.42
  • Qts 0.38
  • Vas Ltr 22 litres
  • Vd litres 0.085 litres
  • CMS (mm/N) 0.34 mm/N
  • BL T/m 11 T/m
  • Mms (grms) 20.69 grams
  • Xmax (mm) 5.5 mm
  • Sd (cm2) 213 cm2
  • Efficiency % 1.25%
  • Le (1k Hz) 1.47 mH



Mounting Information & Dimensional Data:


  • Overall Diameter 8.18” / 207.77 mm
  • Width Across Flats N/A
  • Flange Height 0.27” / 6.9 mm
  • Baffle Hole Diameter F/M 7.24” / 183.89 mm
  • Baffle Hole Diameter R/M 7.24” / 183.89 mm
  • Gasket Supplied Front & Rear
  • Fixing Holes 8x 5.5 mm on 7.79” / 197.8 mm PCD
  • Depth 3.74” / 94.99 mm
  • Weight 6.06 lb / 2.75 kg
  • Recommended Enclosure Volume 0.70 - 1.23 cu ft / 20 - 35 litres
  • Shipping Weight 6.94 lb / 3.15 kg
  • Packing Carton Dimensions 130 x 240x 240 mm



Materials Of Construction:


  • Former Material Glass Fibre
  • Voice Coil Copper
  • Magnet Material Ferrite
  • Chassis Pressed Steel
  • Polarity Positive voltage at red terminal causes forward motion of cone
  • Surround / Edge Termination Polyvinyl Damped Dbl. Half Roll Linen
  • Dust Dome Paper
  • Connectors Solder Tag
  • Cone Paper
