Cere mai multe informatii despre Fane Sovereign 6-100 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 209,00 Lei
Fără TVA: 175,63 Lei
8 bucati in stoc
Producător: Fane
Cod produs: 12457
-
+

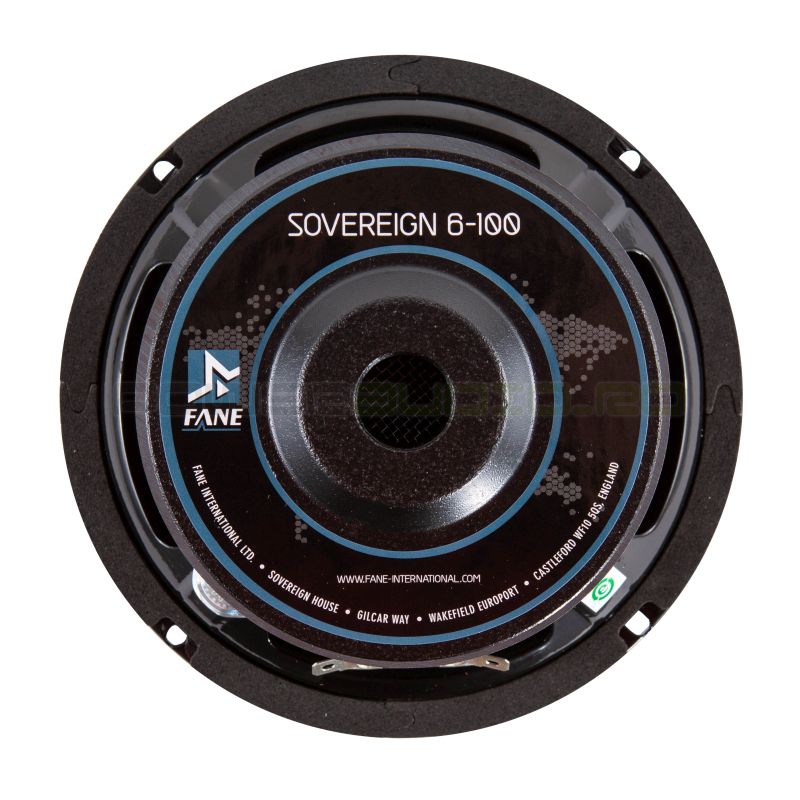

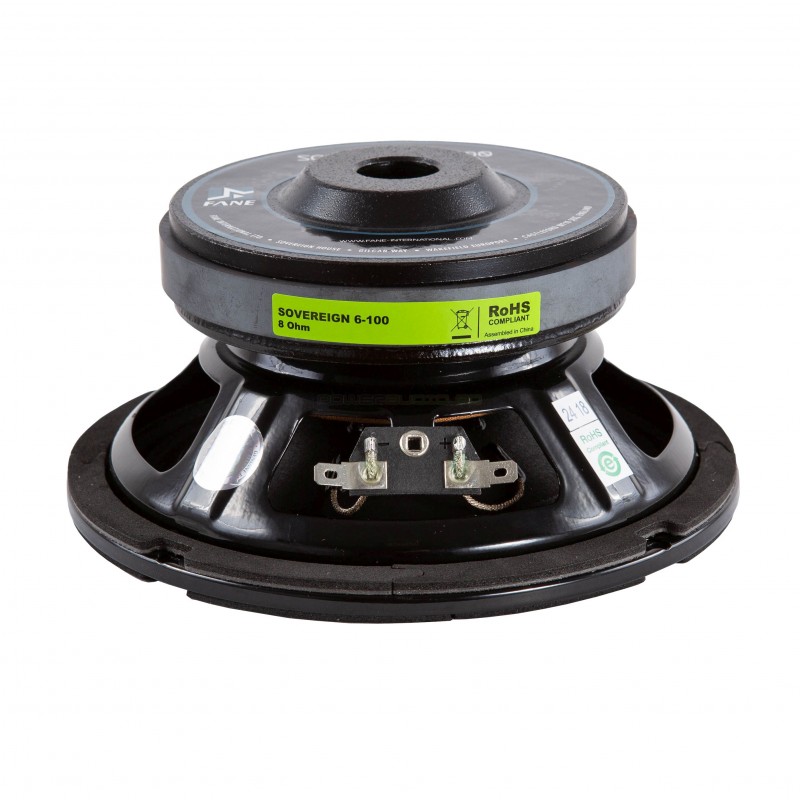

Fane Sovereign 6-100 - 6" 100W 8 Ohm


The Sovereign Series comprises fifteen cone drivers designed for a broad spectrum of sound reinforcement situations. Midrange, fullrange, bass-mid and dedicated bass applications are comprehensively covered. Featuring heavy duty pressed steel chassis providing rugged durability and consistent performance in even the most demanding of environments, glass fibre voice coils capable of delivering outstanding power handling capabilities and carefully selected cone materials for smooth tonal characteristics and extended bass response, the Sovereign represents an exciting and versatile answer to the demands of a varied and demanding range of audio applications.


  • 200 W Program Power.
  • 93 dB Sensitivity (1W/1m).
  • Versatile driver for use in pro-sound applications.
  • Best suited as a mid-range driver in a small sealed enclosure designs.
  • Works well as a mid/ bass driver in vented enclosures.
  • Optimised cone pulp offers increased strength, durability and performance.
  • 1.5-inch Copper voice coil.
THIELE SMALL PARAMETERS:

  • FS Hz 115 Hz
  • RE Ohms 6.9 Ohms
  • Qms 12.8
  • Qes 0.67
  • Qts 0.64
  • Vas Ltr 2.2
  • Vd litres 0.032
  • CMS (mm/N) 0.08
  • BL T/m 13.25
  • Mms (grms) 23.94
  • Xmax (mm) 2.5
  • Sd (cm2) 139.2
  • Efficiency % 0.5
  • Le (1kHz) 1.15 mH


ELECTRO ACOUSTIC SPECIFICATIONS:

  • Nominal Chassis Diameter 6.5'
  • Impedance 8 Ohms
  • Power Handling 100 w (EIA 426A)
  • Peak Power (6dB Crest Factor) 400 w (EIA 426A)
  • Usable Frequency Range -6dB 60 Hz - 7 KHz
  • Sensitivity (1 w - 1 m) 93 dB
  • Moving Mass inc. Air Load 23.94 grams
  • Minimum Impedance Zmin 7 Ohms
  • Effective Piston Diameter 5.15' / 131 mm
  • Peak Displacement Volume of Cone Vd 0.03 litres
  • Magnet Weight 20 oz
  • Magnetic Gap Depth 0.23" / 6 mm
  • Flux Density 1.0 Tesla
  • Coil Winding Height 0.39" / 10 mm
  • Voice Coil Diameter 1.5" / 38.1 mm


MATERIALS OF CONSTRUCTION:

  • Former Material Glass Fibre
  • Voice Coil Copper
  • Magnet Material Ferrite
  • Chassis Steel
  • Cone Paper
  • Surround / Edge Termination Polyvinyl Damped Dbl. Half
  • Roll Linen
  • Dust Dome Paper
  • Connectors Solder Tag
  • Polarity Positive Voltage at Red Terminal Causes Forward Motion of Cone


MOUNTING / SHIPPING INFORMATION:

  • Overall Diameter 6.50' / 165 mm
  • Flange Height 0.27' / 7 mm
  • Baffle Hole Diameter F/M 5.78' / 147 mm
  • Baffle Hole Diameter R/M 5.78' / 147 mm
  • Gasket Supplied Front & Rear
  • Fixing Holes 4x 5.9 mm on 6.14" / 155.96 mm PCD
  • Depth 2.20' / 56 mm
  • Weight 3.63 lb / 1.65 kg
  • Recommended Enclosure Volume 0.35 - 0.70 cu ft / 10 - 20 litres
  • Shipping Weight 4.29 lb / 1.95 kg
  • Packing Carton Dimensions 105 x 205 x 205 mm

Descarca fisa tehnica click to download pdf
