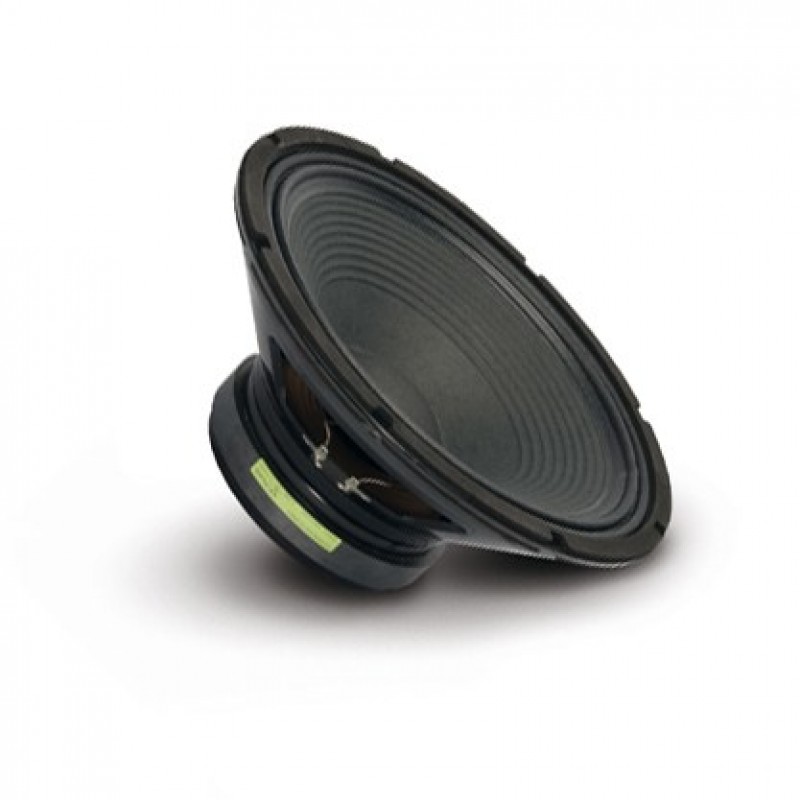

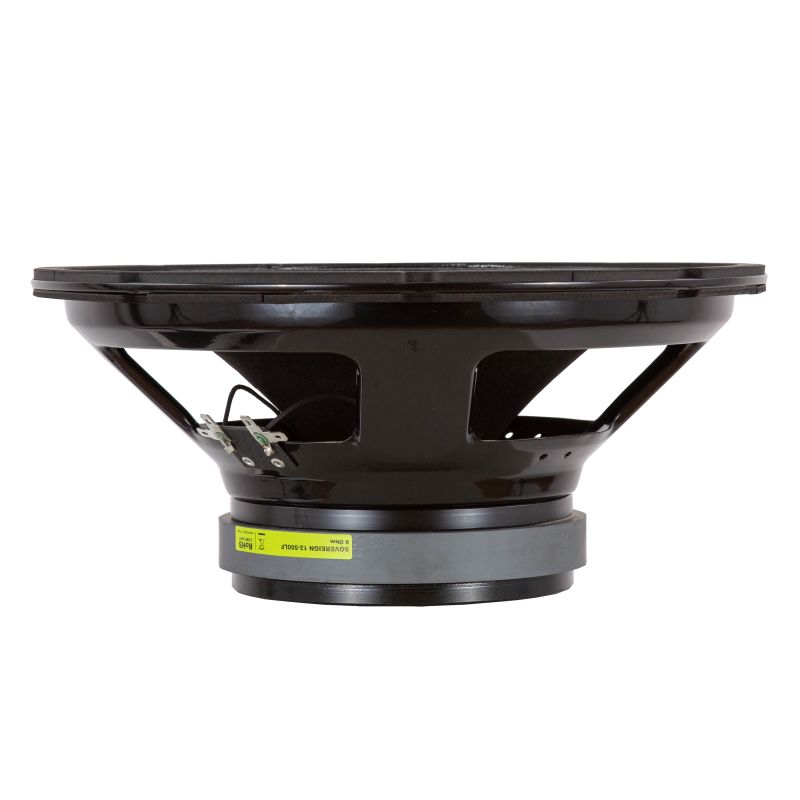

Fane Sovereign 12-500LF
  • Fane Sovereign 12-500LF
  • Fane Sovereign 12-500LF

Cere mai multe informatii despre Fane Sovereign 12-500LF la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 408,15 Lei
Fără TVA: 342,98 Lei
6 bucati in stoc
Producător: Fane
Cod produs: Fane Sovereign 12-500LF
Puncte de recompensă: 7
-
+

ELECTRO ACOUSTIC SPECIFICATIONS:



  • Nominal Chassis Diameter 12" / 304.8 mm
  • Impedance 8 Ohms
  • Power Handling 500 w (A.E.S.)
  • Peak Power (6dB Crest Factor) 2000 w (A.E.S.)
  • Usable Frequency Range -6dB 38 Hz - 5 kHz
  • Sensitivity (1 w - 1 m) 95 dB
  • Moving Mass inc. Air Load 75 grams
  • Minimum Impedance Zmin 7.4 Ohms
  • Effective Piston Diameter 271.01 mm
  • Peak Displacement Volume of Cone Vd 0.3 litres
  • Magnet Weight 56 oz
  • Magnetic Gap Depth 10 mm
  • Flux Density 0.97 Tesla
  • Coil Winding Height 19 mm
  • Voice Coil Diameter 63.5 mm / 2.5"



THIELE SMALL PARAMETERS:


  • FS Hz 50 Hz
  • RE Ohms 5.9 Ohms
  • Qms 7.5
  • Qes 0.53
  • Qts 0.51
  • Vas Ltr 66 litres
  • Vd litres 0.298 litres
  • CMS (mm/N) 0.14 mm/N
  • BL T/m 16.37 T/m
  • Mms (grms) 75 grams
  • Xmax (mm) 5.5 mm
  • Sd (cm2) 576.1 cm2
  • Efficiency % 1.50%
  • Le (1k Hz) 2.36 mH



MOUNTING / SHIPPING INFORMATION:


  • Overall Diameter 304.8 mm
  • Width Across Flats N/A
  • Flange Height 6.9 mm
  • Baffle Hole Diameter F/M 285.75 mm
  • Baffle Hole Diameter R/M 285.75 mm
  • Gasket Supplied Front & Rear
  • Fixing Holes 8x 7.0 mm on 298 mm PCD
  • Depth 144.52 mm
  • Weight 5.0 kg
  • Recommended Enclosure Volume 30 - 75 litres
  • Shipping Weight 5.85 kg
  • Packing Carton Dimensions 165 x 330 x 330 mm



MATERIALS OF CONSTRUCTION


  • Former Material Glass Fibre
  • Voice Coil Copper
  • Magnet Material Ferrite
  • Chassis Pressed Steel
  • Polarity Positive voltage at red terminal causes forward motion of cone
  • Cone Straight Polycellulose Ribbed Cone
  • Surround / Edge Termination Polyvinyl Damped Multi Roll. Poly Cotton
  • Dust Dome Paper
  • Connectors Solder Tag

Descarca fisa tehnica click to download pdf
