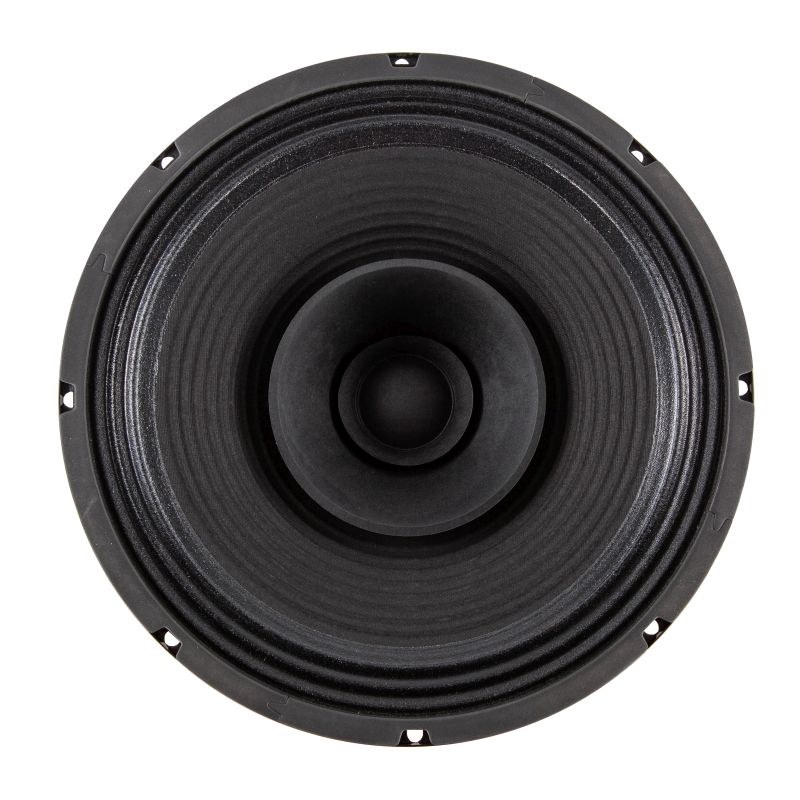

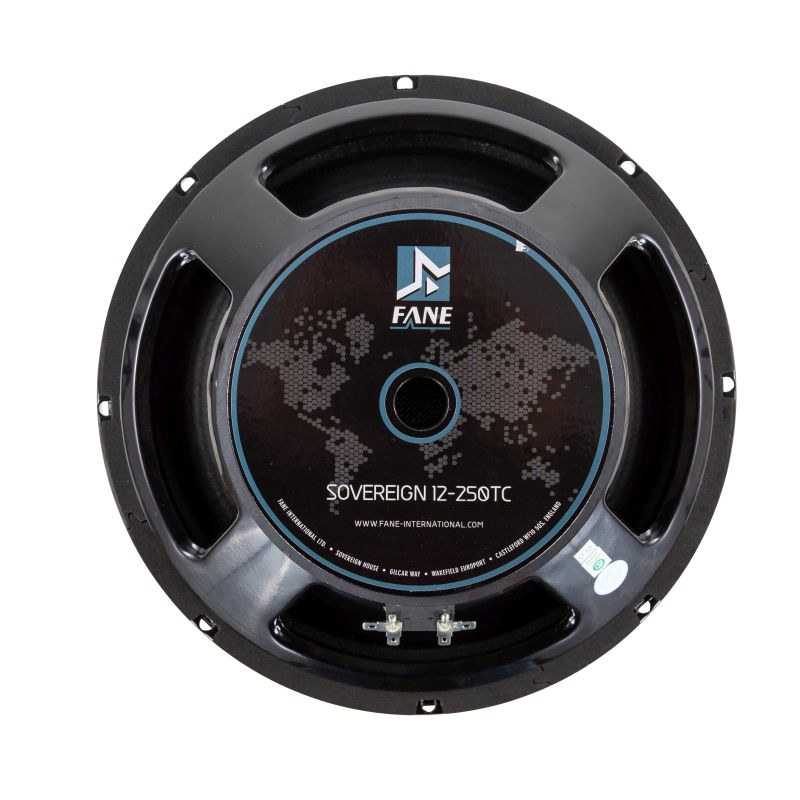

Fane Sovereign 12-250TC
  • Fane Sovereign 12-250TC
  • Fane Sovereign 12-250TC

Cere mai multe informatii despre Fane Sovereign 12-250TC la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 388,09 Lei
Fără TVA: 326,13 Lei
6 bucati in stoc
Producător: Fane
Cod produs: Fane Sovereign 12-250TC
Puncte de recompensă: 6
-
+

Electro Acoustic Specifications:



  • Nominal Chassis Diameter 12" / 304.8 mm
  • Impedance 8 Ohm
  • Power Handling 250 w (A.E.S.)
  • Peak Power (6dB Crest Factor) 1000 w (A.E.S.)
  • Usable Frequency Range -6dB 45 Hz - 17 kHz
  • Sensitivity (1 w - 1 m) 98 dB
  • Moving Mass inc. Air Load 52 grams
  • Minimum Impedance Zmin 7.4 Ohm
  • Effective Piston Diameter 261.87 mm
  • Peak Displacement Volume of Cone Vd 0.165 litres
  • Magnetic Gap Depth 7.87 mm
  • Flux Density 1.1 Tesla
  • Coil Winding Height 10.92 mm
  • Voice Coil Diameter 50.8 mm



Thiele Small Parameters:



  • FS Hz 50 Hz
  • RE Ohms 7.2 Ohm
  • Qms 7.6
  • Qes 0.72
  • Qts 0.64
  • Vas Ltr 78.06 litres
  • Vd litres 0.165 litres
  • CMS (mm/N) 0.195 mm/N
  • BL T/m 13 T/m
  • Mms (grms) 52 grams
  • Xmax (mm) 5.25 mm
  • Sd (cm2) 530.9 cm2
  • Efficiency % 1.30%
  • Le (1k Hz) 1.56 mH



Mounting / Shipping Information:



  • Overall Diameter 12" / 304.8 mm
  • Width Across Flats N/A
  • Flange Height 6.9 mm
  • Baffle Hole Diameter F/M 285.75 mm
  • Baffle Hole Diameter R/M 285.75 mm
  • Gasket Supplied Front & Rear
  • Fixing Holes 8x 7.0 mm on 298 mm PCD
  • Depth 137.92 mm
  • Weight 4.3 kg
  • Recommended Enclosure Volume 30 -75 litres
  • Shipping Weight 5.15 kg
  • Packing Carton Dimensions 165 x 330 x 330 mm

Materials Of Construction:



  • Former Material 1.1 Tesla
  • Voice Coil Copper Clad Aluminium Wire
  • Magnet Material Ferrite
  • Chassis Pressed Steel
  • Cone Paper
  • Surround / Edge Termination Polyvinyl Damped Dbl. Half Roll
  • Linen
  • Dust Dome Paper
  • Connectors Solder Tag
  • Polarity Positive voltage at red terminal causes forward motion of cone

Descarca fisa tehnica click to download pdf
