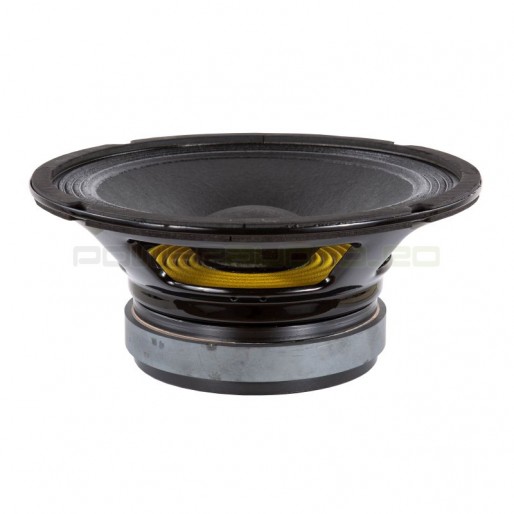

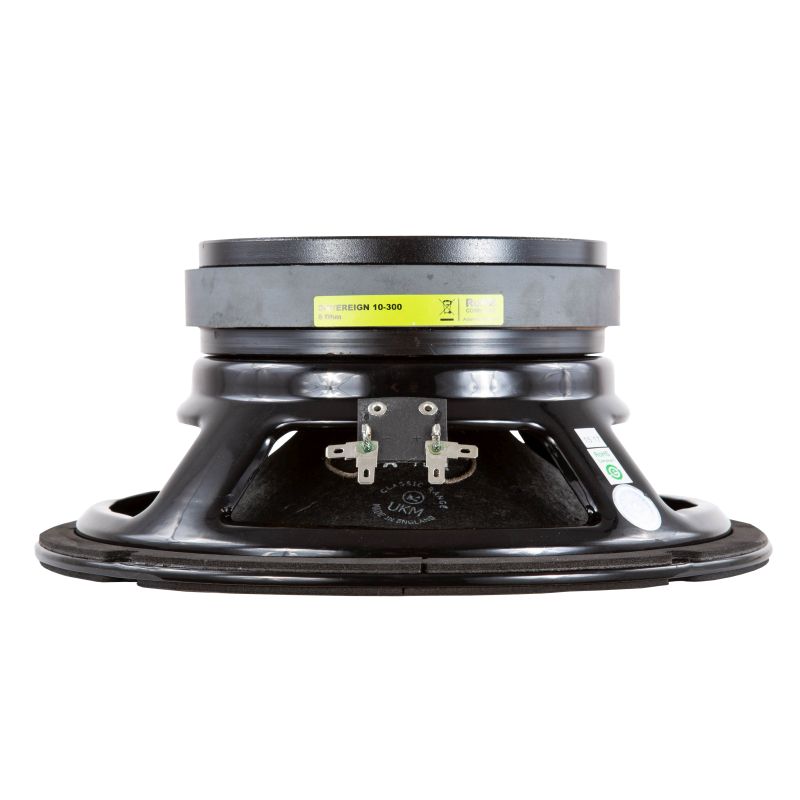

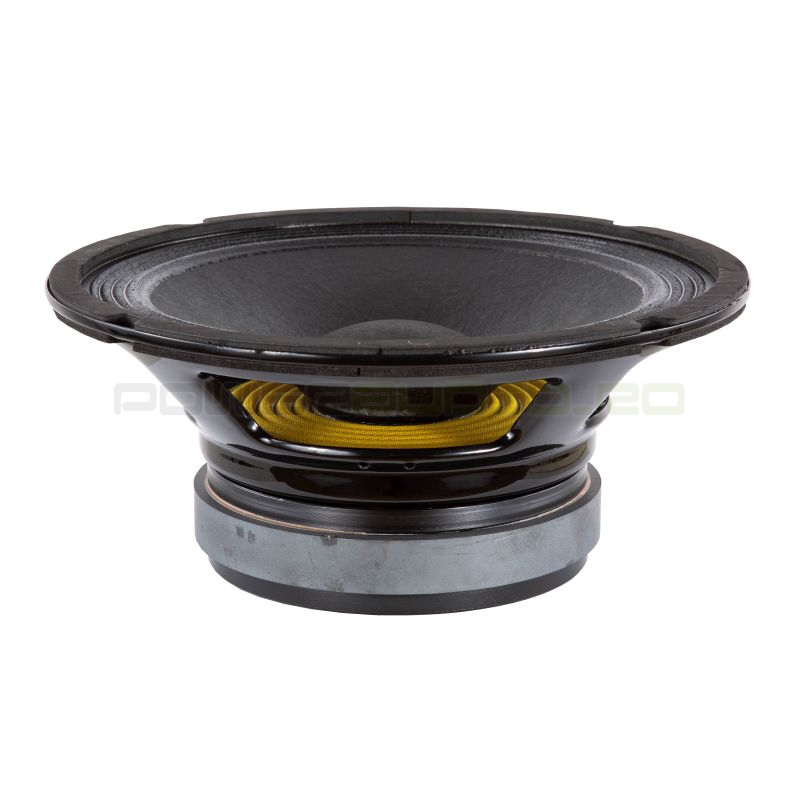

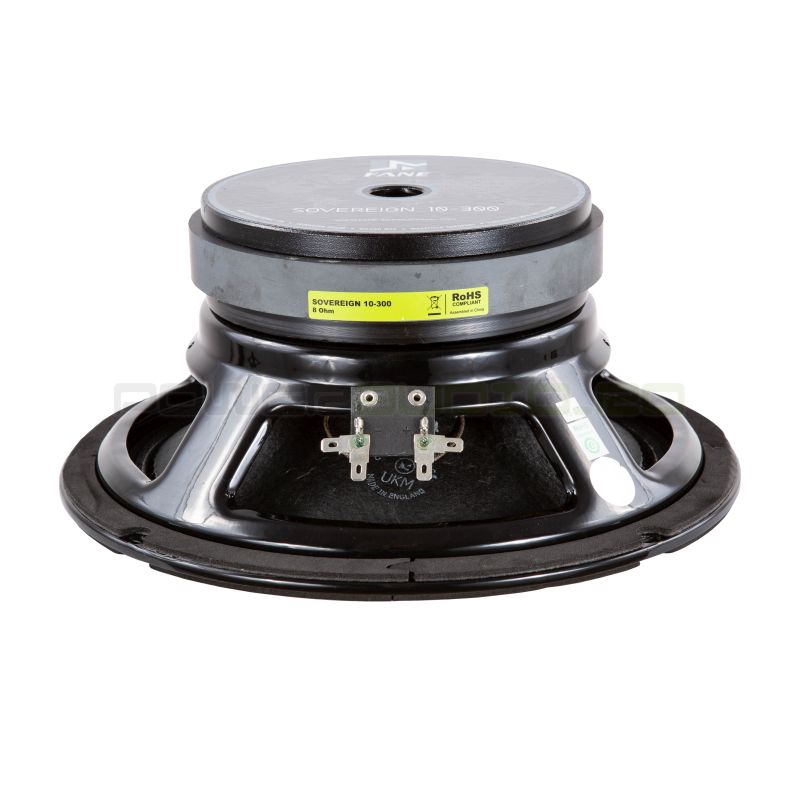

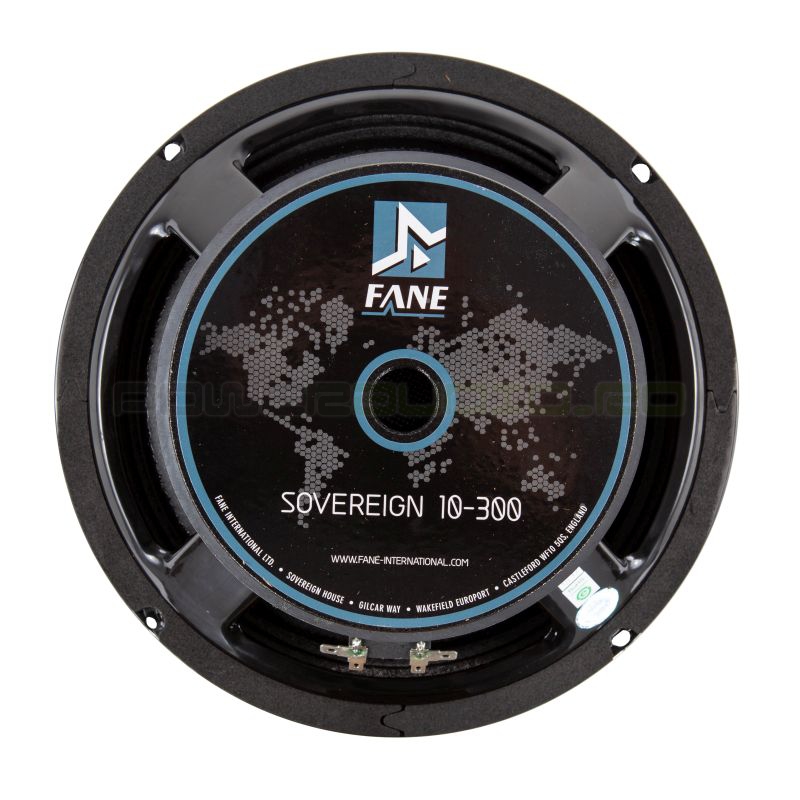

Fane Sovereign 10-300

Mounting Information

• Overall Diameter 258 mm / 10.15"
• Baffle Hole (Front Mount) 234 mm / 9.21"
• Flange Height 7 mm / 0.27"
• Mounting Hole Quantity and Diameter 4 x 6.5 mm
• Mounting Hole P.C.D. 246.88 mm
• Overall Height 113 mm / 4.44"
• Nett Weight 4.85 kg
• Packing Carton Dimensions 150 x 280 x 280 mm
• Shipping Weight 5.45 kg

Thiele Small Parameters


•
•
•
•
•
•
•
•
•
•
•
•
•
• FS Hz 57 Hz
• RE Ohms 5.7 O
• Qms 4.65
• Qes 0.377
• Qts 0.35
• Vas Litres 53.2
• Vd Litres 1.07
• CMS mm/N 0.245
• BL T/m 14.5
• Mms g 31.82
• Xmax mm 3.75
• Sd cm2 426
• Efficiency % 3

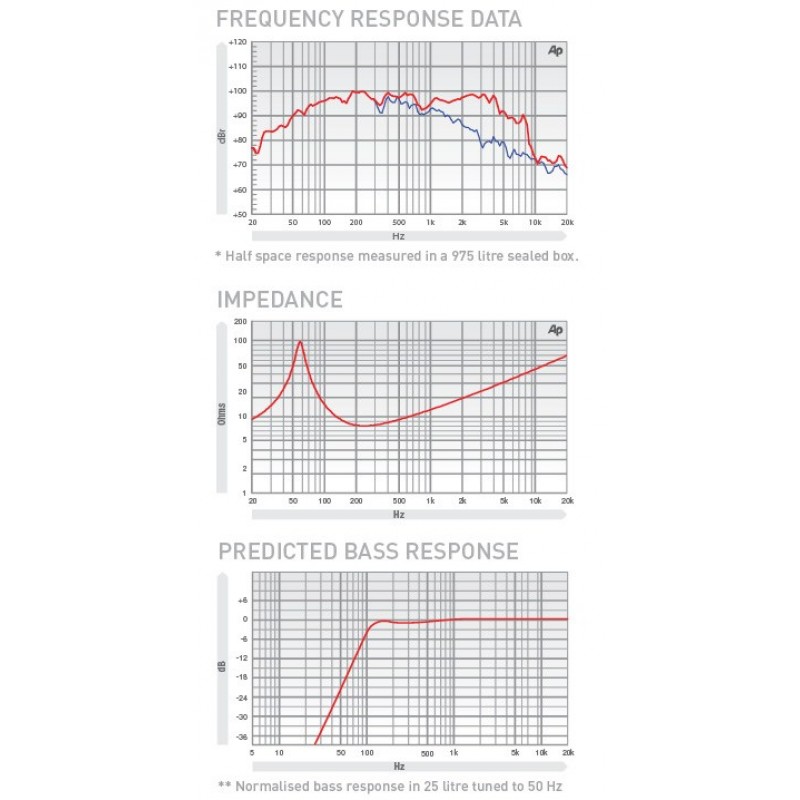

Electro Acoustic Specifications:

• Nominal Chassis Diameter 10" / 254 mm
• Impedance 8 Ohms
• Power Handling 300 w (A.E.S.)
• Peak Power (6dB Crest Factor) 1200 w (A.E.S.)
• Usable Frequency Range -6dB 45 Hz - 5 kHz
• Sensitivity (1 w - 1 m) 97.5 dB
• Moving Mass inc. Air Load 37 grams
• Minimum Impedance Zmin 6.8 Ohms
• Effective Piston Diameter 214.88 mm / 8.46"
• Peak Displacement Volume of Cone Vd 0.2 litres
• Magnet Weight 56 oz
• Magnetic Gap Depth 10 mm / 0.39"
• Flux Density 1.0 Tesla
• Coil Winding Height 18 mm / 0.70"
• Voice Coil Diameter 63.5 mm / 2.5"
