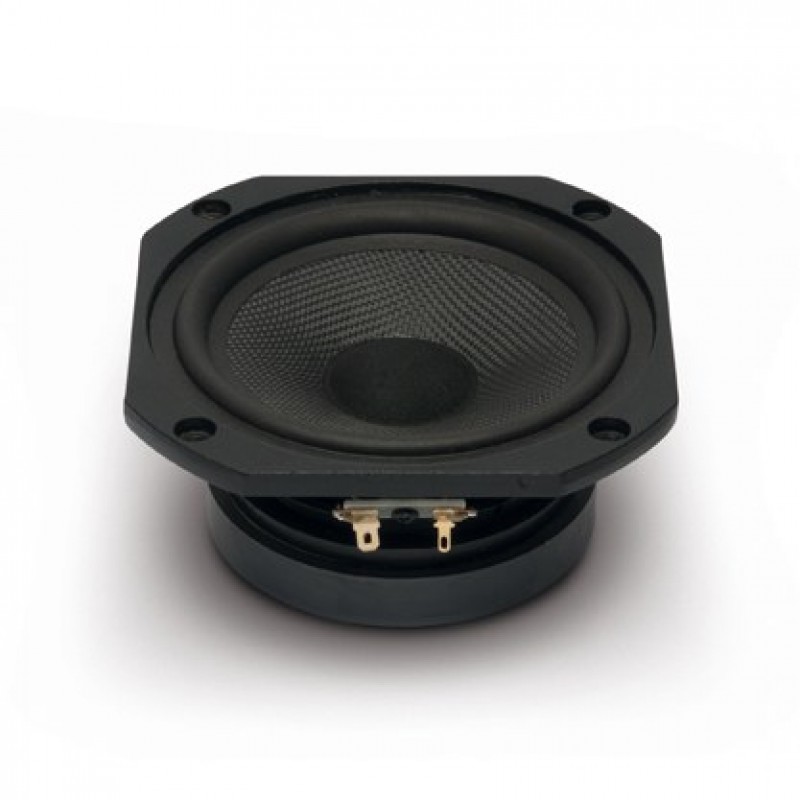

Fane Studio 5FRK
  • Fane Studio 5FRK
  • Fane Studio 5FRK
  • Fane Studio 5FRK
  • Fane Studio 5FRK
  • Fane Studio 5FRK
  • Fane Studio 5FRK
  • Fane Studio 5FRK
  • Fane Studio 5FRK
  • Fane Studio 5FRK

Cere mai multe informatii despre Fane Studio 5FRK la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 262,96 Lei
Fără TVA: 220,98 Lei
2 bucati in stoc
Producător: Fane
Cod produs: Fane Studio 5FRK
Puncte de recompensă: 5
-
+

Specifications:


  • Nominal Chassis Diameter 5' / 127 mm
  • Impedance 4 /8 /16 Ohms available
  • Power Handling 50 w (A.E.S.)
  • Peak Power (6dB Crest Factor) 200 w (A.E.S.)
  • Usable Frequency Range -6dB 65 Hz - 7 kHz
  • Sensitivity (1 w - 1 m) 90.5 dB
  • Moving Mass inc. Air Load 7.9 grams
  • Minimum Impedance Zmin 7.7 Ohms
  • Effective Piston Diameter 4.2' / 106.68 mm
  • Peak Displacement Volume of Cone Vd 0.022 litres
  • Magnet Weight 18 oz
  • Magnetic Gap Depth 0.25' / 6.35 mm
  • Flux Density 1.42 Tesla
  • Coil Winding Height 0.31' / 8 mm



Thiele Small Parameters:


  • FS Hz 58 Hz
  • RE Ohms 6.2 Ohms
  • Qms 7.5
  • Qes 0.38
  • Qts 0.36
  • Vas Ltr 10.9 litres
  • Vd litres 0.022 litres
  • BL T/m 6.85 T/m
  • Mms (grms) 7.9 grams
  • Xmax (mm) 2.5 mm
  • Sd (cm2) 89.74 cm2
  • Efficiency % 0.60%
  • Le (1k Hz) 0.882 mH









    •
    •
    •
    •
    •
    • Mounting and Shipping Information:

      • Overall Diameter 6" / 152.4 mm
      • Width Across Flats 5.25" / 133.35 mm
      • Flange Height 0.27" / 6.9 mm
      • Baffle Hole Diameter F/M 4.63" / 117.60 mm
      • Baffle Hole Diameter R/M 4.50" / 114.3 mm
      • Gasket Supplied Front & Rear
      • Fixing Holes 4x 0.218" / 5.5 diam x 5.4688" / 138.8mm PCD
      • Depth 2.63" / 66.80 mm
      • Weight 3.1 lb / 1.37 kg
      • Recommended Enclosure Volume 0.7 - 3.0 cu ft / 2 - 10 litres
      • Shipping Weight 3.1 lb / 1.37 kg
      • Packing Carton Dimensions 156 x 102 x 143 mm


      Materials Of Construction:

      • Former Material Resin Bonded Glass Fibre
      • Voice Coil Polyamide-imide Coated Copper
      • Magnet Material Ferrite
      • Chassis Die-cast Aluminium
      • Cone Kevlar
      • Surround / Edge Termination Rubber Roll
      • Dust Dome Linen
      • Connectors 0.125' Tab / Solder
      • Polarity Positive voltage at red terminal causes forward motion of cone
