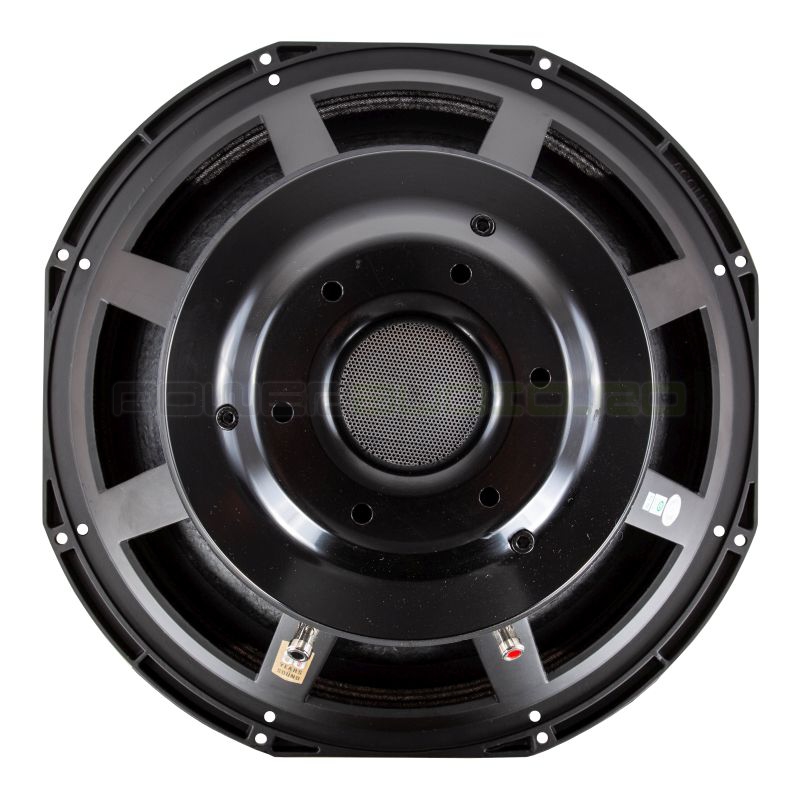

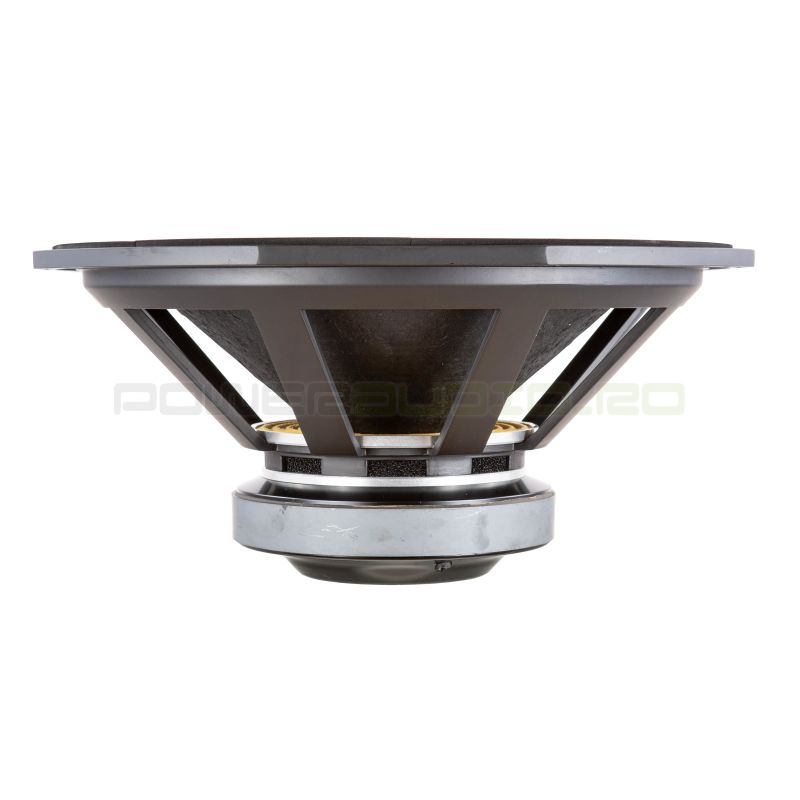

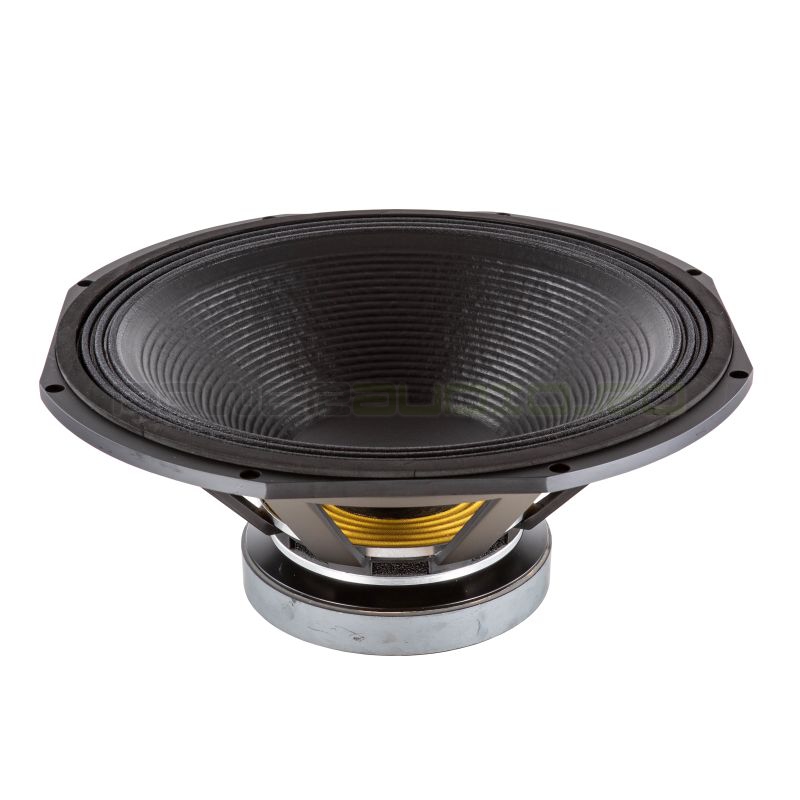

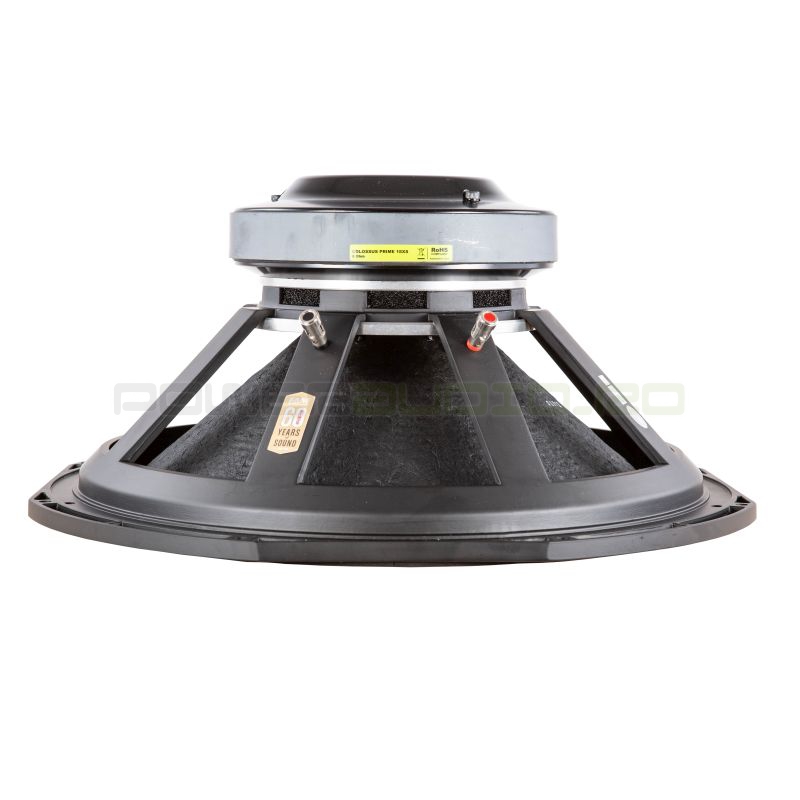

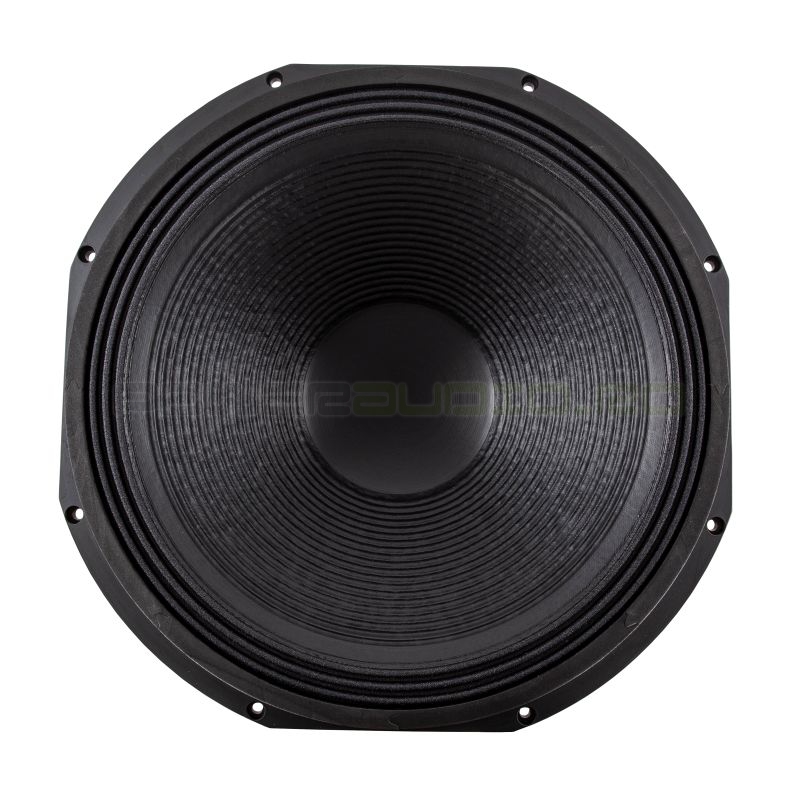

Sale Fane Colossus PRIME 18XS
  • Fane Colossus PRIME 18XS
  • Fane Colossus PRIME 18XS

Cere mai multe informatii despre Fane Colossus PRIME 18XS la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 1.653,31 Lei 1.323,14 Lei
Fără TVA: 1.111,88 Lei
4 bucati in stoc
Producător: Fane
Cod produs: Fane Colossus PRIME 18XS
Puncte de recompensă: 25
-
+

Electro Acoustic Specifications:


  • Nominal Chassis Diameter: 18"
  • Impedance: 8 Ohms
  • Power Handling: 1200W (A.E.S.)
  • Peak Power (6dB Crest Factor): 4800W (A.E.S.)
  • Usable Frequency Range -6dB: 35 Hz - 500 Hz
  • Sensitivity (1W / 1m): 100 dB
  • Moving Mass inc. Air Load: 177 grams
  • Minimum Impedance Zmin: 6.5 Ohms
  • Effective Piston Diameter: 15.43" / 392 mm
  • Peak Displacement Volume of Cone Vd: 1.45 litres
  • Magnet Weight: 120 oz
  • Magnetic Gap Depth: 11mm / 0.43"
  • Flux Density: 1.1 Tesla
  • Coil Winding Height: 30mm / 1.18"
  • Voice Coil Diameter: 4.0" / 101.6mm



Thiele Small Parameters:


  • FS Hz: 33Hz
  • RE Ohms: 5.2 Ohms
  • Qms: 8.2
  • Qes: 0.404
  • Qts: 0.385
  • Vas Ltr: 257
  • Vd litres: 1.45
  • CMS (mm/N): 0.124
  • BL T/m: 22.4
  • Mms (grms): 188
  • Xmax (mm): 12
  • Sd (cm2): 1210
  • Efficiency %: 2.2
  • Le (1k Hz): 1.5mH



Materials Of Construction:


  • Former Material: Glass Fibre
  • Voice Coil: Copper 'sandwich' inside external windings
  • Magnet Material: Ferrite
  • Chassis: Die-cast Aluminium
  • Cone: Straight polycellulose Ribbed Cone
  • Surround / Edge Termination Polyvinyl Damped Multi Roll, Poly Cotton
  • Dust Dome: Solid Paper (Inverted)
  • Connectors: Push-button Spring Terminals
  • Polarity Positive Voltage at Red Terminal Causes Forward Motion of Cone



Mounting & Shipping Information:


  • Overall Diameter: 19.1" / 485mm
  • Width Across Flats: 18" / 457mm
  • Flange Height: 0.465" / 11.8mm
  • Baffle Hole Diameter F/M: 16.53" / 420mm
  • Baffle Hole Diameter R/M: 16.33" / 414mm
  • Gasket Supplied Front & Rear
  • Fixing Holes: 8 x 0.275" diam on 18.425
  • PCD / 8 x 0.275 diam on 17.25 PCD 8 x 7mm diam on 468 PCD / 8 x 7 diam on 438 PCD
  • Depth: 8.50" / 216mm
  • Weight: 33.75 lb / 15.3kg
  • Recommended Enclosure Volume: 4.41 -1 4.12 cu ft / 125 - 400 litres
  • Shipping Weight: 37.45 lb / 17kg
  • Packing Carton Dimensions 250 x 520 x 520mm

Descarca fisa tehnica click to download pdf
