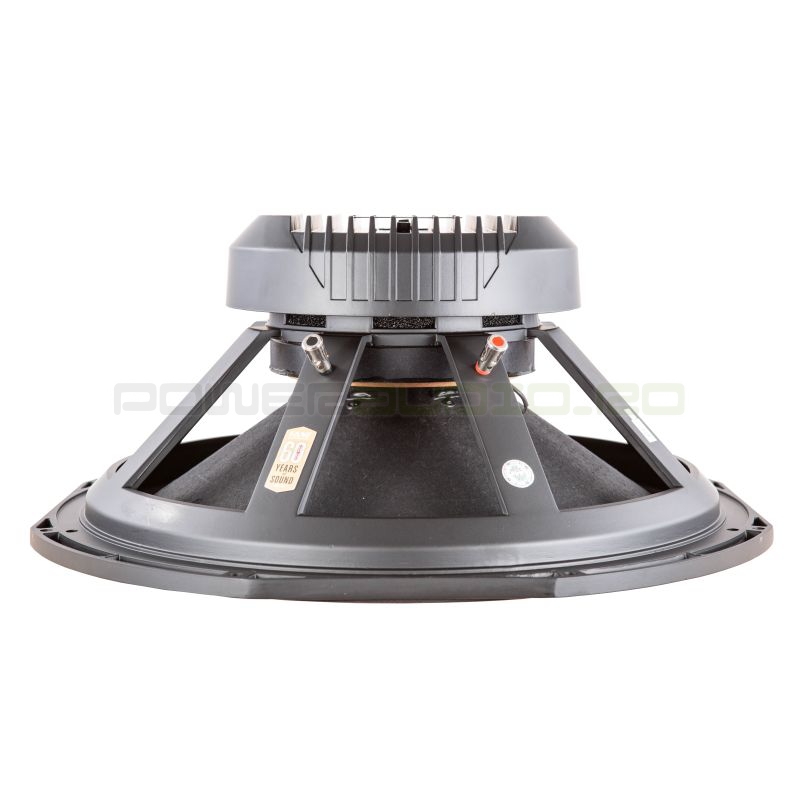

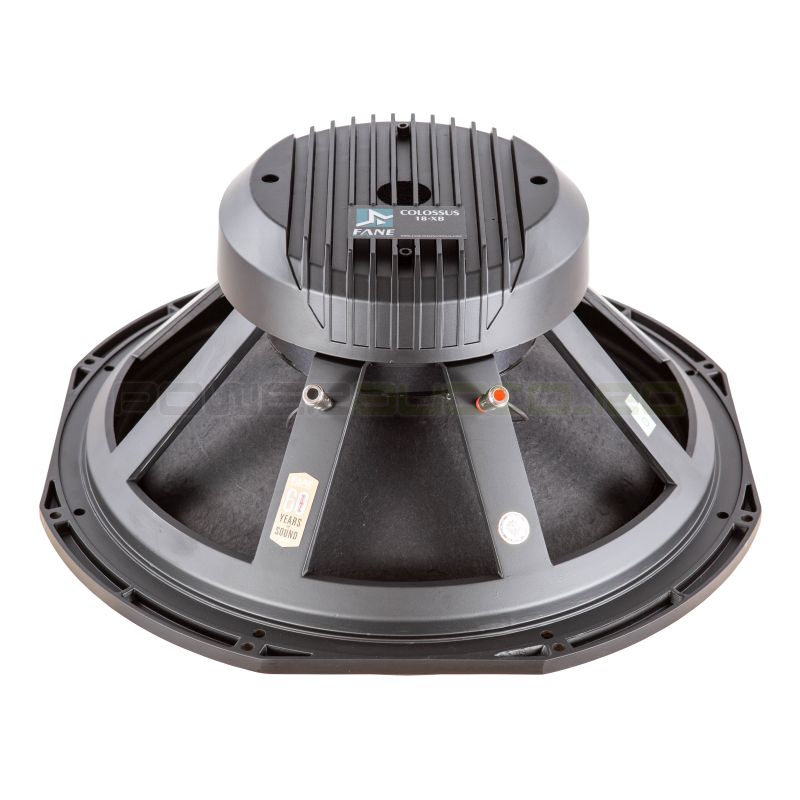

Fane Colossus 18XB
  • Fane Colossus 18XB
  • Fane Colossus 18XB
  • Fane Colossus 18XB
  • Fane Colossus 18XB
  • Fane Colossus 18XB
  • Fane Colossus 18XB
  • Fane Colossus 18XB
  • Fane Colossus 18XB
  • Fane Colossus 18XB
  • Fane Colossus 18XB
  • Fane Colossus 18XB

Cere mai multe informatii despre Fane Colossus 18XB la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 1.144,50 Lei
Fără TVA: 961,76 Lei
4 bucati in stoc
Producător: Fane
Cod produs: Fane Colossus 18XB
Puncte de recompensă: 22
-
+

MATERIALS OF CONSTRUCTION:


  • Former Material Glass Fibre
  • Voice Coil Copper "sandwich" inside outside windings
  • Magnet Material Ferrite
  • Chassis Die-cast Aluminium
  • Cone Paper
  • Surround / Edge Termination Polyvinyl Damped Dbl. Half Roll Linen
  • Dust Dome Paper
  • Connectors Push-button Spring
  • Terminals Polarity Positive Voltage at Red Terminal causes forward motion of cone



MOUNTING / SHIPPING INFORMATION:


  • Overall Diameter 19.1' / 485 mm
  • Width Across Flats 18' / 457 mm
  • Flange Height 0.465' / 11.8 mm
  • Baffle Hole Diameter F/M 16.53' / 420 mm
  • Baffle Hole Diameter R/M 16.33' / 414 mm
  • Gasket Supplied Front & Rear
  • Fixing Holes 8x 0.275" diam on 18.425" PCD
  • 8x 0.275" diam on 17.25" PCD
  • 8x 7 mm diam on 468 PCD
  • 8x 7 diam on 438.15 PCD
  • Depth 8.07" / 205 mm
  • Weight 31.29 lb / 14.2 kg
  • Recommended Enclosure Volume 4.41 - 14.12 cu ft / 125 - 400 litres
  • Shipping Weight 35.26 lb / 16 kg
  • Packing Carton Dimensions 250 x 520 x 520 mm



THIELE SMALL PARAMETERS:


  • FS Hz 33 Hz
  • RE 6.5 Ohms
  • Qms 5.77
  • Qes 0.358
  • Qts 0.337
  • Vas Ltr 236
  • Vd litres 0.803
  • CMS (mm/N) 0.13
  • BL T/m 25.9
  • Mms (grms) 173
  • Xmax (mm) 7.5
  • Sd (cm2) 1131
  • Efficiency % 2.3
  • Le (1k Hz) 1.99 mH



ELECTRO ACOUSTIC SPECIFICATIONS:


  • Nominal Chassis Diameter 18'
  • Nominal Impedance 8 Ohms
  • Power Handling 1000 w (A.E.S.)
  • Peak Power (6dB Crest Factor) 4000 w (A.E.S.)
  • Usable Frequency Range -6dB 35 Hz - 1.0 kHz
  • Sensitivity (1 w - 1 m) 99 dB
  • Moving Mass inc. Air Load 173 grams
  • Minimum Impedance Zmin 6.5 Ohms
  • Effective Piston Diameter 15.03' / 382 mm
  • Peak Displacement Volume of Cone Vd 1131 litres
  • Magnet Weight 120 oz
  • Magnetic Gap Depth 10 mm / 0.39"
  • Flux Density 1.2 Tesla
  • Coil Winding Height 23 mm / 0.90"
  • Voice Coil Diameter 4.0' / 101.6 mm

Descarca fisa tehnica click to download pdf
