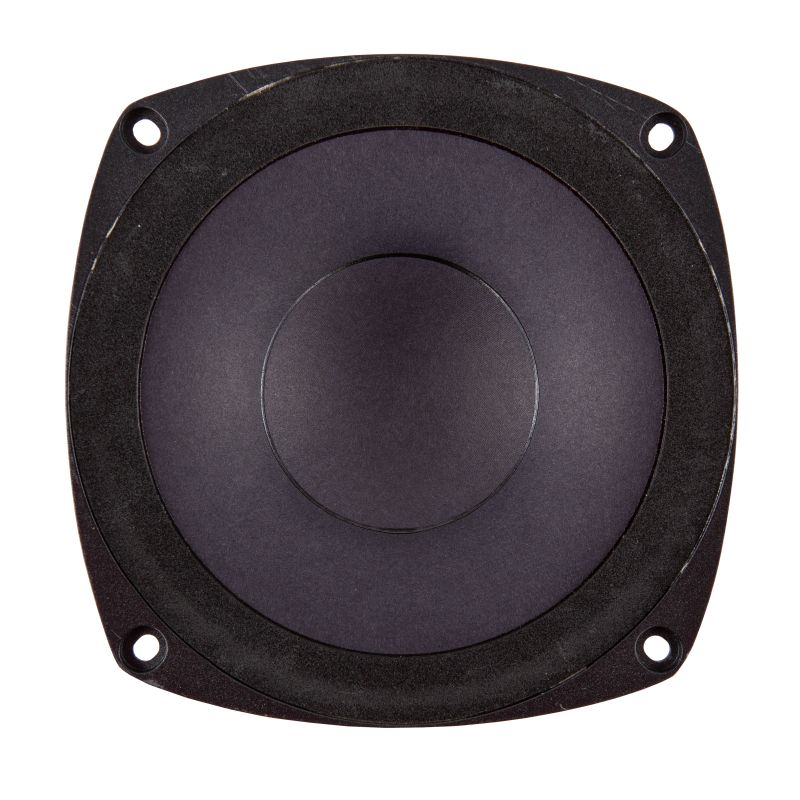

Sale  Celestion CF0617M

Cere mai multe informatii despre Celestion CF0617M la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 385,44 Lei 320,85 Lei
Fără TVA: 269,62 Lei
5 bucati in stoc
Producător: Celestion
Cod produs: Celestion CF0617M
-
+

General Specifications

Nominal diameter: 165mm/6.5in
Power rating: 200Wrms
Nominal impedance:8Ω
Sensitivity2 : 96dB
Frequency range: 300-7000Hz
Voice coil diameter: 45mm/1.5in
Chassis type: Cast Aluminium
Magnet type: Ferrite
Coil material:Edgewound copper clad aluminium
Former material: Glass Fibre
Cone material: Kevlar loaded paper
Surround material:Temperature resistant foam
Suspension: Single
Gap depth: 6mm/0.24in
Voice coil winding width:8.4mm/0.33in
Xmax3: 1.2 mm

Small Signal Parameters

D: 0.14m/5.5in
Fs: 116.6Hz
Mms: 11.59g/0.41oz
Qms: 6.93
Qes: 0.48
Mmd: 10.57g/0.373oz
Qts: 0.45
Re: 5.3Ω
Vas: 5.39lt/0.19ft3
BI: 9.68Tm
Cms: 0.16mm/N
Rms: 1.23kg/s
Le (at 1kHz): 1.73mH

Mounting Information

Overall diameter: Max 189mm/7.44in - Min 162mm/6.38in
Overall depth:78.5mm/3.1in
Cut-out diameter: 150mm/5.9in
Mounting slot dimensions:7.5x5.5mm/0.3x0.22in
Number of mounting slots: 4
Mounting PCD range: 173.5mm/6.83n
Unit weight: 1.9 kg
