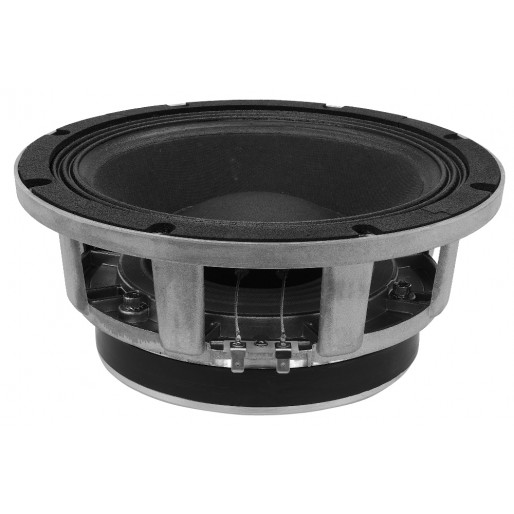

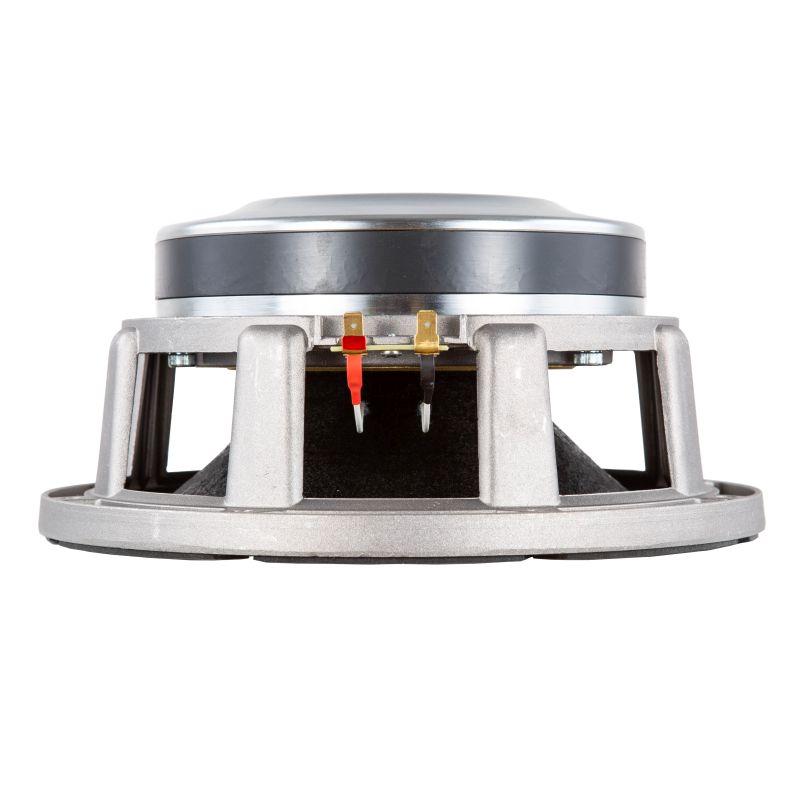

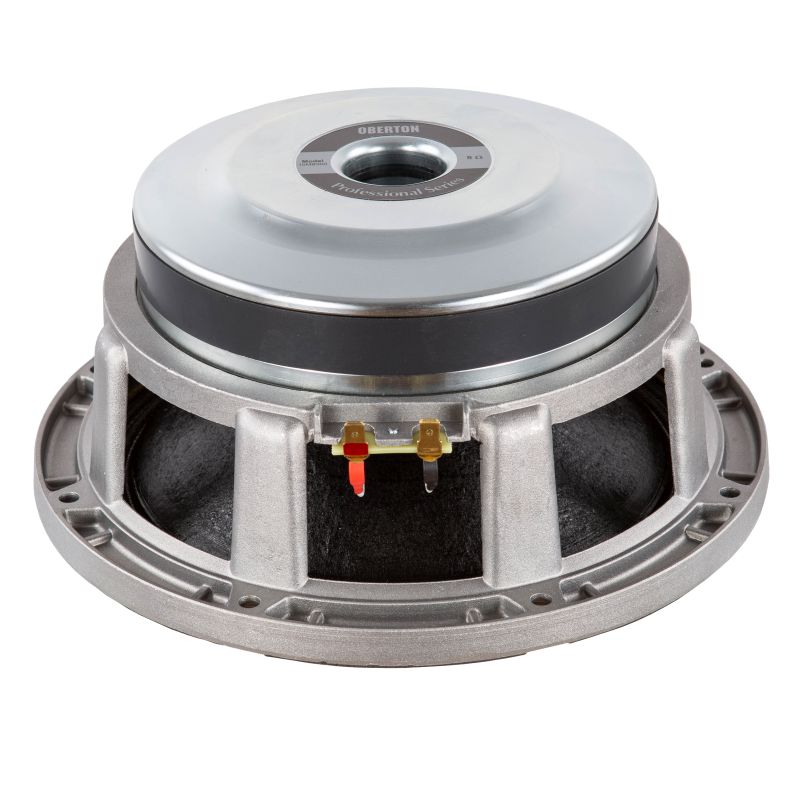

Oberton 10MB300
  • Oberton 10MB300
  • Oberton 10MB300
  • Oberton 10MB300
  • Oberton 10MB300
  • Oberton 10MB300
  • Oberton 10MB300
  • Oberton 10MB300
  • Oberton 10MB300

Cere mai multe informatii despre Oberton 10MB300 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 640,00 Lei
Fără TVA: 537,82 Lei
Dep. Ext. - livrare 10-14 zile
Producător: Oberton
Cod produs: Oberton 10MB300
Puncte de recompensă: 10
-
+

Application : Power midbass speaker

The 10MB300 loudspeaker is primary designed to be used in medium and long throw horn loaded systems. The special Kevlar paper cone guarantees reliable using in horns with compression chamber with ratio up to 3.5:1.



SPECIFICATIONS



THIELE-SMALL PARAMETERS

Nominal Diameter
Impedance
Minimum Impedance
Power Capacity AES ¹
Program Power ²
Sensitivity
Frequency Range
Voice Coil Diameter
Voice Coil Material
Voice Coil Former
Voice Coil Winding Depth
Magnet Gap Depth
Cone Material
Basket
Magnet
Flux Density

10"/262 inch/mm
8 Ohm

6.52 Ohm
400 W
800 W
(200-2000 Hz) 99 dB/W/m
80 - 2500 Hz
77 mm
Aluminium
Kapton™
15 mm
9 mm
Kevlar Paper
Die cast aluminium
Feritte
1.33 T

Resonance Frequency
Mechanical Efficiency Factor (Qms)
Electrical Efficiency Factor (Qes)
Total Q (Qts)
Equivalent Air Volume (Vas )
Diaphragm mass ind. airload (Mms)
Voice Coil Resistance Re
Effective Diagram Area (Sd)
Peak Linear Displacement of Diaphragm (Xmax)*
Mechanical Compliance of Suspension (Cms)
BL Product (BL)
V.C. Inductance at 1 kHz (Le)

64.70 Hz
9.66
0.251
0.244
22.75 Litres
38.13 grams
5.43 Ohms
317.3 cm2
±5.25 mm
0.159 mm/N
18.32 T.m
0.72 mH



MOUNTING INFORMATION

1. AES standard. Power is calculated on rated minimum impedance. Measurement is in 30 L box enclosure tuned 60 Hz using a 50-1000 Hz band limited pink noise test signal applied continuously for 2 hours.
2. Program power is defined as 3db greater than AES Power Capacity.

* Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.

Overall Diameter
Baffle Hole Diameter
Number of Mounting Holes
Bolt Circle Diameter
Overall Depth
Net Weight

262 mm
228 mm
8 with dia. 7 mm
244 mm
120 mm
6.8 kg


Descarca fisa tehnica click to download pdf
