Oberton 10M250

Cere mai multe informatii despre Oberton 10M250 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 546,00 Lei

Fără TVA: 458,82 Lei

la comanda - 6 Saptamani

Producător: Oberton
Cod produs: Oberton 10M250
Puncte de recompensă: 8

Adaugă in Wishlist Compară produs

0 opinii Spune-ţi opinia

Descriere Opinii (0)

Application : Power midrange speaker

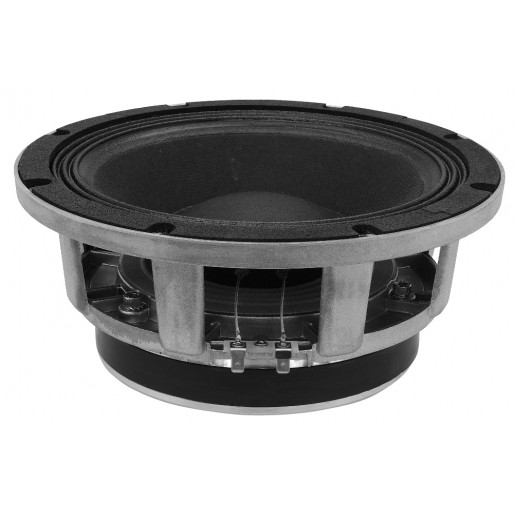

The 10M250 loudspeakers is designed as a power midrange speaker, providing high output and low distortion midrange from 250 Hz to 3 kHz. It features aluminium die cast frame, 169 mm magnet structure and curvilinear cone. 10M250 is suitable for application as the high power midrange in 3 way boxes including horn loading application.

SPECIFICATIONS		THIELE-SMALL PARAMETERS
Nominal Diameter Impedance Minimum Impedance Power Capacity AES ¹ Program Power ² Sensitivity Frequency Range Voice Coil Diameter Voice Coil Material Voice Coil Former Voice Coil Winding Depth Magnet Gap Depth Cone Material Basket Magnet Flux Density	10"/262 inch/mm 8 Ohm 7.17 Ohm 250 W 500 W (500-5000 Hz) 97 dB/W/m 70 - 5000 Hz 64 mm Aluminium Kapton™ 10 mm 9 mm Paper Die cast aluminium Ferrite 1.40 T	Resonance Frequency Mechanical Efficiency Factor (Qms) Electrical Efficiency Factor (Qes) Total Q (Qts) Equivalent Air Volume (Vas ) Diaphragm mass ind. airload (Mms) Voice Coil Resistance Re Effective Diagram Area (Sd) Peak Linear Displacement of Diaphragm (Xmax)* Mechanical Compliance of Suspension (Cms) BL Product (BL) V.C. Inductance at 1 kHz (Le)	76.65 Hz 14.62 0.285 0.280 23.05 Litres 26.82 grams 6.09 Ohms 317.3 cm2 ± 2.75 mm 0.161 mm/N 16.61 T.m 0.60 mH

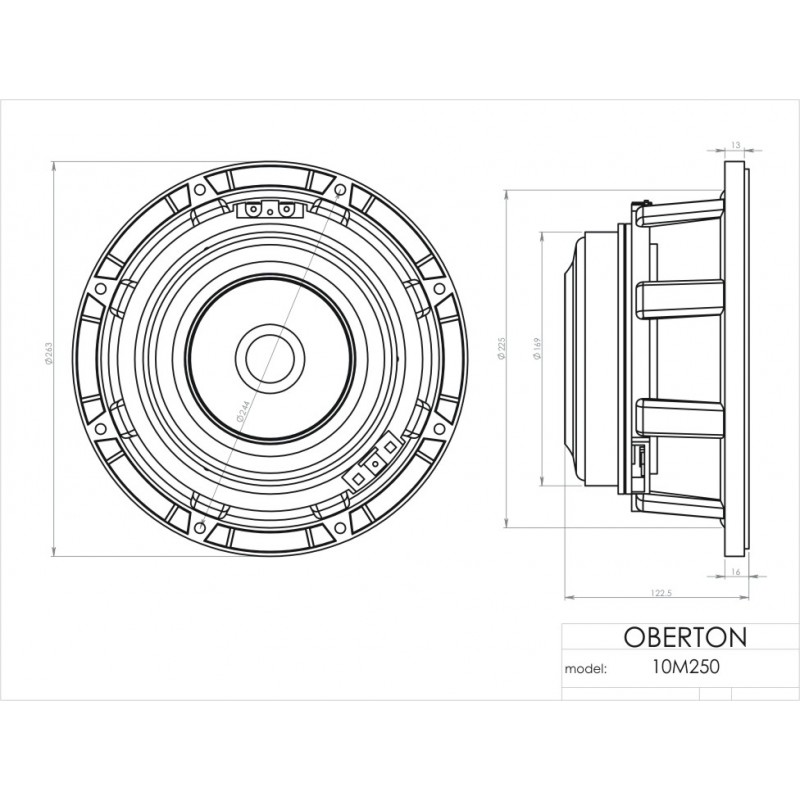

		MOUNTING INFORMATION
1. AES standard. Power is calculated on rated minimum impedance. Measurement is in 30 L box enclosure tuned 60 Hz using a 50-1000 Hz band limited pink noise test signal applied continuously for 2 hours. 2. Program power is defined as 3db greater than AES Power Capacity. * Linear Mathematical Xmax is calculated as: (Hvc - Hg)/2 + Hg/4 where Hvc is the voice coil depth and Hg is the gap depth.		Overall Diameter Baffle Hole Diameter Number of Mounting Holes Bolt Circle Diameter Overall Depth Net Weight	262 mm 228 mm 8 with dia. 7 mm 244 mm 122.5 mm 6.6 kg
