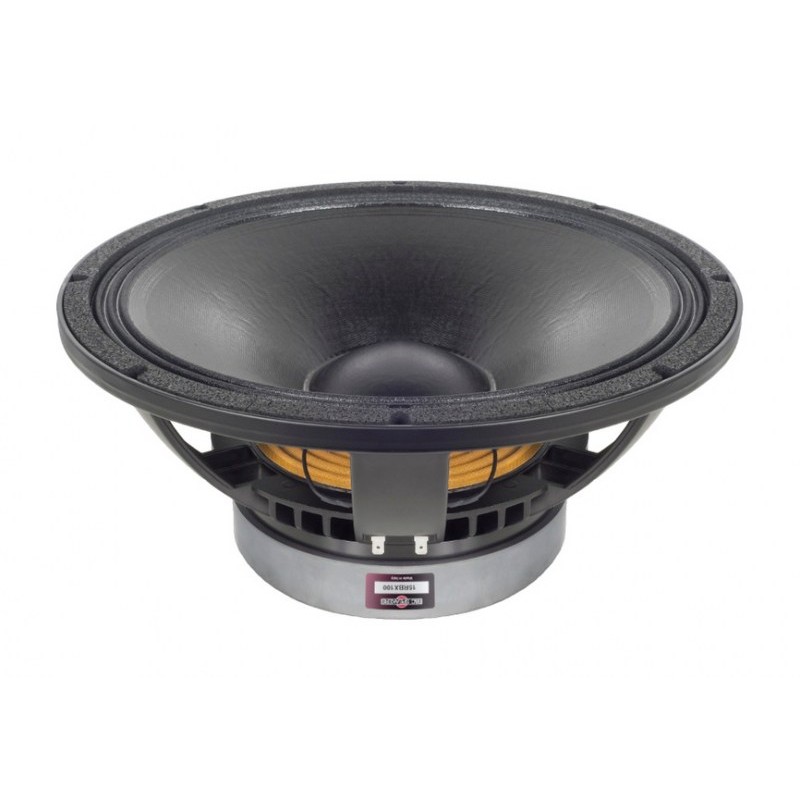

B&C 15RBX100

Specifications

• Nominal diameter 380 mm (15.0 in)
• Nominal impedance 8 ohms
• Minimum impedance 6.4 ohms
• Nominal power handling 1000 W
• Continuous power handling 2000 W
• Sensitivity (1W/1m) 95.0 dB

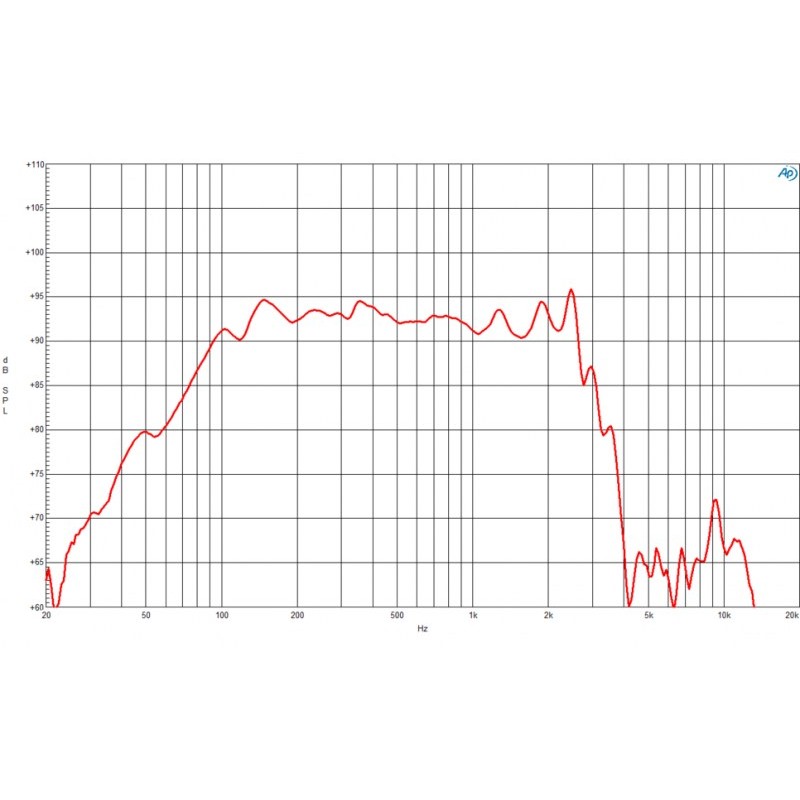

• Frequency range 40 - 3000 Hz
• Voice coil diameter 100 mm (4.0 in)
• Winding material Copper
• Former material Glass Fibre
• Winding depth 25 mm (1 in)
• Magnetic gap depth 11 mm (0.43 in)
• Flux density 1.1 T

Design

• Surround shape Triple Roll
• Cone shape Curvilinear
• Magnet material Ferrite
• Spider Double Silicone
• Pole design T-Pole
• Woofer cone treatment WP Waterproof Both Sides
• Recommended enclosure 85.0 dm3 (3.0 ft3)
• Recommended tuning 45 Hz

Parameters

• Fs 44 Hz
• Re 5.3 ohms
• Qes 0.4
• Qms 5.65
• Qts 0.38
• Vas 100.0 dm3 (3.5 ft3)
• Sd 908.0 cm2 (140.74 in2)
• η₀ 2.0 %
• Xmax 9.0 mm
• Xvar 10.0 mm
• Mms 154 g
• Bl 24.0 Txm
• Le 1.2 mH
• EBP 110 Hz

Mounting And Shipping Info

• Overall diameter 393 mm (15.47 in)
• Bolt circle diameter 374 mm (14.72 in)
• Baffle cutout diameter 354.0 mm (13.94 in)
• Depth 173 mm (6.81 in)
• Flange and gasket thickness 16 mm (0.62 in)
• Air volume occupied by driver 3.5 dm3 (0.12 ft3)
• Net weight 11.7 kg (25.79 lb)
• Shipping units 1
• Service Kit RCK15RBX1008
