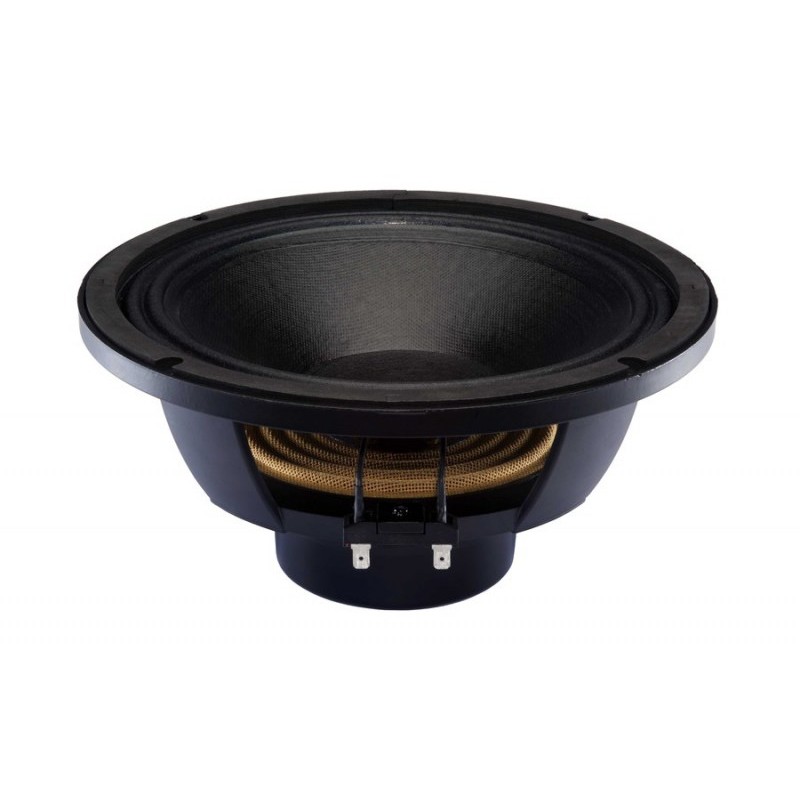

B&C 10MBX64

Specifications:


• Nominal diameter 250 mm (10.0 in)
• Nominal impedance 8 ohms
• Minimum impedance 6.5 ohms
• Nominal power handling 350 W
• Continuous power handling 700 W
• Sensitivity (1W/1m) 99.0 dB
• Frequency range 65 - 6000 Hz
• Voice coil diameter 64 mm (2.5 in)
• Winding material Aluminium
• Former material Glass Fibre
• Winding depth 13 mm (0.51 in)
• Magnetic gap depth 8 mm (0.31 in)
• Flux density 1.25 T

Design:


• Surround shape Double Roll
• Cone shape Radial
• Magnet material Neodymium Inside Slug
• Spider Single
• Pole design T-Pole
• Woofer cone treatment Hydrophobic Treatment

Parameters:


• Fs 65 Hz
• Re 5.4 ohms
• Qes 0.28
• Qms 4.0
• Qts 0.26
• Vas 26.0 dm3 (0.92 ft3)
• Sd 346.0 cm2 (53.63 in2)
• Reference efficiency 3.1 %
• Xmax 4.5 mm
• Xvar 5.0 mm
• Mms 33 g
• Bl 17.1 Txm
• Le 0.44 mH
• EBP 232 Hz

Mounting And Shipping Info:


• Overall diameter 261 mm (10.28 in)
• Bolt circle diameter 245 mm (9.65 in)
• Baffle cutout diameter 230.0 mm (9.06 in)
• Depth 128 mm (5.04 in)
• Flange and gasket thickness 17 mm (0.67 in)
• Air volume occupied by driver 1.5 dm3 (0.05 ft3)
• Net weight 3.2 kg (7.05 lb)
• Shipping weight 3.8 kg (8.38 lb)
• Shipping box 330x330x160 mm (12.99x12.99x6.30 in)
• Service Kit RCK10MBX648
