RedCatt CX10F140 - 8ohm

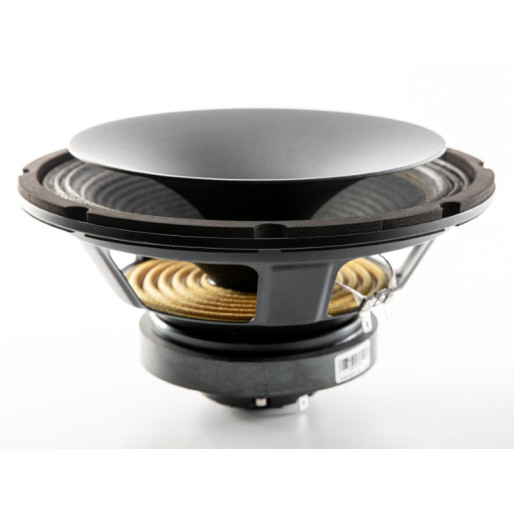

REDCATT CX10F140 - 8 Ohm Co-axial

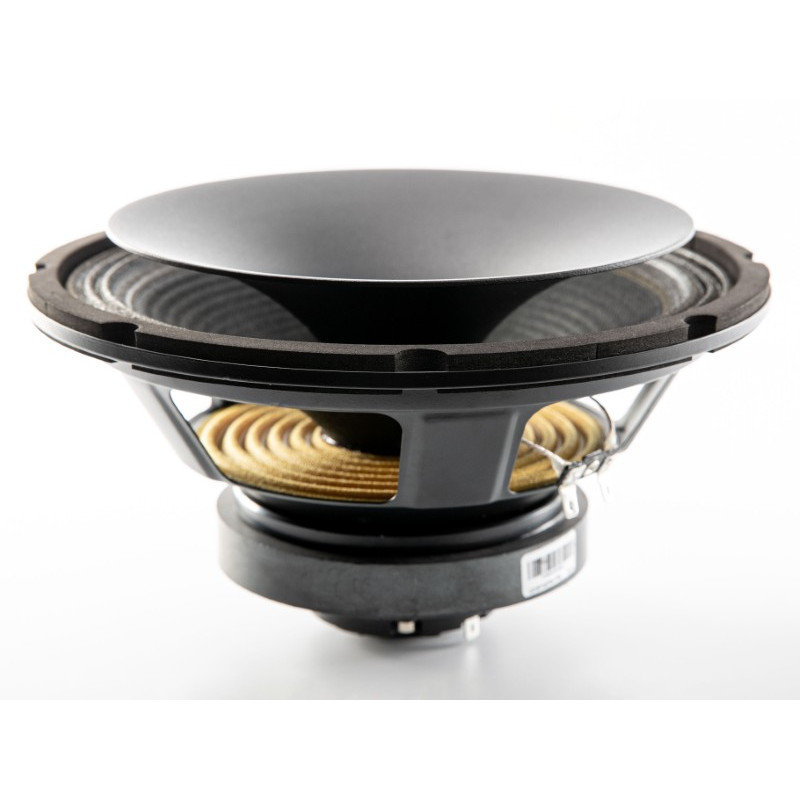

Key Features

    LF and HF integrated ferrite-neodymium magnetic circuit
    Aluminum symmetrical horn
    Good off-axes frequency response

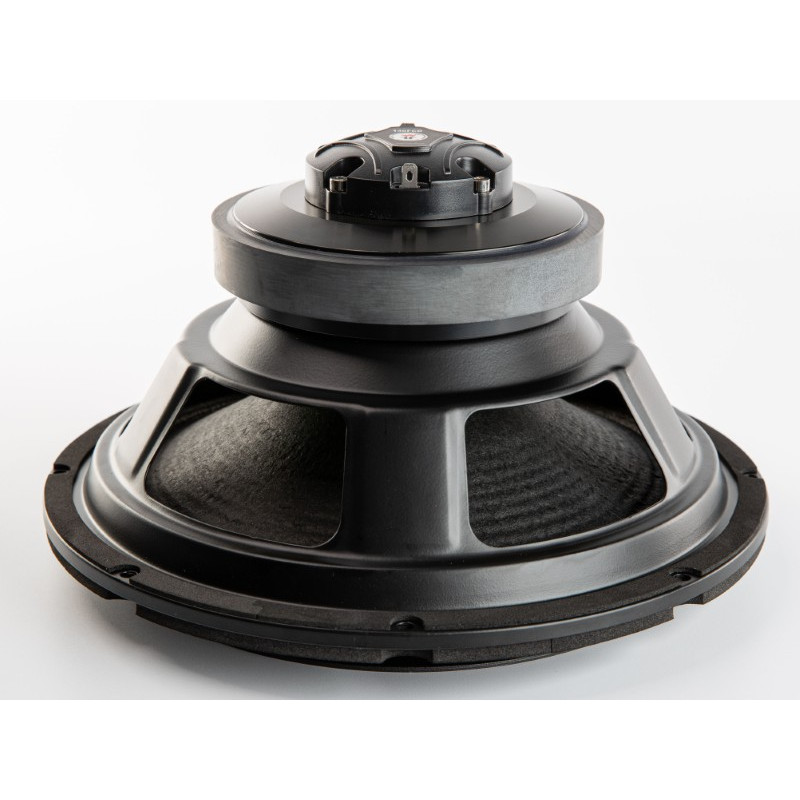

Design Notes

The CX10F-140F is a high efficiency, (95dB 1watt / 1 meter) 8-inch coaxial speaker with very linear frequency response characteristics and high power handling capability. The mid-woofer utilizes REDCATT developed paper pulp cone that has proven its performance in many ours successful designs. The HF section was designed around our most successful dome assembly as used in 140FCD and has integrated symmetrical aluminum horn. The combination of used materials with our state of the art quality production yields in well performing driver even in the most demanding and extreme weather conditions. Magnetic circuit design REDCATT engineers have developed ferrite-neodymium based magnetic circuit, capable of delivering the highest level of performance in a small form factor. The combination of ferrite and neodymium delivers an excellent magnetic performance. The magnetic circuit design is optimized to generate the minimum amount of flux modulation, providing exceptional stability. Aluminum demodulation ring is assembled in the HF section.

Specifications
General Specs

    Nominal Diameter: 10 inch
    Rated Impedance: 8 Ohm

Power Handling

    AES Power: 200/30 Watts
    Program Power: 400/60 Watts

Voice Coil

    Diameter: 2/1.4 inch
    Winding wire : CCAW
    Former: Glass Fiber/kapton
    Winding height: 12/2.5 mm

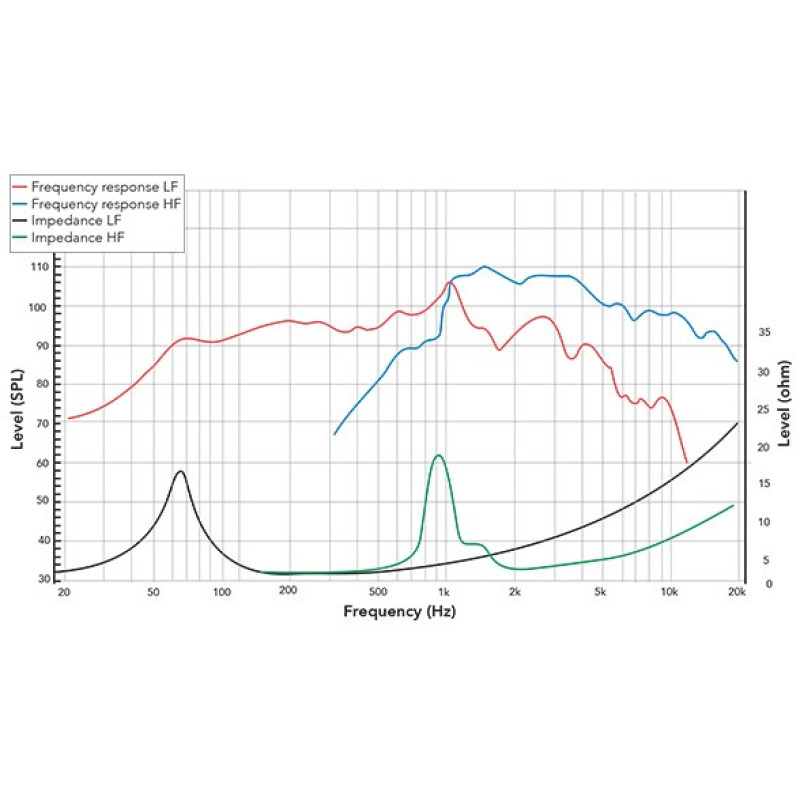

T/S Parameters

    Resonant frequency: 75Hz / 1000 Hz
    Re: 5.5ohm / 5.5 Ohm
    Qes: 0,75
    Qms: 5,03
    Qts: 0,65
    VAS: 24.2L
    Sd: 346.4cm2
    Mms: 31.2g
    BL: 10.36
    Le: 0,49
    Sensivity: 95,03 dB

Design Details

    Surround material: Fabric/Polymer
    Cone material: Paper/Polymer
    Spider: Nomex/n/a
    Plate thickness: 8 mm
    Peak to peak linear cone displacement: 10 mm

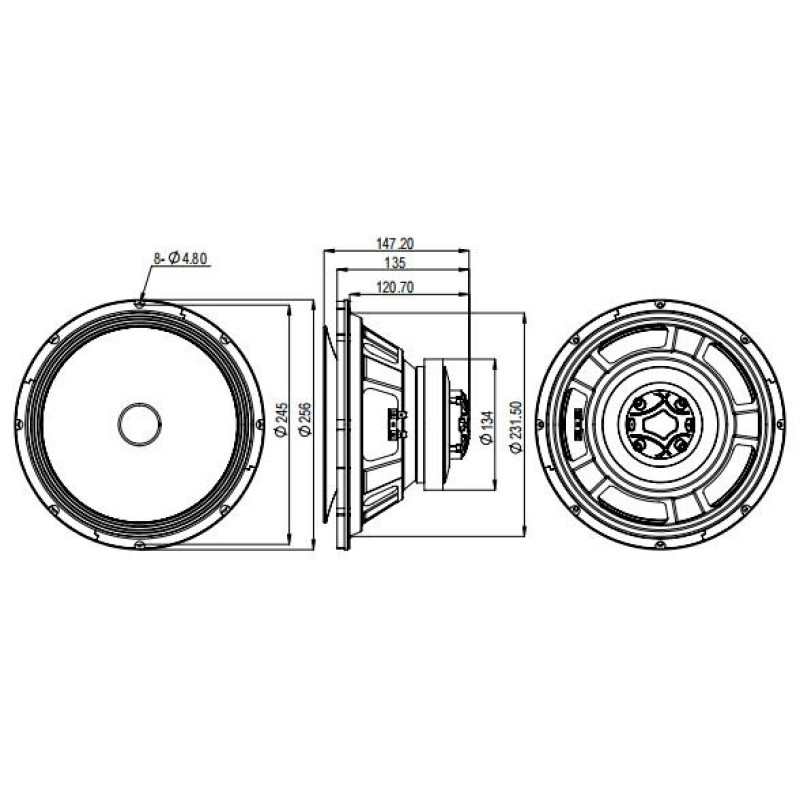

    Overall diameter: 256 mm
    Bolt circle diameter: 245 mm
    Baffle cutout dia: 231,5 mm
    Number of mounting holes: 8
    Depth (flange to rear): 120,7 mm
    Net weight: 3.1kg
