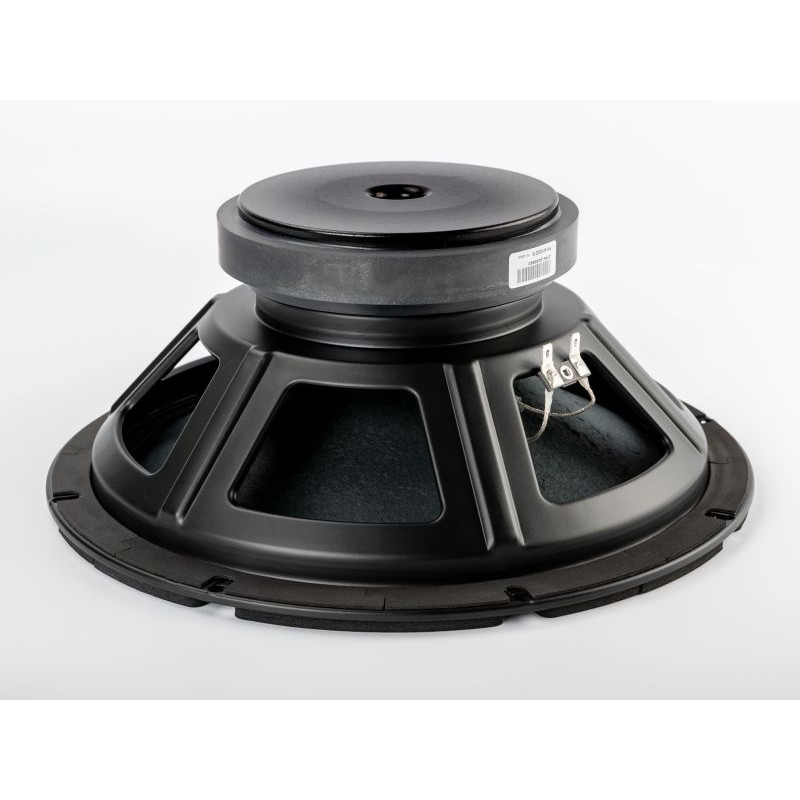

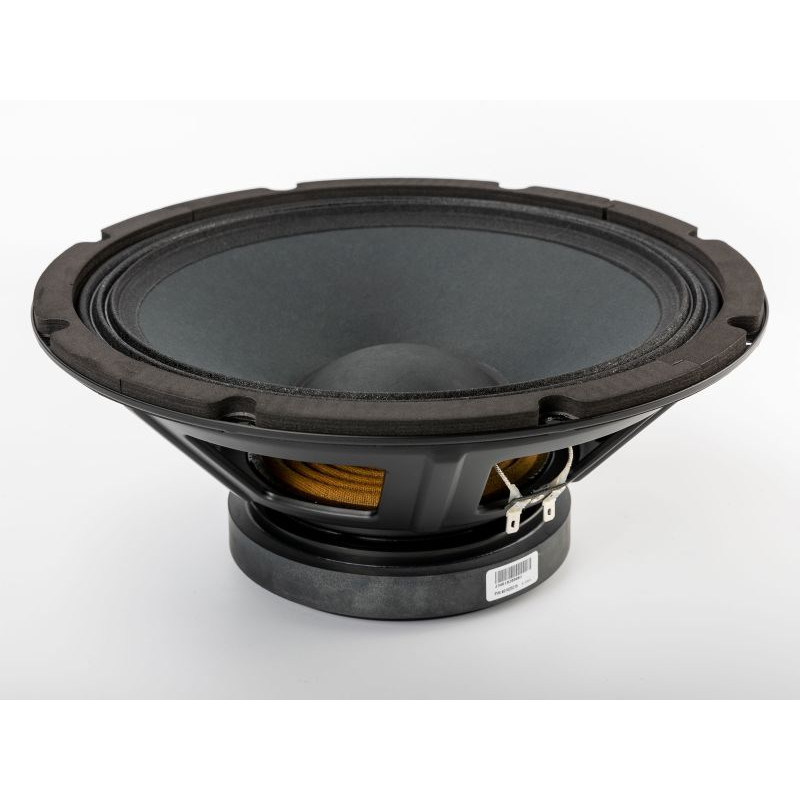

RedCatt 121FIND - 4ohm

REDCATT 121FIND - 4 Ohm Mid-woofer

Key Features

    EXTENDED FREQUENCY RESPONSE
    Proven cost effective design
    Good power handling, nomex spider, water-repellent & non-flammable paper cone

Design Notes

The 121FIND is a high efficiency, (96.5 dB 1watt/ 1 meter) 12inch woofer with incredibly linear frequency response characteristics, high power handling capability while generating low harmonic distortion artifacts. 121FIND uses lightweight cone which movement is controlled by “M” shaped surround. Pistonic behavior and the long term stability Is supported by Nomex spider. The woofer cone is treated to withstand harsh environments and high humidity. The 121FIND was design for its best use in the 2-way applications, where excellent midrange response is required. Speaker provides good low frequency extension and delivers seizable amounts of low frequencies. The metal parts in the speaker are coated and tested to ensure extreme weatherization protection.

Specifications
General Specs

    Diameter: 12 inch
    Rated Impedance: 4 Ohm

Power Handling

    AES Power: 250 Watts
    Program Power: 500 Watts

Voice Coil

    Diameter: 2 inch
    Winding wire : CCAW
    Former: Glass Fiber
    Winding height: 11,7 mm

T/S Parameters

    Resonant frequency: 59Hz
    Re: 3.1ohm
    Qes: 0,56
    Qms: 7,34
    Qts: 0,52
    VAS: 59.1L
    Sd: 531cm2
    Mms: 49.1g
    BL: 10.2
    Le: 0,32
    Sensivity: 96,4 dB

Design Details

    Surround material: Fabric
    Cone material: Paper
    Spider: Nomex
    Plate thickness: 8 mm
    Peak to peak linear cone displacement: 9,85 mm
    Overall diameter: 320 mm
    Bolt circle diameter: 302 mm
    Baffle cutout dia: 279 mm
    Number of mounting holes: 8
    Depth (flange to rear): 124 mm
    Net weight: 4.6kg
