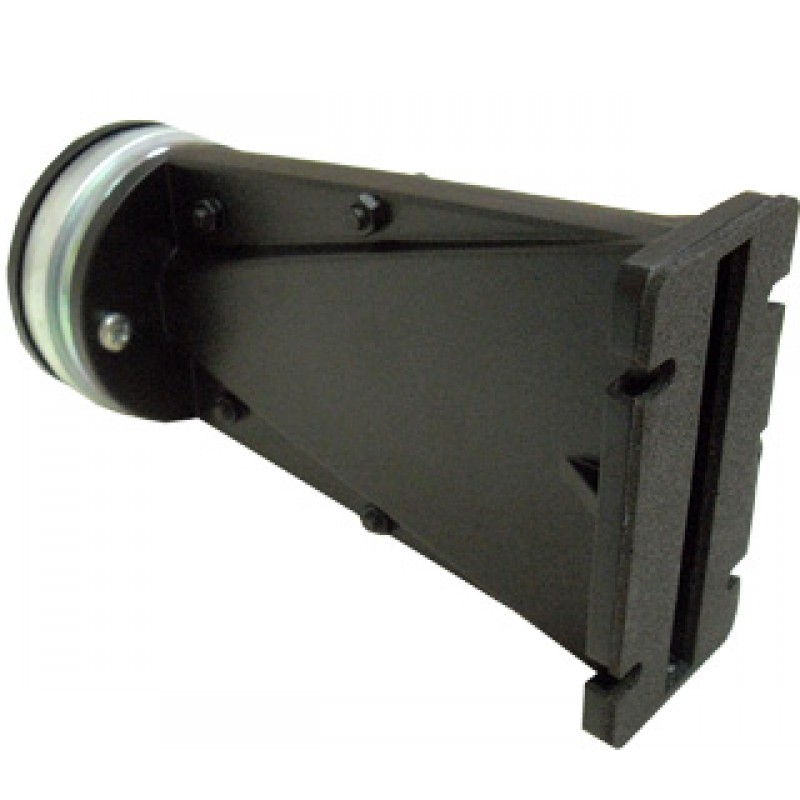

Beyma WL4

Cere mai multe informatii despre Beyma WL4 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 1.766,79 Lei
Fără TVA: 1.484,69 Lei
Dep. Ext. - livrare 10-14 zile
Producător: Beyma
Cod produs: Beyma WL4
Puncte de recompensă: 14
-
+
Adaugă in Wishlist Compară produs
0 opinii 0 opinii Spune-ţi opinia
Etichete: Beyma WL4 driver profesional beyma driver beyma driver line array wave guide driver 1 inch driver 1" line array



WL4

GRAPH

dBFUND.H2H32004001k2k4k10k20k255075100

TECHNICAL SPECIFICATIONS

Throat diameter   20.5 mm 0.8 in
Flange height   101.6 mm 4 in
Nominal impedance   8 ohm
Minimum impedance   5.5 ohm @ 4.5 kHz
Re   5.6 ohm
Power capacity   40 W AES above 1.5 kHz
Program power   80 W above 1.5 kHz
Sensitivity   105 dB 1 W @ 1 m coupled to horn
Frequency range   700-20000 Hz
Recom. crossover frequency   1.2 kHz or higher (12dB/oct min slope)
Voice coil diameter   44.3 mm 1.75 in
Flux density   1.8 T
BL factor   8 N/A
Diaphragm material   Polyester


CONSTRUCTIVE DETAILS

Total weight   -
External diameter   80 mm 3.15 in
Depth   195 mm 7.68 in
Mounting   Four 6 mm diameter holes
Net weight   1.1 kg 2.42 lb.
Total weight (2 units)   2.6 kg 5.72 lb.
Magnet   Neodymium

Descarca fisa tehnica click to download pdf
