Beyma SMC-8060

Beyma SMC8060

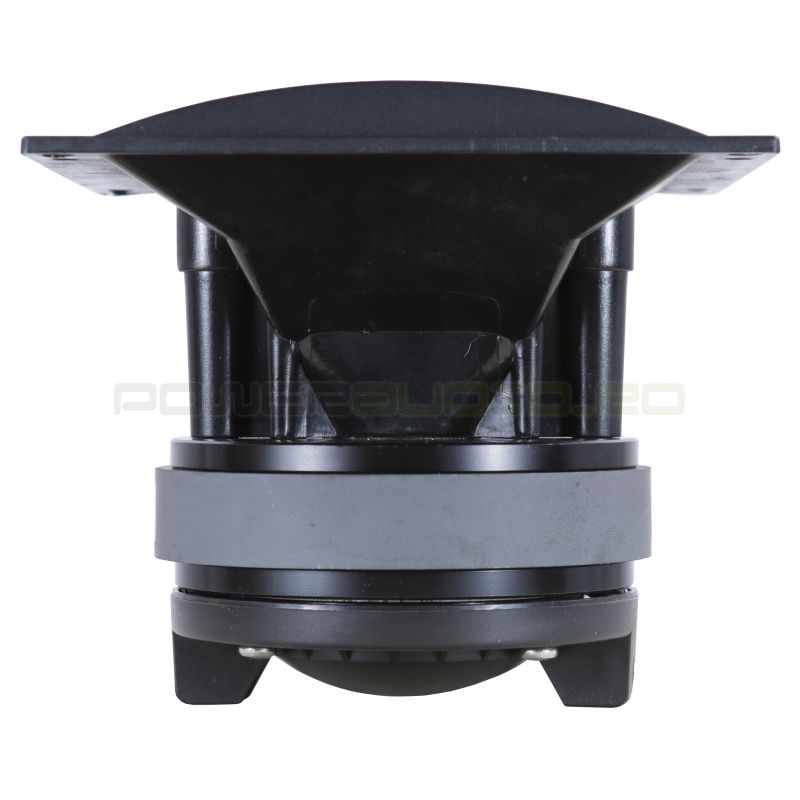

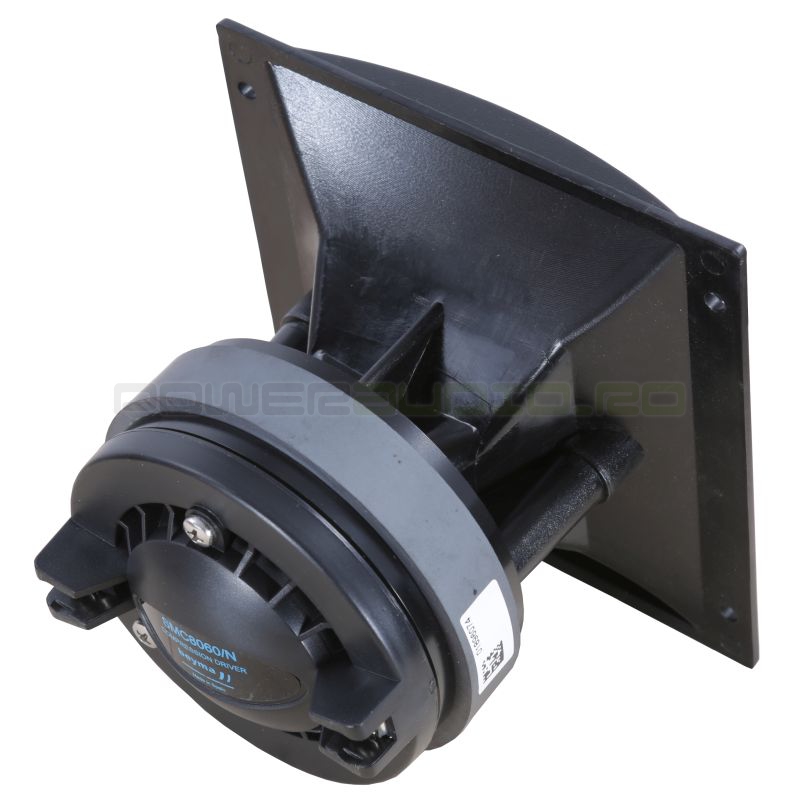

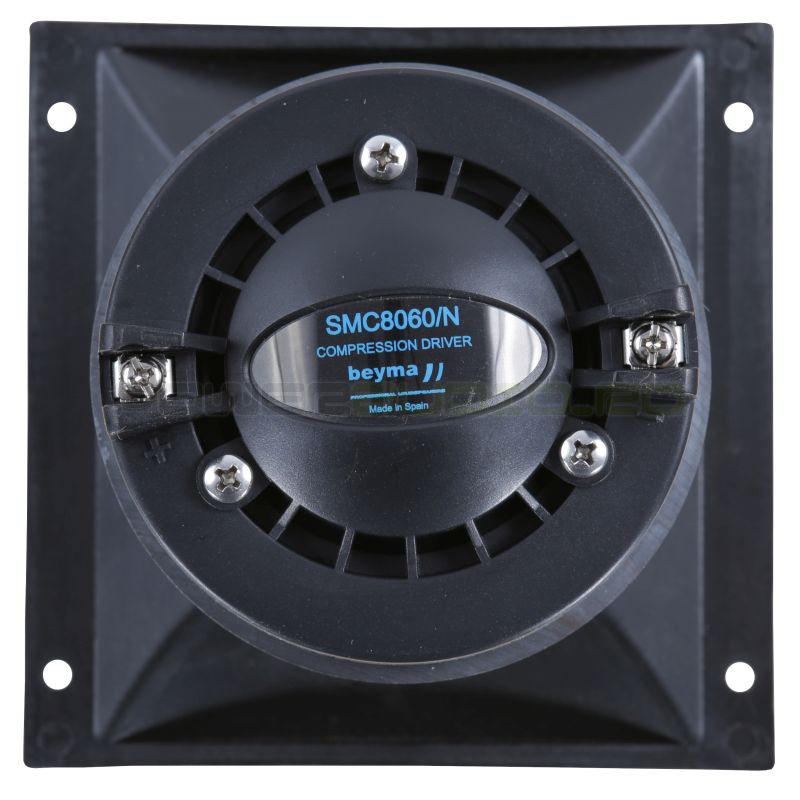

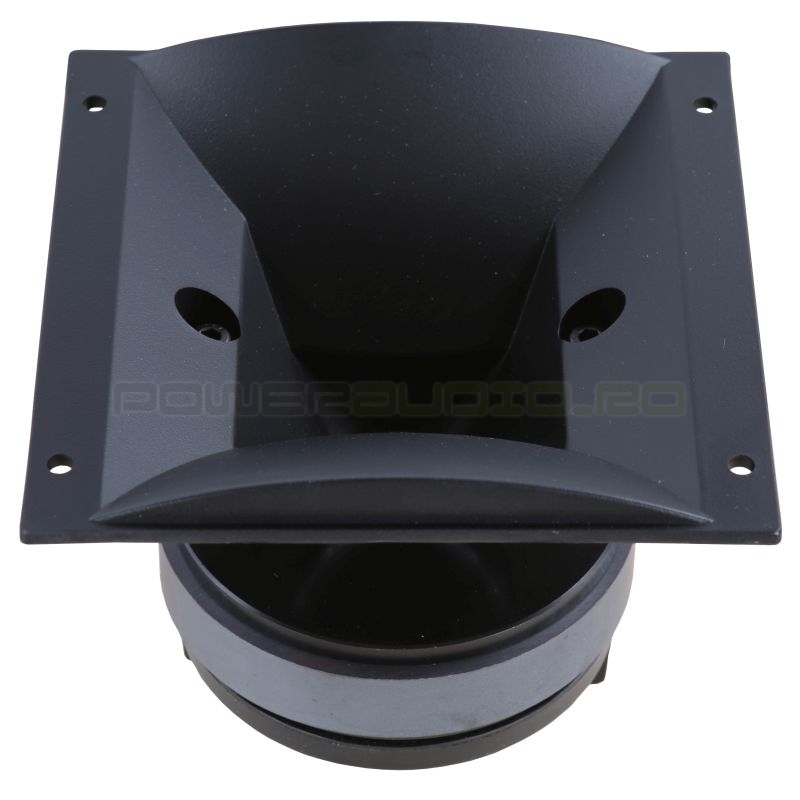

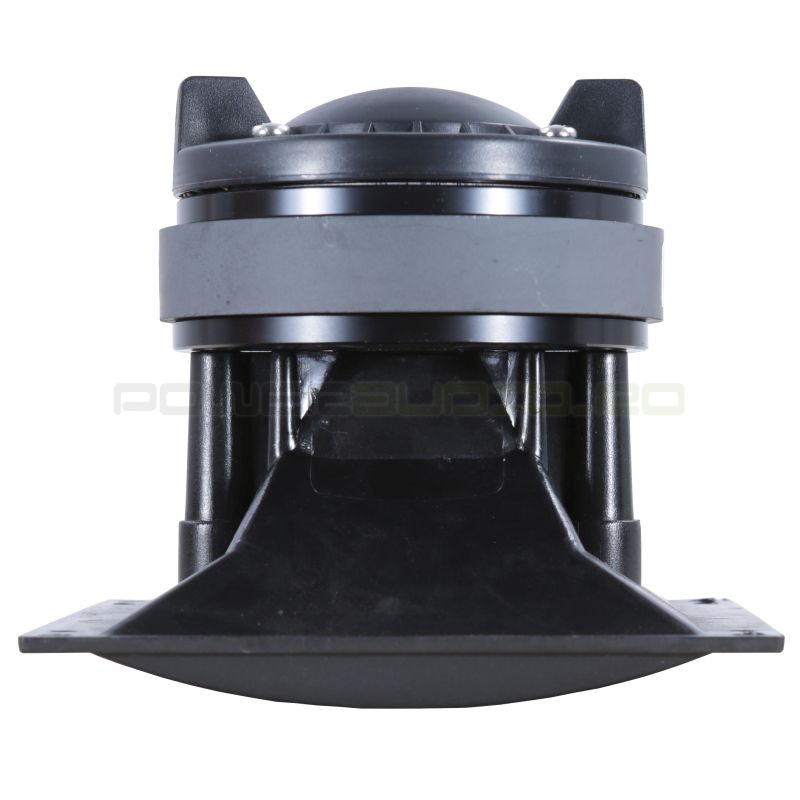

This combination of 1" compression driver and 80 x 60 horn is directed for the use in compact 2 way cabinets. The compression driver features a lightweight mylar diaphragm attached to an edgewound aluminium wire voice coil, providing a wide and smooth frequency response, with reduced harmonic distortion and excellent efficiency. The coil-diaphragm assembly is easily field replaceable without soldering. The 80 x 60 horn assures a good dispersion control in a wide frequency range.

Key features
100 W program power above 1,5 kHz
High sensitivity: 107 dB (1W / 1m)
Extended frequency range: 0,8 - 18 kHz
Low harmonic distortion
1,75\' edgewound aluminium ribbon voice coil
Polyester diaphragm
80� x 60� horn
Ferrite magnet
Designed for compact cabinets

Technical Specifications
Nominal diameter 25,4 mm 1 in
Rated impedance 8 %u2126
Minimum impedance 5 %u2126
D.C. resistance 4,3 %u2126
Power capacity 50 WAES above 1,5 kHz
Program power 100 W above 1,5 kHz
Sensitivity 107 dB 1W / 1m @ ZN
High sensitivity: 107 dB (1W / 1m)
Frequency range 0,8 - 18 kHz
Recommended crossover 1,5 kHz or higher (12 dB/oct min.)
Voice coil diameter 44,4 mm 1,75 in
Magnetic assembly weight 1,2 kg 2,9 lb
Flux density 1,65 T
Bl factor 8,5 N/A
