Faital Pro HF201 2" Compression Driver 100W 8 Ohm

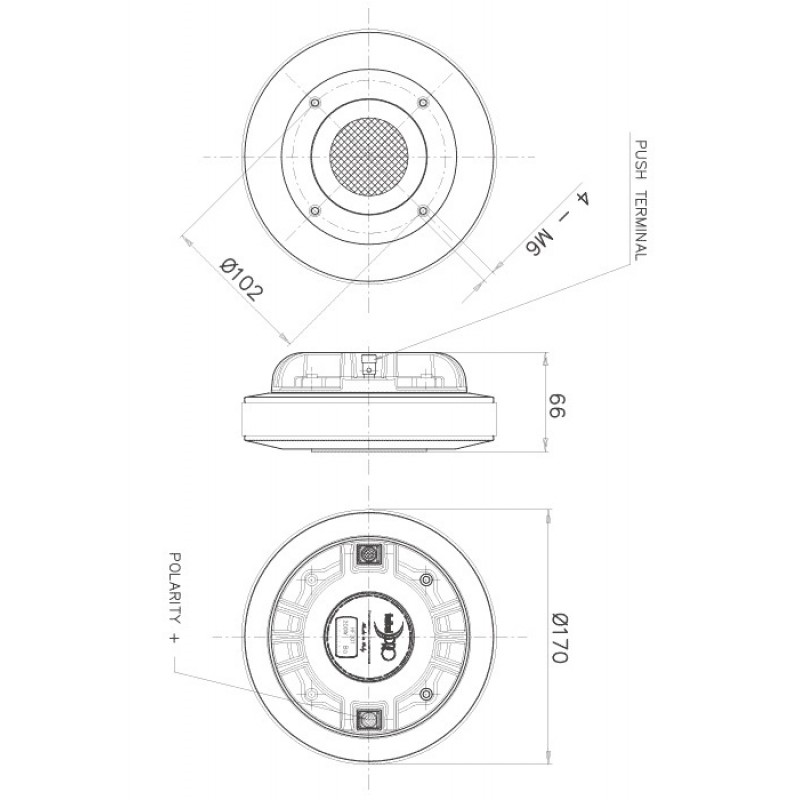

Nominal Specifications
- Throat Diameter - 50.8 mm (2 in)
- Overall Diameter - 170 mm (6.69 in)
- 90° Mounting Holes Diameter (4xM6) - 102 mm (4.02 in)
- Depth - 66 mm (2.60 in)
- Net Weight - 4.6 Kg (10.2 lb)
- Shipping Box - 195 x 195 x 141 mm (7.7 x 7.7 x 5.6 in)
- Shipping Weight - 4.8 Kg (10.6 lb)
Technical Parameters

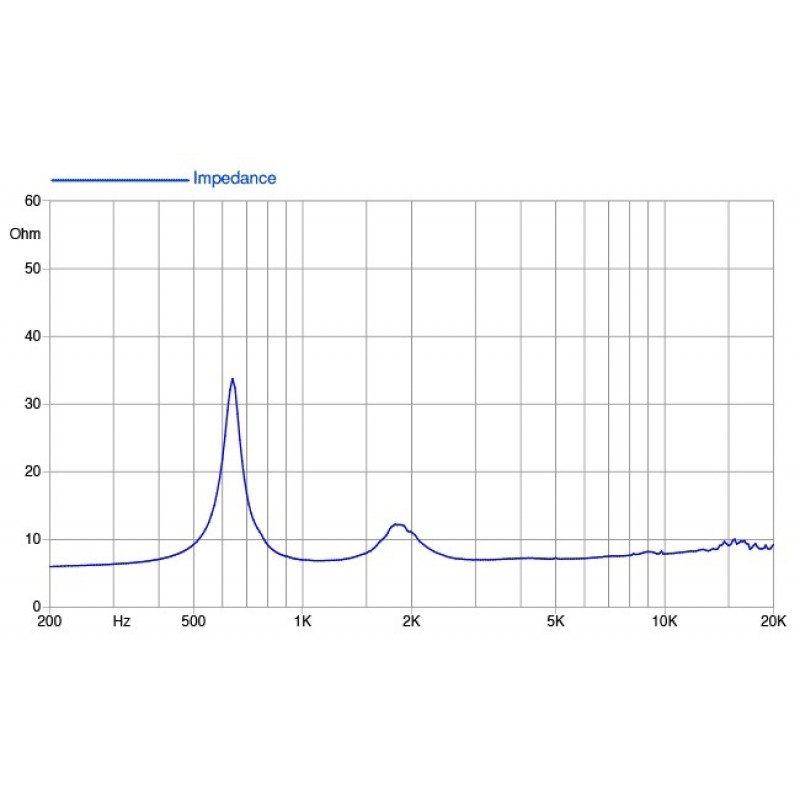

- Nominal Impedance - 8 Ohm
- Minimum Impedance - 7.2 Ohm
- AES Power above 0.9 kHz (1) - 100 W
- AES Power above 0.65 kHz - 50 W
- Maximum Power above 0.9 kHz (2) - 200 W
- Maximum Power above 0.65 kHz - 100 W
- Minimum Crossover Frequency (3) - 0.9 kHz
- Sensitivity (1W/1m) (4) - 108 dB
- Frequency Range - 0.5-18 kHz
- Voice Coil Diameter - 74 mm (2.91 in)
- Winding Material - Al
- Former Material - Kapton
- Diaphragm Material - Titanium
- Diaphragm Shape - Dome
- Winding Depth - 2.35 mm (0.09 in)
- Magnetic Gap Depth - 3.2 mm (0.13 in)
- Flux Density - 1.7 T
- Magnet - Ferrite Ring
- Re - 5.6 Ohm
- Phase Plug Design - Annular
- NET Air Volume filled by HF Driver - 1.05 l (0.037 ft^3)
