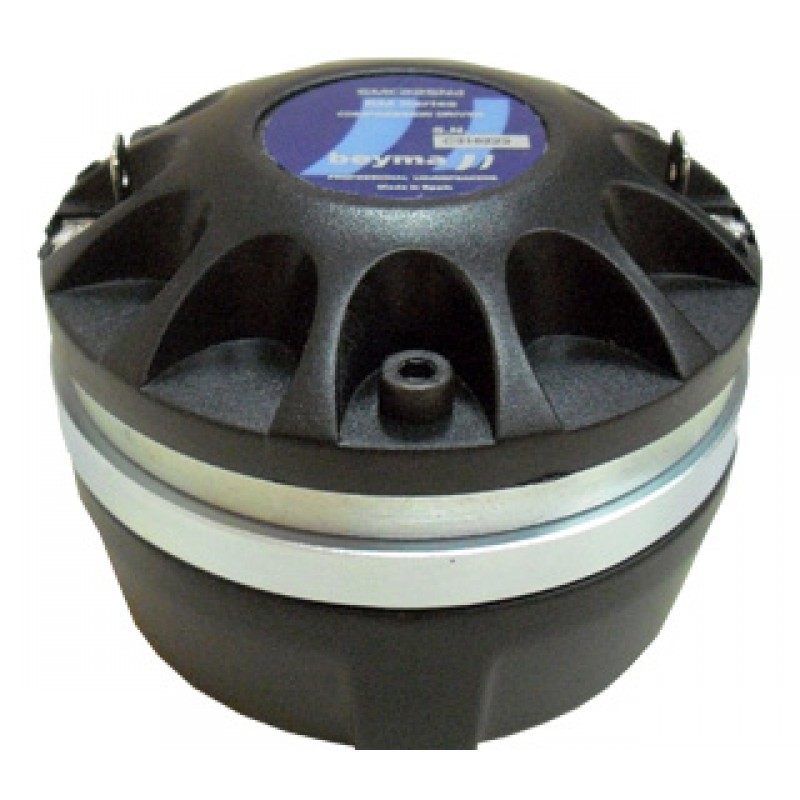

Cere mai multe informatii despre Beyma SMC-225Nd la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.
Preţ:
532,80 Lei
Fără TVA: 447,73 Lei
Dep. Ext. - livrare 10-14 zile
-
+
GRAPH
TECHNICAL SPECIFICATIONS
| Throat diameter | 25 mm 1 in |
| Nominal impedance | 8 ohm |
| Minimum impedance | 5.5 ohm @ 4.5 kHz |
| Re | 5.6 ohm |
| Power capacity | 40 W AES above 1.5 kHz |
| Program power | 80 W above 1.5 kHz |
| Sensitivity | 108 dB 1 W @ 1 m coupled to horn |
| Frequency range | 800-20000 Hz |
| Recom. crossover frequency | 1.5 kHz or higher (12dB/oct min slope) |
| Voice coil diameter | 44.3 mm 1.75 in |
| Flux density | 1.8 T |
| BL factor | 8 N/A |
| Diaphragm material | Polyester |
CONSTRUCTIVE DETAILS
| External diameter | 80 mm 3.15 in |
| Depth | 57 mm 2.24 in |
| Mounting | Three M4 threaded holes. 120º apart on 57 mm (2.24 in) diameter circle. Mounting hardware is supplied |
| Net weight | 0.7 kg 1.54 lb |
| Total weight | 0.8 kg 1.76 lb |
| Magnet | Neodymium |
Descarca fisa tehnica
