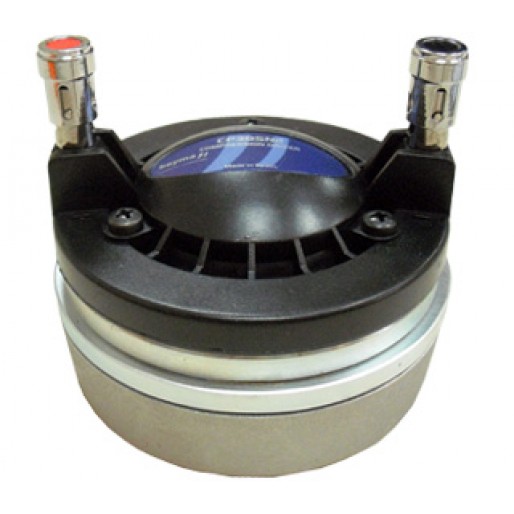

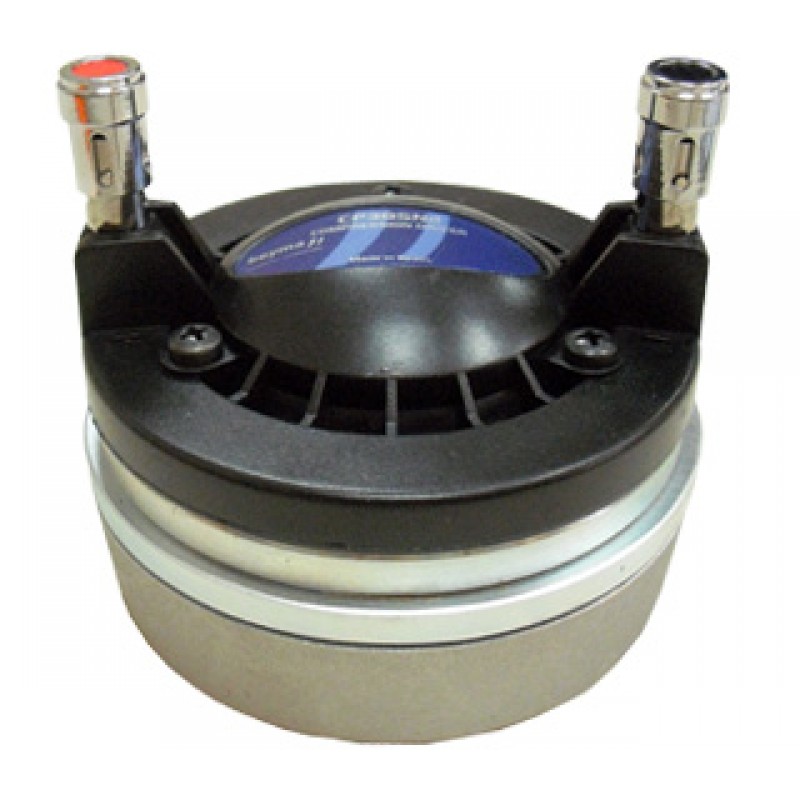

Cere mai multe informatii despre Beyma CP-385Nd la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.
Preţ:
770,00 Lei
Fără TVA: 647,06 Lei
Dep. Ext. - livrare 10-14 zile
-
+
GRAPH
TECHNICAL SPECIFICATIONS
| Throat diameter | 25 mm 1 in |
| Nominal impedance | 8 ohm |
| Minimum impedance | 5.2 ohm @ 4.5 kHz |
| Re | 4.7 ohm |
| Power capacity | 70 W AES above 1.5 kHz |
| Program power | 140 W above 1.5 kHz |
| Sensitivity | 107 dB 1 W @ 1 m coupled to horn |
| Frequency range | 800-20000 Hz |
| Recom. crossover frequency | 1.2 kHz or higher (12dB/oct min slope) |
| Voice coil diameter | 44.3 mm 1.75 in |
| Flux density | 2.2 T |
| BL factor | 7.5 N/A |
| Diaphragm material | Polyester |
CONSTRUCTIVE DETAILS
| External diameter | 100 mm 4 in |
| Depth | 80 mm 3.1 in |
| Mounting | Three M5 threaded holes. 120º apart on 57 mm (2.24 in) diameter circle. Two M5 threaded holes. 180º apart on 76.2 mm (3 in) diameter circle. Mounting hardware is supplied |
| Net weight | 1.35 kg 2.97 lb |
| Total weight | 1.5 kg 3.3 lb |
| Magnet | Neodymium |
Descarca fisa tehnica
