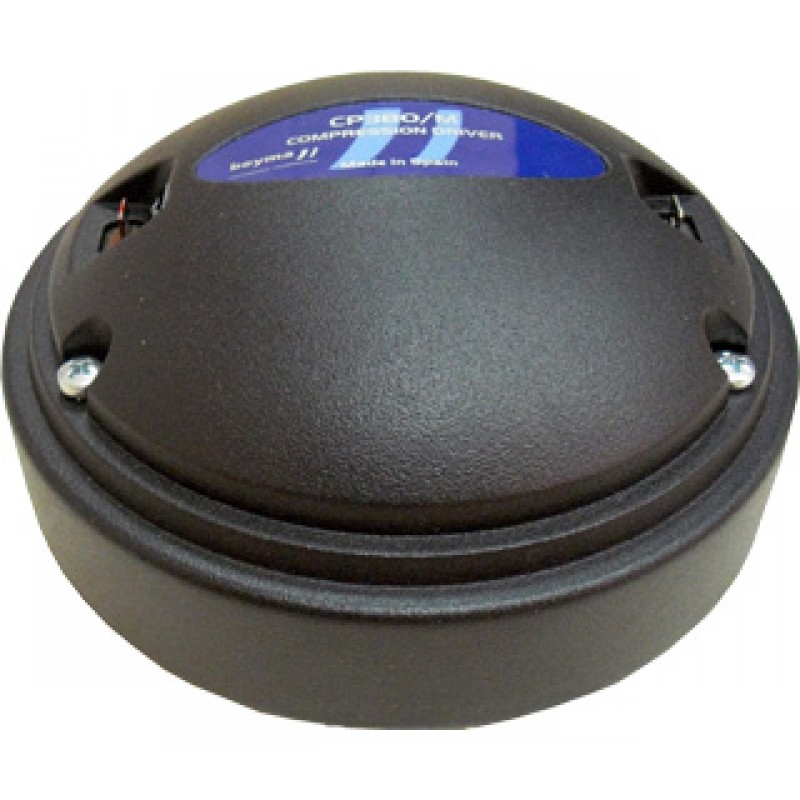

Beyma CP-380-M

Cere mai multe informatii despre Beyma CP-380-M la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 564,00 Lei
Fără TVA: 473,95 Lei
Dep. Ext. - livrare 10-14 zile
Producător: Beyma
Cod produs: Beyma CP-380-M
Puncte de recompensă: 11
-
+
Adaugă in Wishlist Compară produs
0 opinii 0 opinii Spune-ţi opinia
Etichete: Beyma CP-380-M driver profesional beyma driver beyma beyma driver 1 inch driver 1 inch driver prindere suruburi



CP-380/M

GRAPH

dBFUND.H2H32004001k2k4k10k20k255075100

TECHNICAL SPECIFICATIONS

Throat diameter   25 mm 1 in
Nominal impedance   8 ohm
Minimum impedance   5.2 ohm @ 4.5 kHz
Re   4.7 ohm
Power capacity   70 W AES above 1.5 kHz
Program power   140 W above 1.5 kHz
Sensitivity   107 dB 1 W @ 1 m coupled to horn
Frequency range   800-20000 Hz
Recom. crossover frequency   1.2 kHz or higher (12dB/oct min slope)
Voice coil diameter   44.3 mm 1.75 in
Flux density   2 T
BL factor   7 N/A
Diaphragm material   Polyester


CONSTRUCTIVE DETAILS

External diameter   146.5 mm 5.77 in
Depth   75 mm 2.95 in
Mounting   Three M5 threaded holes. 120º apart on
57 mm (2.24 in) diameter circle.
Two M5 threaded holes. 180º apart on
76.2 mm (3 in) diameter circle.
Mounting hardware is supplied
Net weight   3.25 kg 7.16 lb
Total weight   3.4 kg 7.5 lb
Magnet   Ferrite
