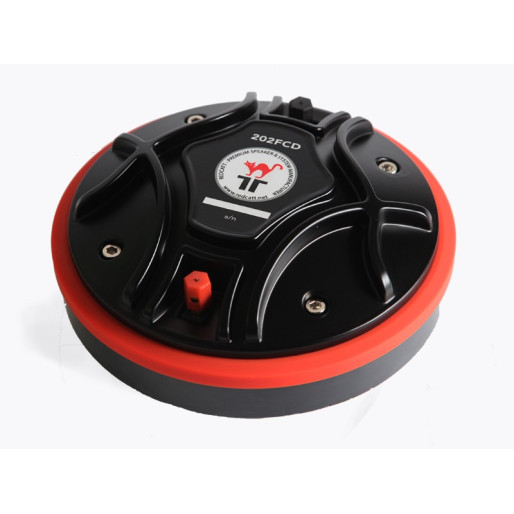

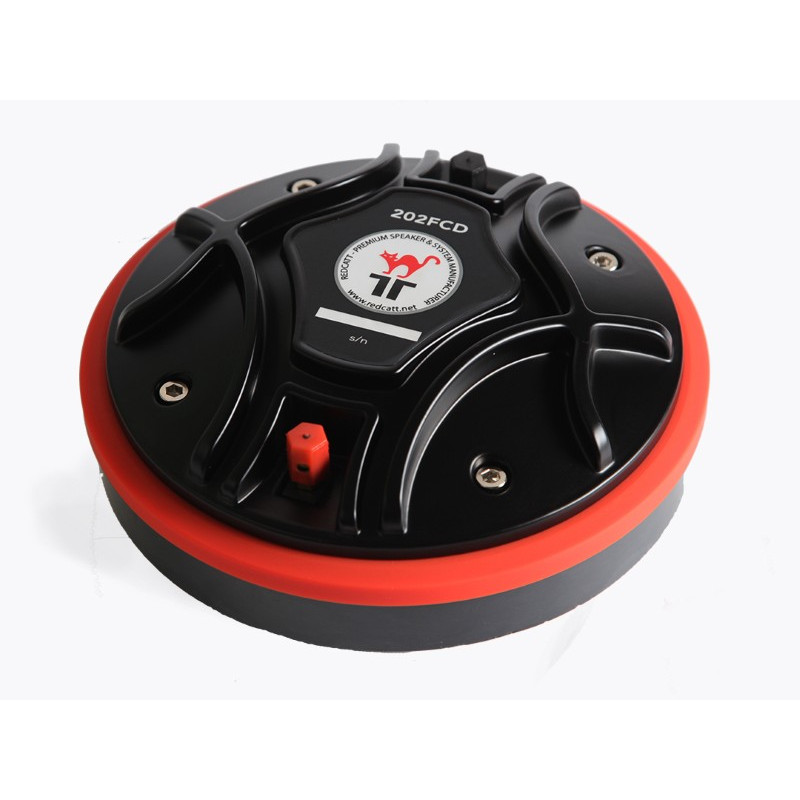

RedCatt 202FCD - 8ohm

REDCATT 202FCD - 8 Ohm 1,4" Compression Driver

Key Features

    Designed for applications With low budget
    Polyimide surround with pure titanium dome

Design Notes

The 202FCD compression driver is a high-performance, high-frequency device ideal for professional loudspeaker systems. The driver’s ferrite based magnetic circuit provides a robust, high force BL field providing precision control of the pure titanium diaphragm assembly. Featuring 1.4inch exit throat. The suspension is made of polyimide material, providing optimum control over the diaphragm movement. The design has been optimized to have a great level of performance at very affordable price levels. The drivers are suitable for 2-way and multi-way speaker systems. Dome Assembly Design REDCATT has designed the pure titanium dome to be bonded to the polyimide surround. This solution greatly improves the control of the dome pistonic motion, having a positive effect on the transient response.  REDCATT uses state of the art adhesives in all assembly steps. Our voice coil to dome bonding is a unique process, developed to greatly improve the power handling capabilities. REDCATT unique and precise adhesives dispensing, combined with our in-house developed dome treatments are further improving the long term reliability of this product.

Specifications
General Specs

    Horn Exit Diameter: 1,4 inch
    Nominal Diameter: 3 inch
    Rated Impedance: 8 Ohm

Power Handling

    AES Power: 100 Watts
    Program Power: 200 Watts

Voice Coil

    Diameter: 3 inch
    Winding wire : CCAR
    Former: kapton
    Winding height: 2,6 mm

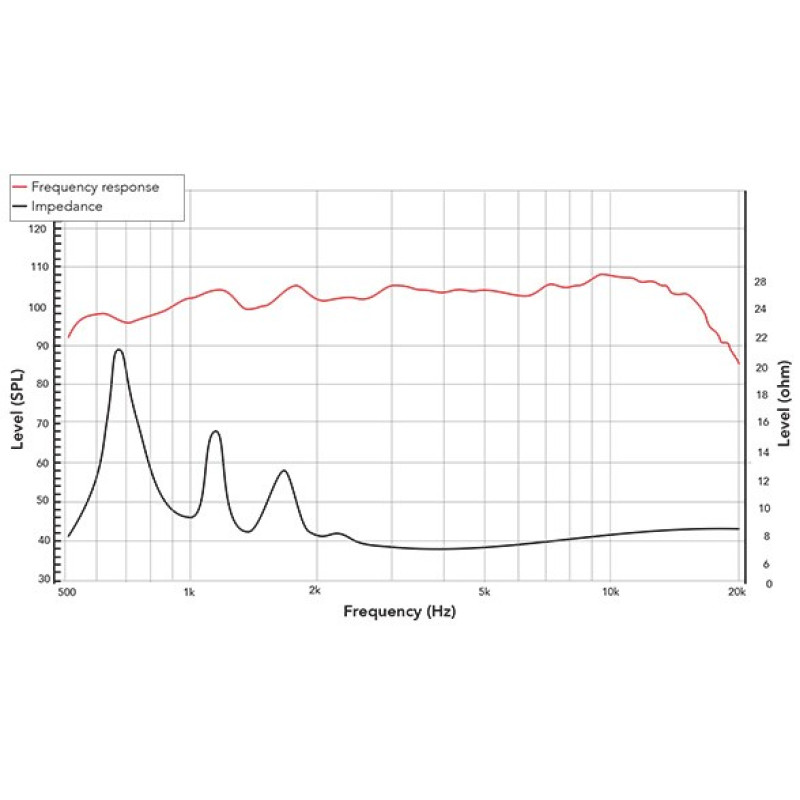

T/S Parameters

    Resonant frequency: 500Hz
    Re: 6.2ohm
    Sensivity: 108 dB

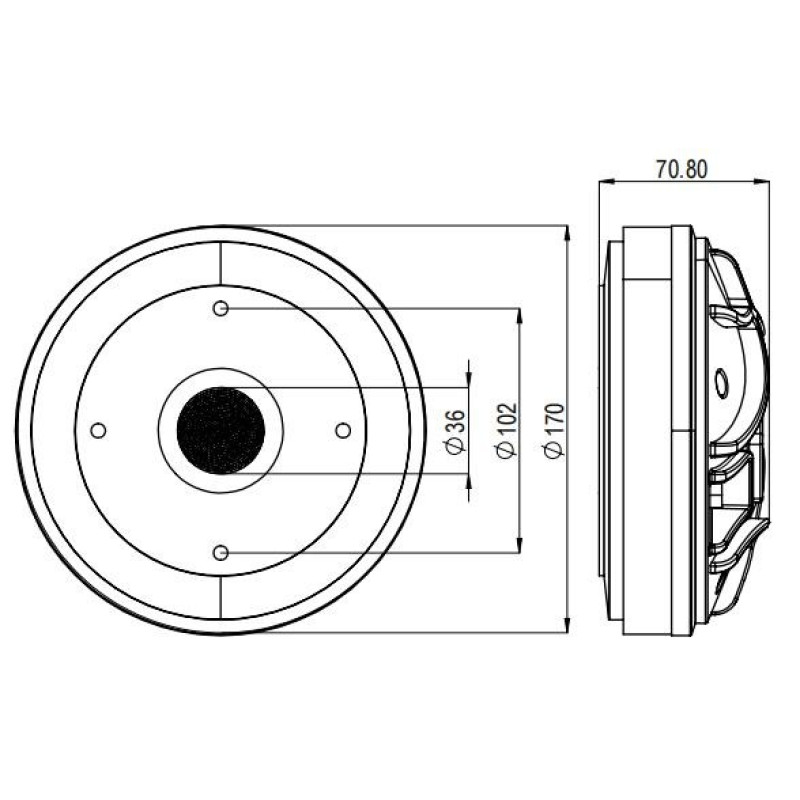

Design Details

    Surround material: Polymer
    Cone material: Titanium
    Plate thickness: 3,6 mm
    Peak to peak linear cone displacement: n/a mm
    Overall diameter: 170 mm
    Bolt circle diameter: 102 mm
    Baffle cutout dia: n/a mm
    Number of mounting holes: 4
    Depth (flange to rear): 70,8 mm
    Net weight: 5kg
