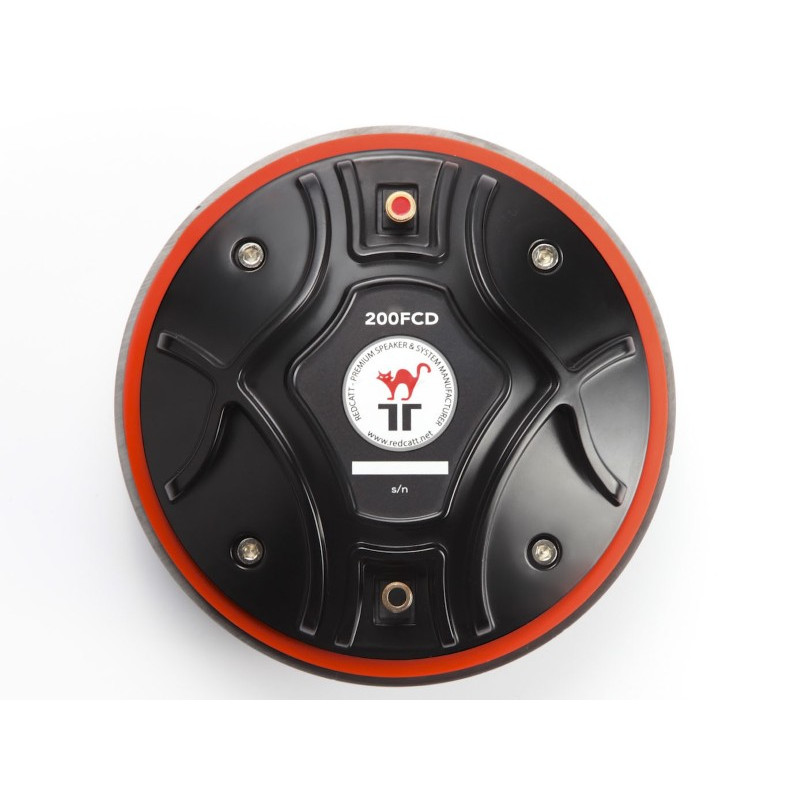

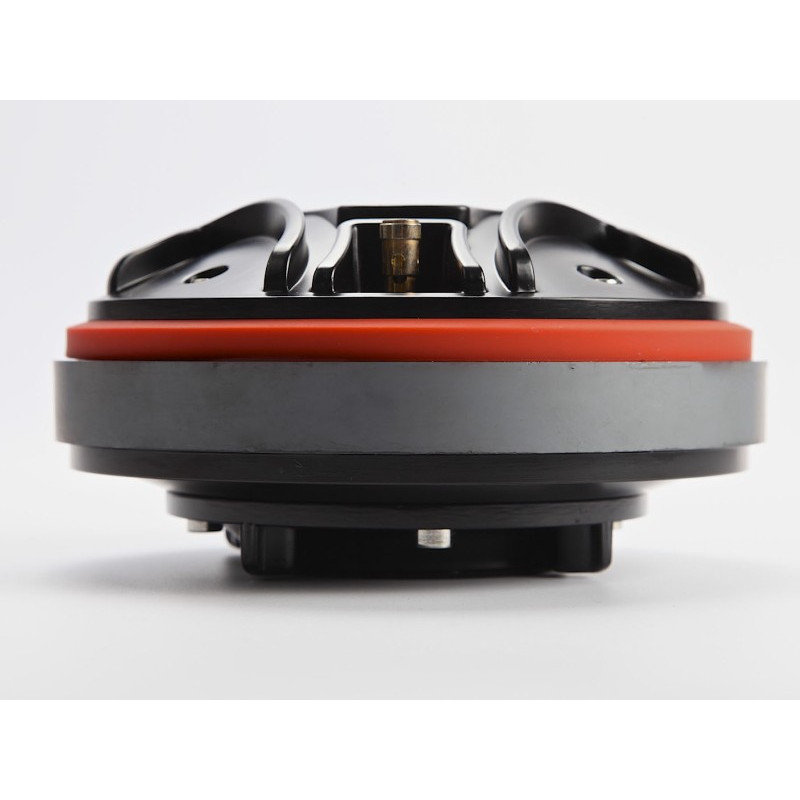

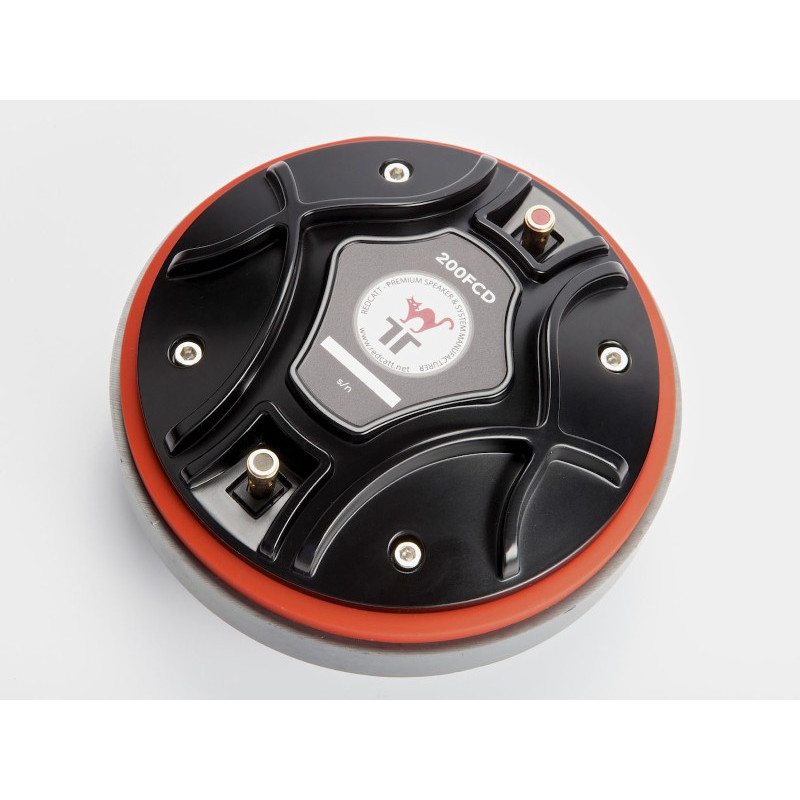

RedCatt 200FCD - 8ohm

REDCATT 200FCD - 8 Ohm 2" Compression Driver

Key Features

    Very low resonant frequency
    Copper cap demodulation ring, powerful motor structure
    Designed for large speaker systems where high SPL is required

Design Notes

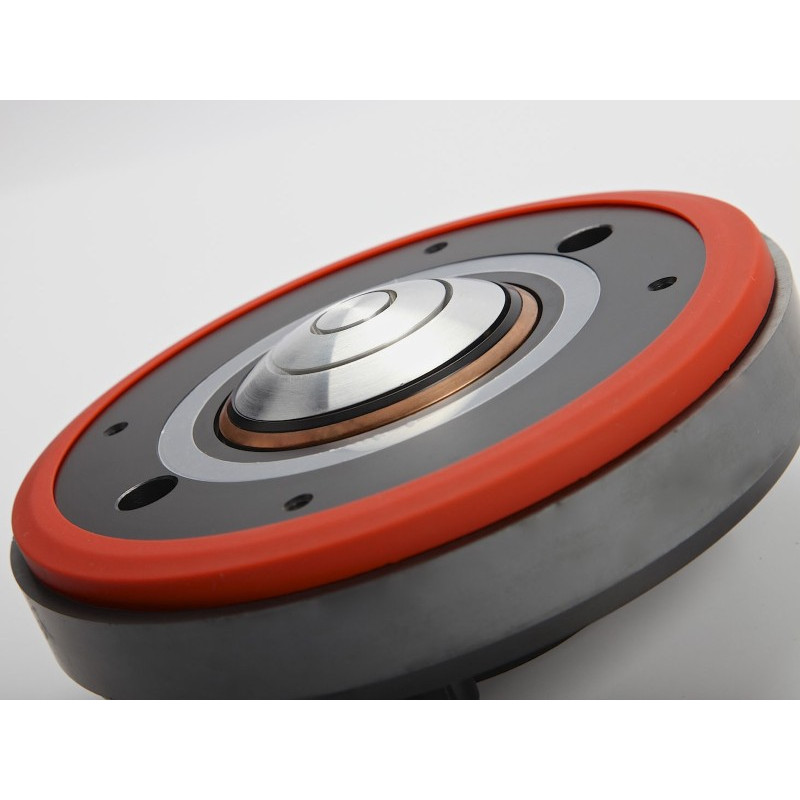

The 200FCD compression driver is a very high performance high frequency device ideal for large professional loudspeaker systems. The driver uses all components that were designed and manufacture with one objective in mind - be the best. The driver’s phase plug is CNC machined from solid aluminum with unbeaten level of precision. The dome is carefully attached to the voice coil with our sandwich joint, improving the transfer of the high frequencies and further improving power handling and reliability of the driver. Diaphragm Assembly The driver features a 75mm pure titanium diaphragm. Suspension is formed from Polyimide material. The acoustic output exits through an aluminum, radial 3 slot phase plug and a 2.0 inch throat aperture. Nominal sensitivity is 108.5 dB 1watt / 1 meter. REDCATT uses state of the art adhesives in all assembly steps. Our voice coil to dome bonding is unique process, developed to greatly improve the power handling capabilities. REDCATT unique and precise adhesives dispensing, combined with our in-house developed dome treatments are further improving the long term reliability of this product.

Specifications
General Specs

    Horn Exit Diameter: 2,0 inch
    Nominal Diameter: 3 inch
    Rated Impedance: 8 Ohm

Power Handling

    AES Power: 110 Watts
    Program Power: 220 Watts

Voice Coil

    Diameter: 3 inch
    Winding wire : CCAR
    Former: kapton
    Winding height: 2,6 mm

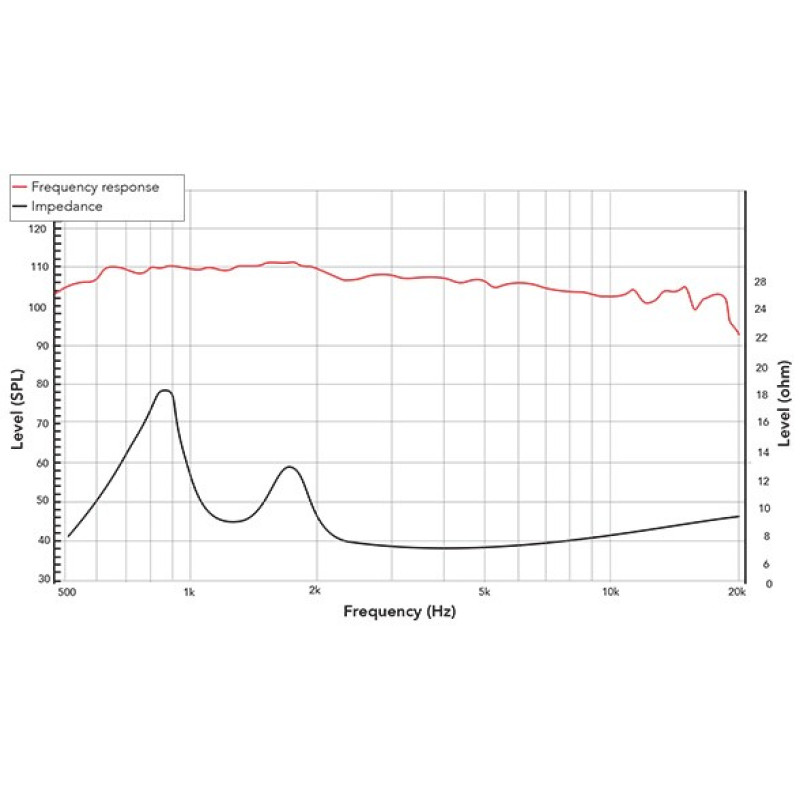

T/S Parameters

    Resonant frequency: 500Hz
    Re: 5.5ohm
    Sensivity: 108,5 dB

Design Details

    Surround material: Polymer
    Cone material: Titanium
    Plate thickness: 3 mm
    Peak to peak linear cone displacement: n/a mm

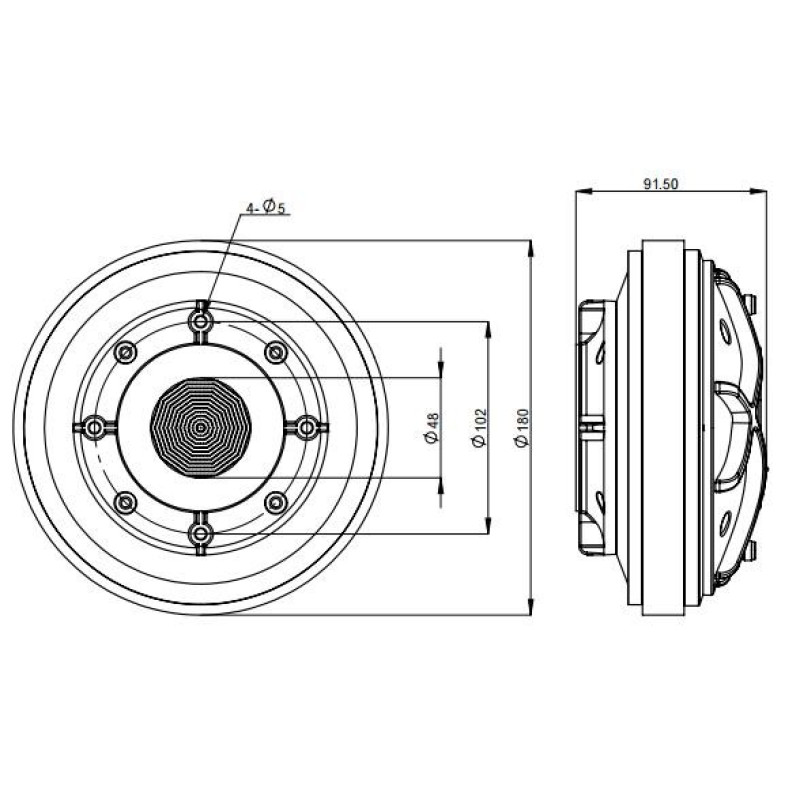

    Overall diameter: 180 mm
    Bolt circle diameter: 102 mm
    Number of mounting holes: 4
    Depth (flange to rear): 91,5 mm
    Net weight: 5kg
