Eminence PSD2002

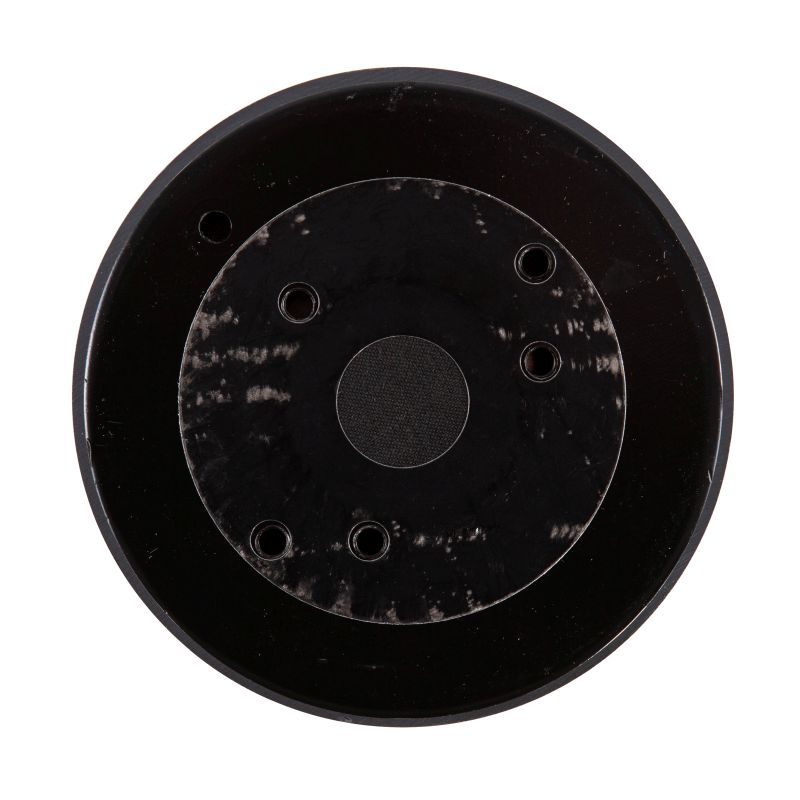

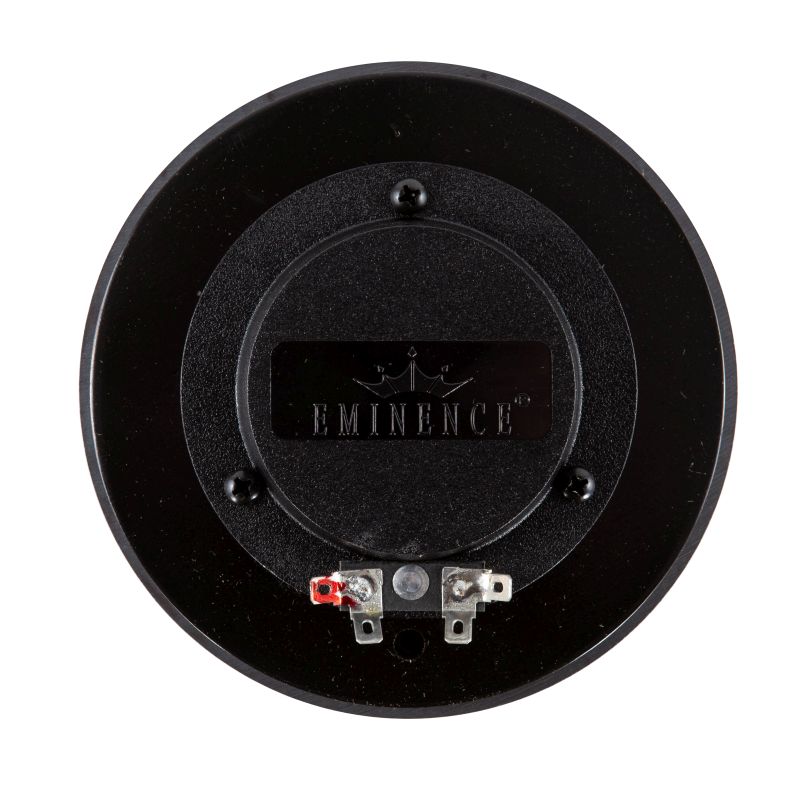

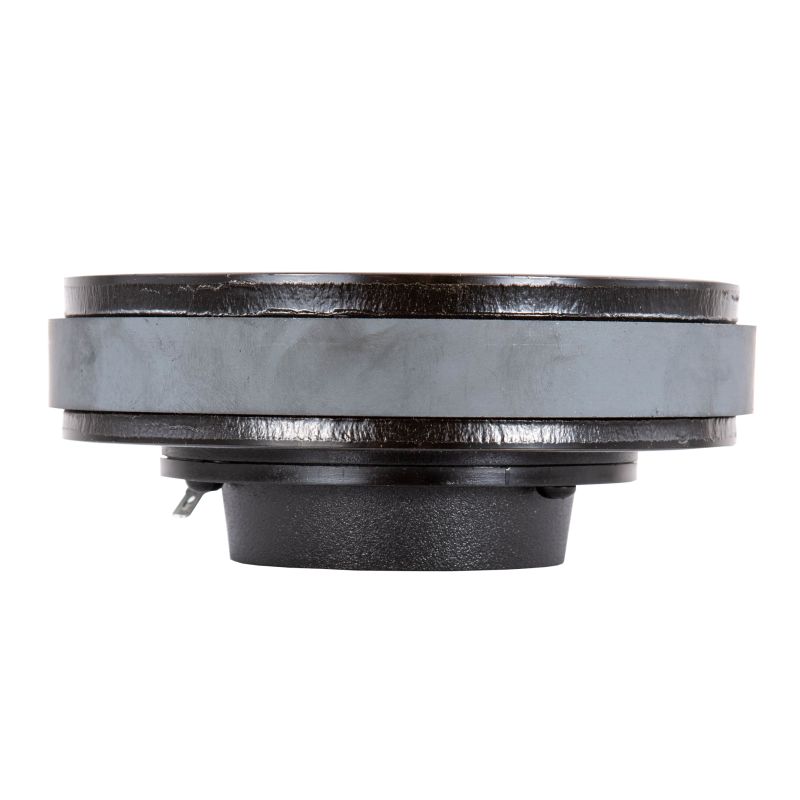

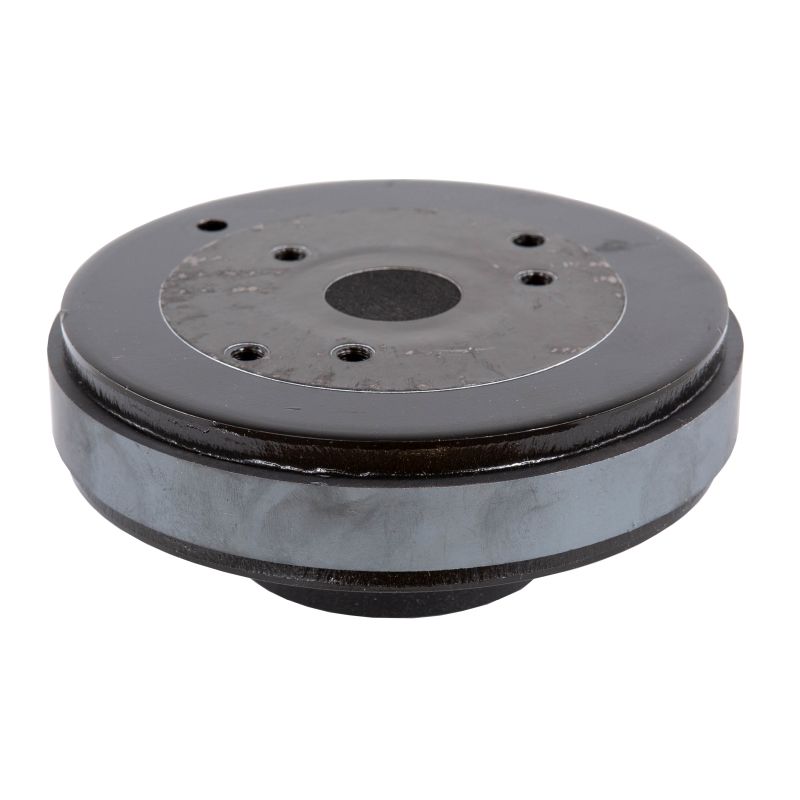

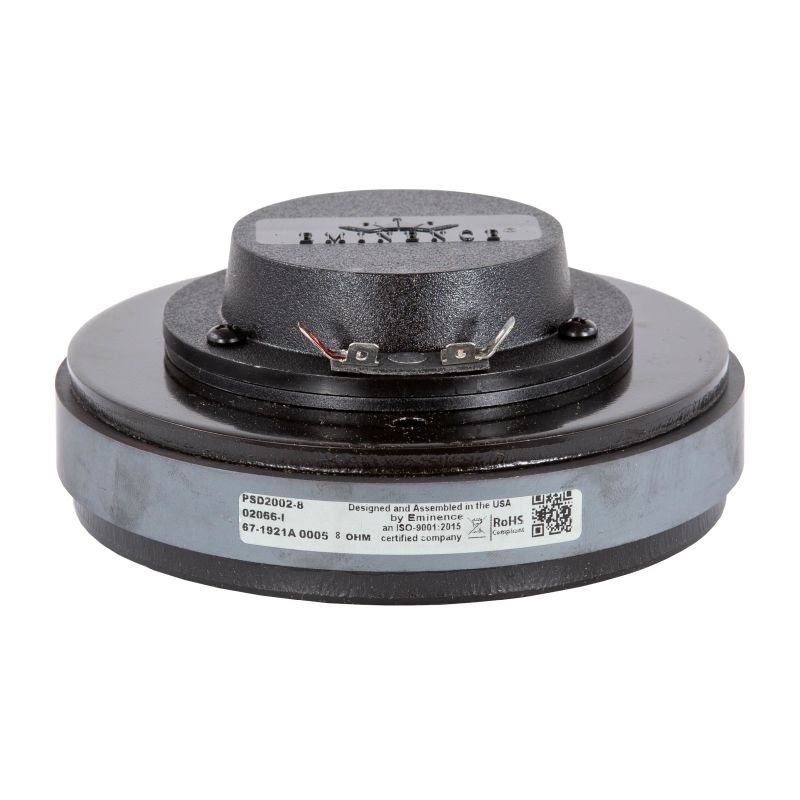

Eminence PSD2002 (Bolt-on) 1" Throat 80W Compression Driver 8 Ohm

Impedance: 8ohms

Resonance: 550Hz
Sensitivity (1W@1M): 105dB
Application Notes: 1" Throat compression driver suitable for use at frequencies above 1.5Kz in multi-way systems.
SPECIFICATION
Throat Size 1", 25.4mm
Nominal Impedance* 8 or 16 ohms*
Power Rating** 80W
Resonance 550Hz
Usable Frequency Range 1.2kHz - 20kHz
Sensitivity*** 105dB
Magnet Weight 34 oz.
Voice Coil Diameter 2", 51mm

THIELE & SMALL PARAMETERS
DC Resistance (Re) 6.1
Coil Inductance (Le) 1.6 mH

MOUNTING INFORMATION
Overall Diameter 5.25", 133mm
Mounting Holes Diameter 2X 1/4-20 or 3" M6
Mounting Holes B.C. D. 3" or 2.25"
Mounting Thread 1 3/8" 18 NEF ext.
Depth 2.2", 56mm
Weight 5 lbs, Gross 5.76 lbs

MATERIALS OF CONSTRUCTION
Diaphragm Material Titanium
Magnet Compostion Ferrite
