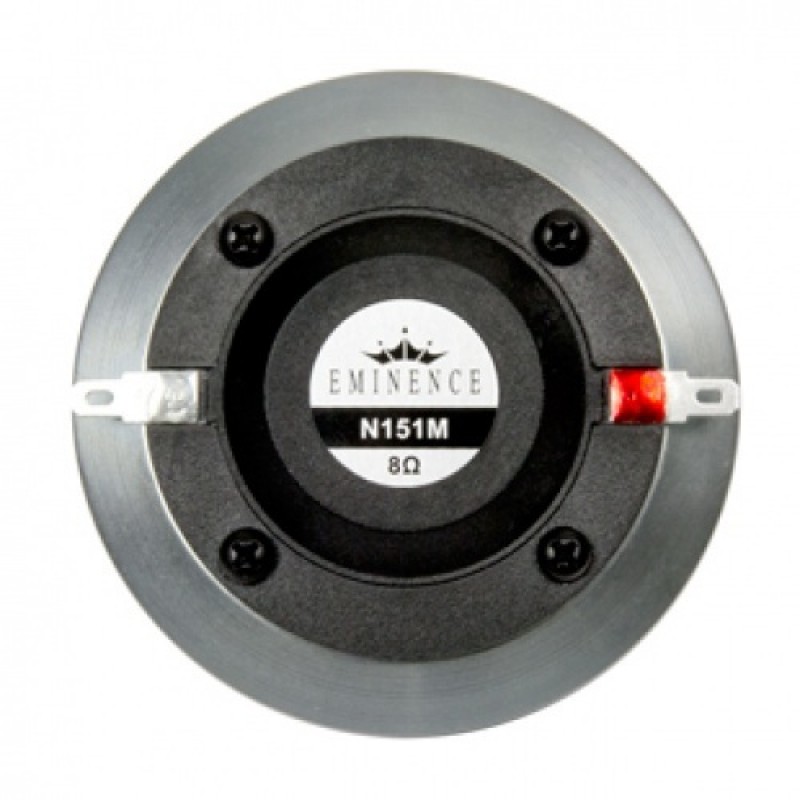

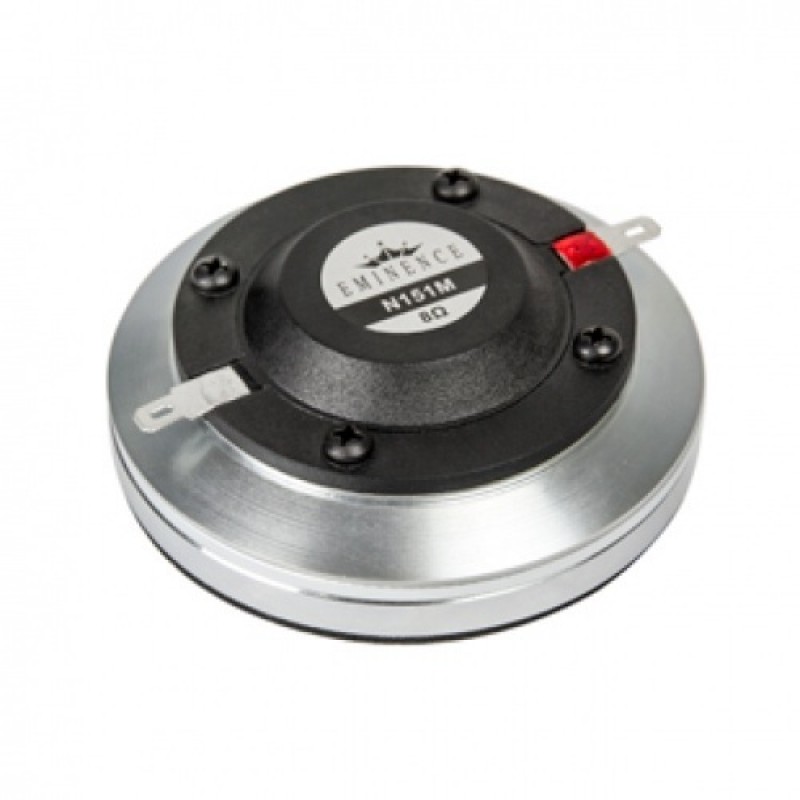

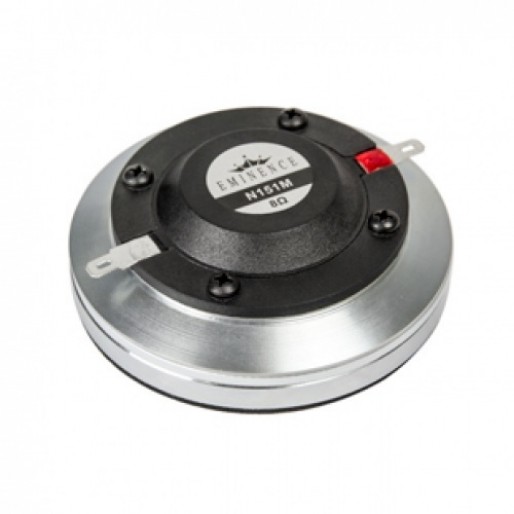

Eminence N151M-8 Ring Radiator Compression Driver
Despite its minute size, the Eminence N151M-8 ring radiator compression driver delivers monumental performance. Utilizing a phase plug design that improves the distribution of forces over the diaphragm surface results in a driver with lower distortion, smoother frequency response, and increased sensitivity as compared to conventional ring radiator designs.
Specification
- Throat Size 1", 25.4mm
- Nominal Impedance* 8Ω
- Minimum Impedance 5.2 ohm @ 6.2 kHz
- Power Rating** 45 W (AES)
- Resonance 1.24kHz
- Usable Frequency Range 1.8Hz-27kHz
- Recommended Crossover 1.8 kHz @ 12 dBkHz
- Sensitivity*** 111.5
- Magnet Material Neodymium
- Magnet Weight 4.5oz, 0.13kg
- Voice Coil Diameter 1.5" / 38.1mm
- Voice Coil Former Polyimide
- Diaphragm Material Mylar
- DC Resistance (Re) 4.1Ω
Mounting Information
- Overall Diameter 91.4mm
- Driver Volume Displaced 0.223 litres
- Depth 36.8mm
- Weight 0.8 kg
- Mounting Thread N/A
- Mounting Holes Diameter 2X 1/4-20
- Mounting Holes B.C.D. 76.2 mm
