Lavoce DF10.142LK

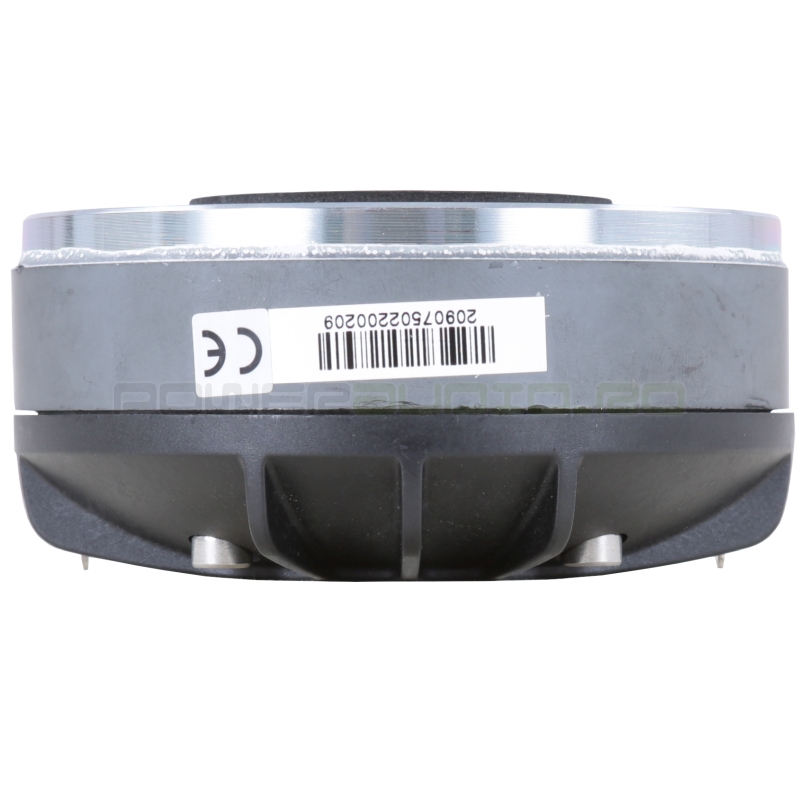

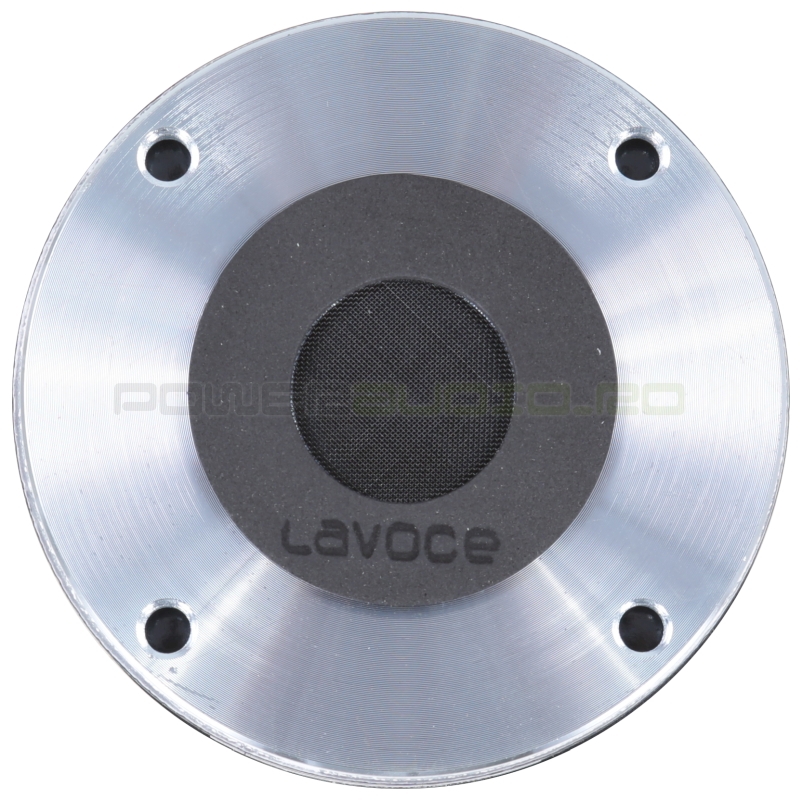

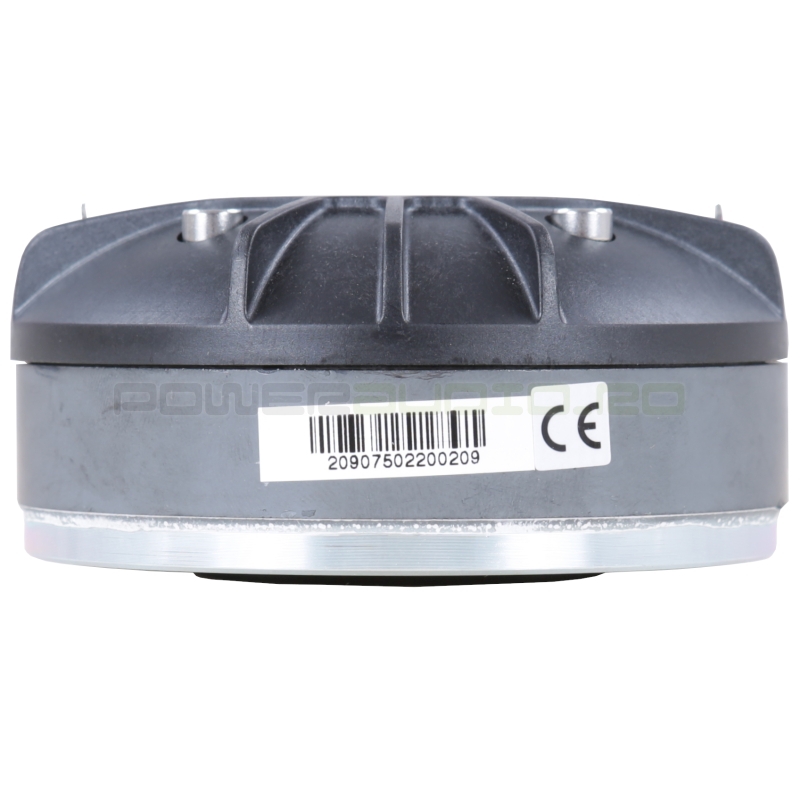

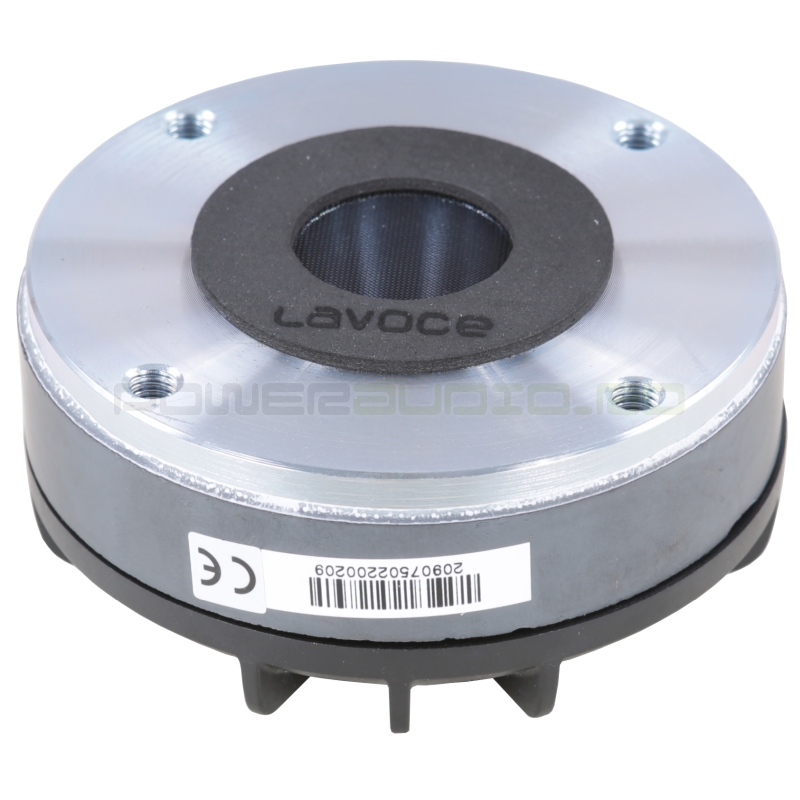

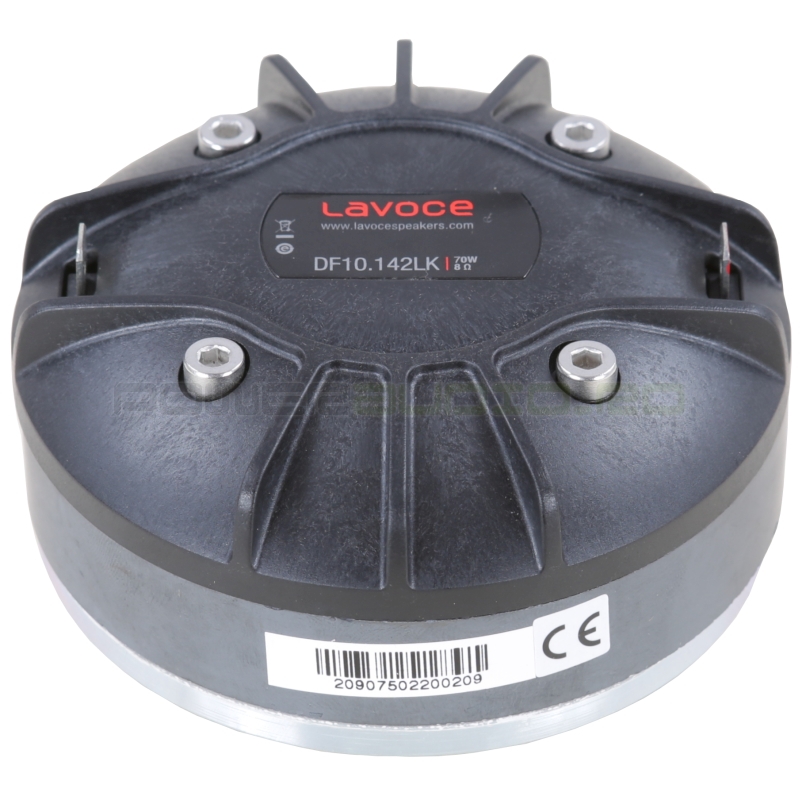

Lavoce DF10.142LK - 1" 35W 8 Ohm Compression Driver

Key features

- 1.4 INCH CCAW VOICE COIL
- 106 dB/SPL SENSITIVITY
- 70 W PROGRAM POWER HANDLING
- FEM OPTIMIZED MOTOR, PHASEPLUG AND DIAPHRAGM
- 1500 - 20000 Hz FREQUENCY RANGE
- POLYIMIDE DIAPHRAGM
- NEXT GENERATION HF DESIGN

Technical specifications

    Throat Diameter: 25.4 mm (1 in)
    Impedance: 8 Ohm
    Minimum Impedance: 7.4 Ohm
    AES Power: 35 W
    Program Power: 70 W
    Sensitivity: 106 dB
    Frequency Range: 1500 - 20000 Hz
    Voice Coil Material: CCAW
    Voice Coil Former: Kapton
    Voice Coil Inductance: 0.09 mH
    Diaphragm Material: Polyimide
    Surround Material: Polyimide
    Magnet Material: Ferrite
    Magnet Diameter: 90 mm (3.5 in)
    Flux Density: 1.5 T
    Driver Displacement Volume: 0.2 l (0.007 ft3)
    Recommended Crossover: 2.2 kHz

Shipping Information

    Multipack weight: 13.5 kg (29.7lb)
    Multipack size W x D x H: 498 x 412 x 85 mm (19.6 x 16.2 x 3.3in)
    Net weight: 0.9 kg (2lb)
    Multipack Quantity: 12

NOTES

1 - Program power is defined as 3 dB greater than AES Power
2 - AES Power: Horn loaded test for 2h with continuous, band-limited (2500-20000 Hz, 12dB/oct.) pink noise as per AES 2-1984 Rev. 2003.
3 - Sensitivity: Measured on axis at 2.83V, 1m, driver loaded with 60° x 40° horn, SPL averaged in the frequency range 2000 - 18000 Hz.
4 - Recommended Crossover: High pass filter with slope 12dB/oct. or higher.
