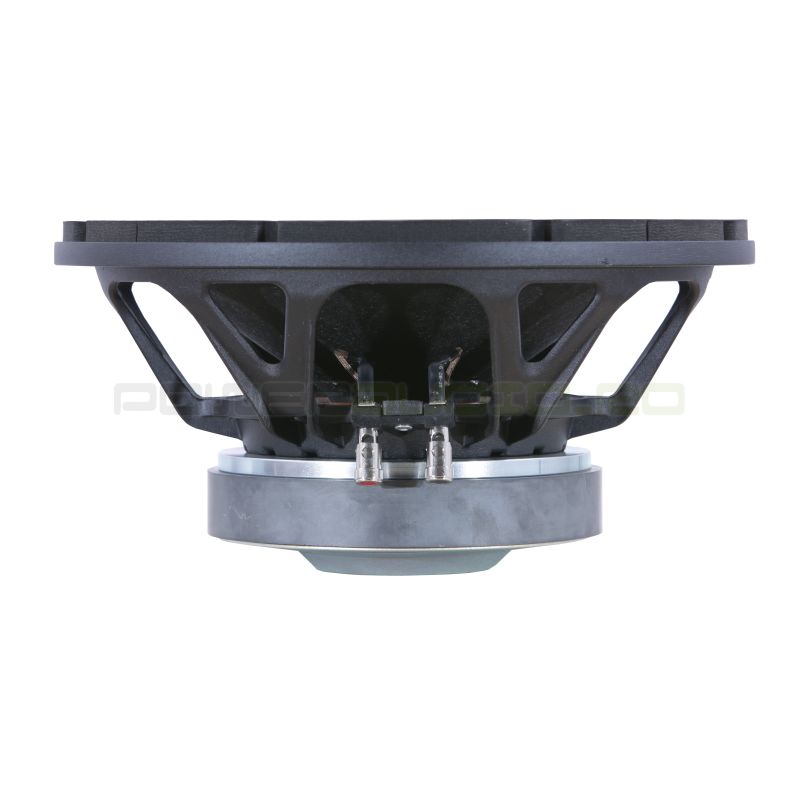

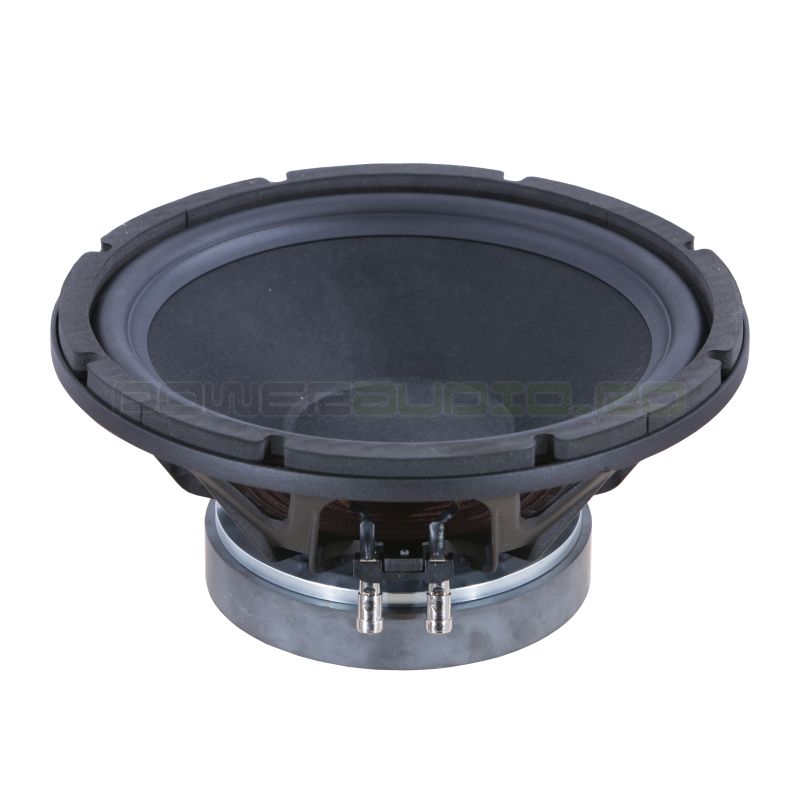

Faital Pro 12RS430

Faital Pro 12RS430 400W 8 Ohm Loudspeaker Driver

The Faital Pro 12RS430 is a powerful 12-inch speaker that delivers exceptional sound quality and can handle up to 400W of power. This makes it an ideal choice for a range of applications, including high-quality PA systems, studio monitors, and home hi-fi systems. With a focus on high-quality construction and advanced design, the Faital Pro 12RS430 produces crisp, clear sound with a rich, full-bodied tone. Its flexible half roll cone surround contributes to a low Fs of 33Hz, making the 12RS430 capable of impressive bass response that will bring your music or audio to life. With its impressive power handling capabilities, the Faital Pro 12RS430 can easily handle even the most demanding audio signals, ensuring that your music or sound effects sound their best. Whether you're a professional sound engineer or an avid audiophile, the Faital Pro 12RS430 is the perfect choice if you want a high-performance speaker that delivers exceptional sound quality and serious bass response.

Technical specifications

    Nominal Diameter: 300 mm (12in)
    Overall Diameter: 316 mm (12.44in)
    Bolt Circle Diameter: 298.5 mm (11.75in)
    Baffle Cutout Diameter: 282 mm (11.10in)
    Overall Depth: 157 mm (6.18in)
    Flange/Gasket Thickness: 19.5 mm (0.77in)
    Impedance: 8 ohm
    Minimum Impedance: 8 ohm
    AES Power: 400 W
    Program Power: 800 W
    Sensitivity: 93 dB
    Frequency Range: 30:2500 Hz
    Voice Coil Diameter: 65 mm (2.56in)
    Voice Coil Material: Al
    Voice Coil Former: Glass Fiber
    Voice Coil Depth: 29.8 mm (1.17in)
    Magnetic Gap Depth: 8 mm (0.31in)
    Surround Type: Half
    Spider Profile: 1x constant height waves
    Chassis Material: Aluminum
    Magnet Material: Ferrite Ring
    Demodulating Ring: Aluminum ring
    Flux Density: 1.50 T
    Driver Displacement Volume: 2.85 L (0.101ft^3)

Thiele and small parameters

    Resonance (Fs) - 30 Hz
    DC Resistance (Re) - 6.8 Ohm
    Electrical Q (Qes) - 0.36
    Mechanical Q (Qms) - 10.0
    Total Q (Qts) - 0.35
    Compliance Equivalent Volume (Vas) - 131.2 L
    Diaphragm Area (Sd) - 552 cm2
    Maximum Linear Excursion (Xmax) - 13.57 mm
    Maximum Mechanical Excursion (Xdamage) - 21.5 mm
    Moving Mass - System (Mms) - 91.3 g
    Force Factor (BL) - 18 Tm
    Voice Coil Inductance (Le) - 0.78 mH
    Moving Mass - Diaphragm (Mmd) - 76.6 g
    Compliance (Cms) - 0.31 mm/N
    Mechanical Resistance (Rms) - 1.7 Kg/s
    Reference Efficiency (Eta Zero) - 0.95 %
    Efficiency Bandwidth Product (EBP) - 83

Shipping Information

    Net Weight: 7.0 kg (15.4lb)
    Shipping Weight: 7.8 kg (17.2lb)
    Shipping Box: 350 x 346 x 216 mm

Notes

1 - AES Power: 2 Hours Test According to AES 2-1984 Rev. 2003
2 - Maximum/Program power is defined as 3 dB greater than AES Power
3 - Xmax: Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
4 - Xdamage: Maximum excursion before permanent damage
