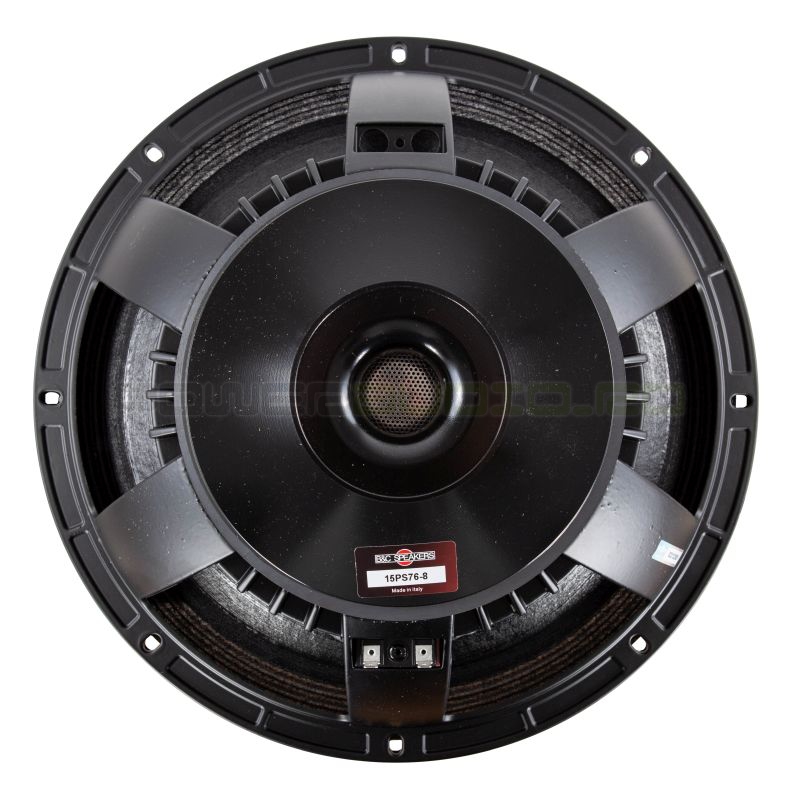

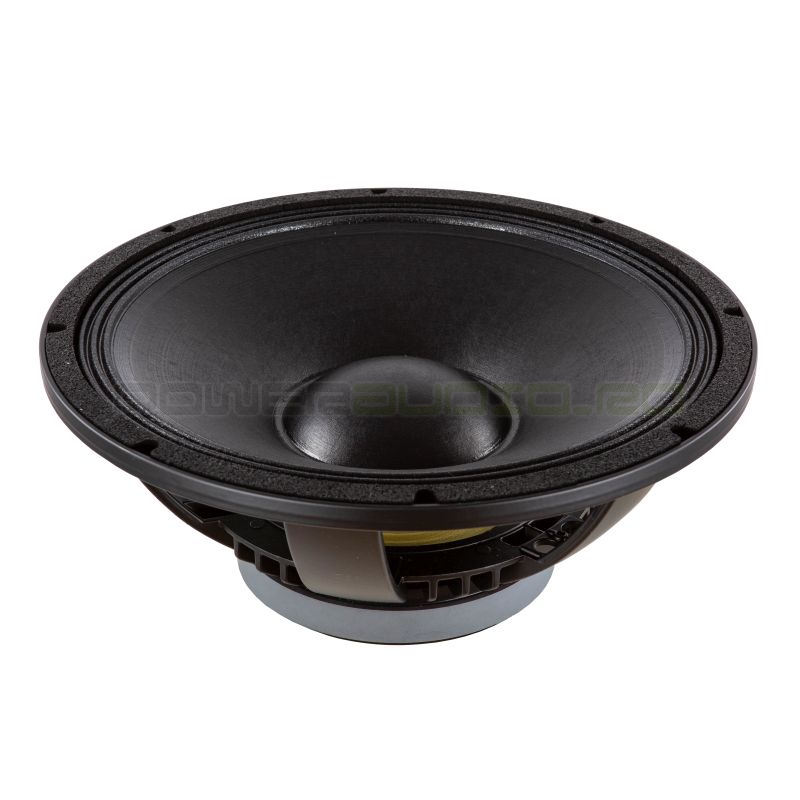

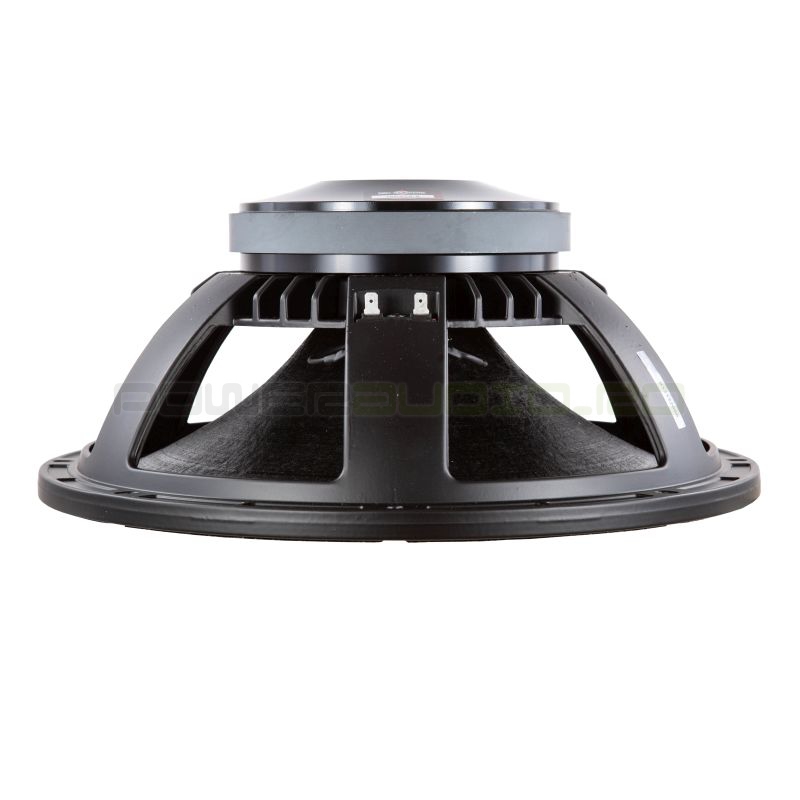

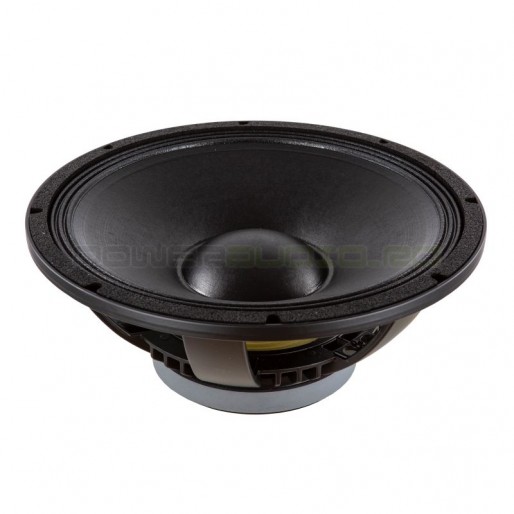

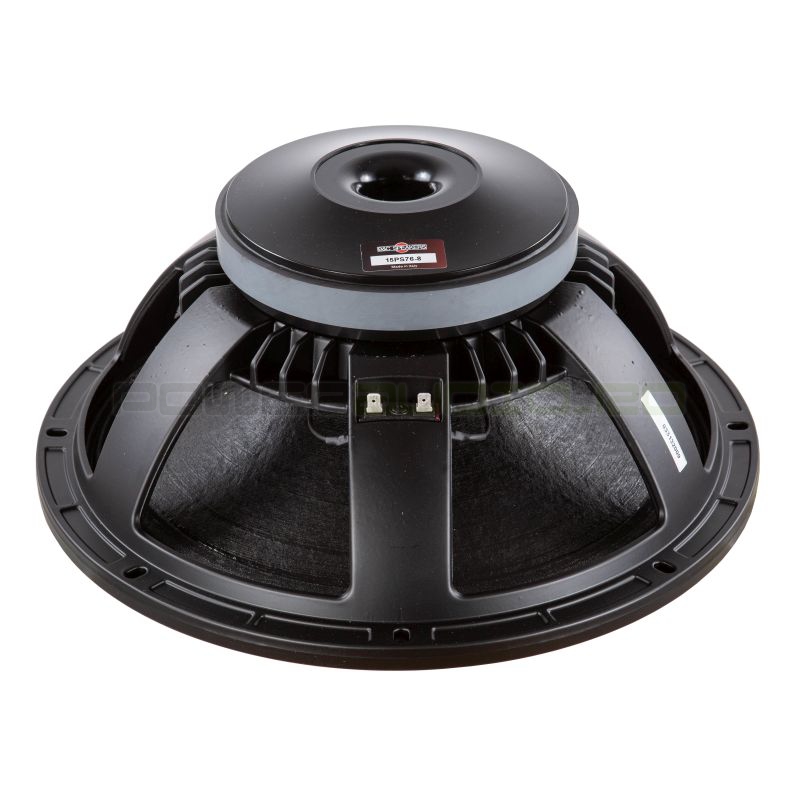

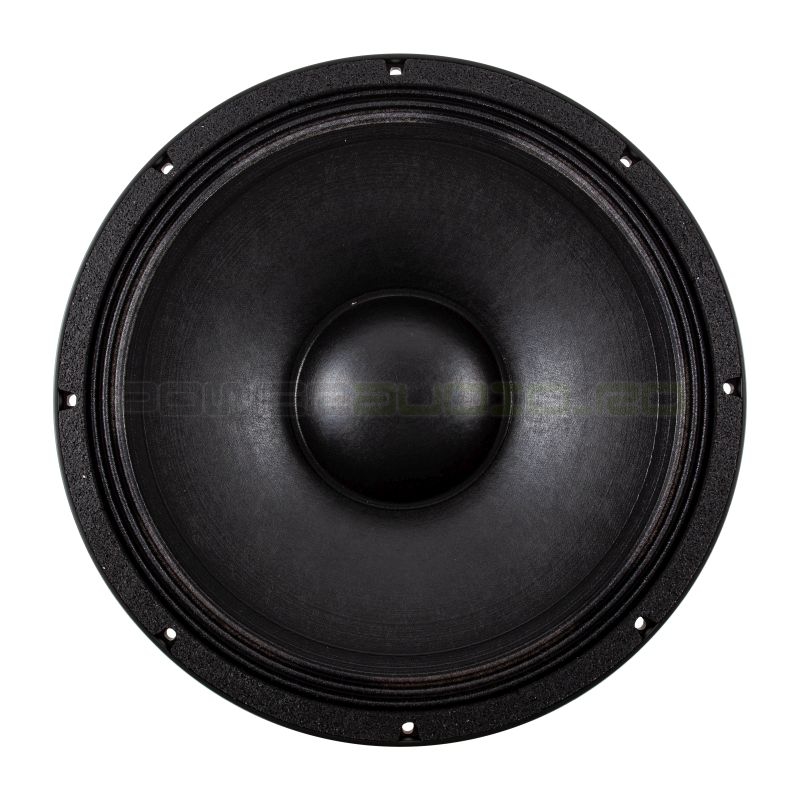

B&C 15PS76

15PS76

• Specifications
  • Nominal diameter
    380 mm (15.0 in)
  • Nominal impedance
    8 Ω
  • Minimum impedance
    6.3 Ω
  • Nominal power handling *
    550 W
  • Continuous power handling *
    1100 W
  • Sensitivity (1W/1m) *
    99.0 dB
  • Frequency range
    40 - 2000 Hz
  • Voice coil diameter
    76 mm (3.0 in)
  • Winding material
    Copper
  • Former material
    Glass Fibre
  • Winding depth
    19 mm (0.75 in)
  • Magnetic gap depth
    11 mm (0.4 in)
  • Flux density
    1.15 T
• Design
  • Surround shape
    Triple Roll
  • Cone shape
    Exponential
  • Magnet material
    Ferrite
  • Spider
    Double Silicone
  • Pole design
    T-Pole
  • Recommended enclosure
    110.0 dm³ (3.88 ft³)
  • Recommended tuning
    45 Hz
• Parameters *
  • Fs
    38 Hz
  • Re
    5.0 Ω
  • Qes
    0.28
  • Qms
    5.2
  • Qts
    0.26
  • Vas
    164.0 dm³ (5.7 ft³)
  • Sd
    855.0 cm² (132.5 in²)
  • η₀
    3.3 %
  • Xmax
    7.5 mm
  • Xvar
    8.5 mm
  • Mms
    106 g
  • Bl
    22.1 Txm
  • Le
    1.3 mH
  • EBP
    135 Hz
• Mounting And Shipping Info
  • Overall diameter
    393 mm (15.5 in)
  • Bolt circle diameter
    374 mm (14.7 in)
  • Baffle cutout diameter
    354.0 mm (13.9 in)
  • Depth
    171 mm (6.7 in)
  • Flange and gasket thickness
    16 mm (0.62 in)
  • Air volume occupied by driver
    0.0 dm³ (0.0 ft³)
  • Net weight
    8.7 kg (19.1 lb)
  • Shipping weight
    10.1 kg (22.2 lb)
  • Shipping box
    420x420x200 mm (16.5x16.5x7.9 in)
