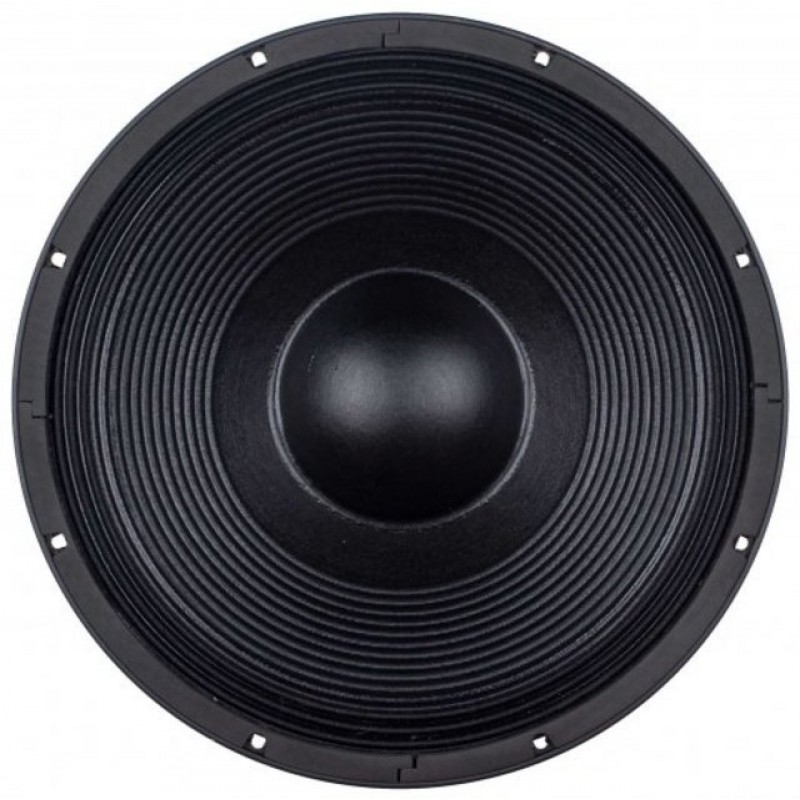

B&C 15NBX100

15NBX100

• Specifications
  • Nominal diameter
    380 mm (15.0 in)
  • Nominal impedance
    8 Ω
  • Minimum impedance
    6.4 Ω
  • Nominal power handling *
    1000 W
  • Continuous power handling *
    2000 W
  • Sensitivity (1W/1m) *
    97.0 dB
  • Frequency range
    35 - 1500 Hz
  • Voice coil diameter
    100 mm (4.0 in)
  • Winding material
    Copper
  • Former material
    Glass Fibre
  • Winding depth
    25 mm (1.0 in)
  • Magnetic gap depth
    11 mm (0.43 in)
  • Flux density
    1.1 T
• Design
  • Surround shape
    Triple Roll
  • Cone shape
    Exponential
  • Magnet material
    Neodymium Ring
  • Spider
    Double Silicone
  • Pole design
    T-Pole
  • Woofer cone treatment
    TWP Waterproof Both Sides
  • Recommended enclosure
    114.0 dm³ (4.0 ft³)
  • Recommended tuning
    35 Hz
• Parameters *
  • Fs
    36 Hz
  • Re
    5.1 Ω
  • Qes
    0.31
  • Qms
    4.2
  • Qts
    0.29
  • Vas
    125.0 dm³ (4.4 ft³)
  • Sd
    855.0 cm² (132.5 in²)
  • η₀
    2.0 %
  • Xmax
    10.0 mm
  • Xvar
    10.0 mm
  • Mms
    151 g
  • Bl
    25.0 Txm
  • Le
    2.0 mH
  • EBP
    116 Hz
• Mounting And Shipping Info
  • Overall diameter
    393 mm (15.5 in)
  • Bolt circle diameter
    374 mm (16.7 in)
  • Baffle cutout diameter
    353.0 mm (13.9 in)
  • Depth
    179 mm (7.05 in)
  • Flange and gasket thickness
    14 mm (0.55 in)
  • Air volume occupied by driver
    6.0 dm³ (0.21 ft³)
  • Net weight
    9.0 kg (19.8 lb)
  • Shipping units
    1
  • Shipping weight
    10.0 kg (22.0 lb)
  • Shipping box
    420x420x200 mm (16.5x16.5x7.9 in)
