Void V18-1000
  • Void V18-1000
  • Void V18-1000
  • Void V18-1000
  • Void V18-1000
  • Void V18-1000

Cere mai multe informatii despre Void V18-1000 la numarul de telefon 0766.332.366 sau discuta pe forumul Poweraudio.

Preţ: 1.550,00 Lei
Fără TVA: 1.302,52 Lei
1 bucati in stoc
Producător: Void audio
Cod produs: Void V18-1000
Puncte de recompensă: 25
-
+

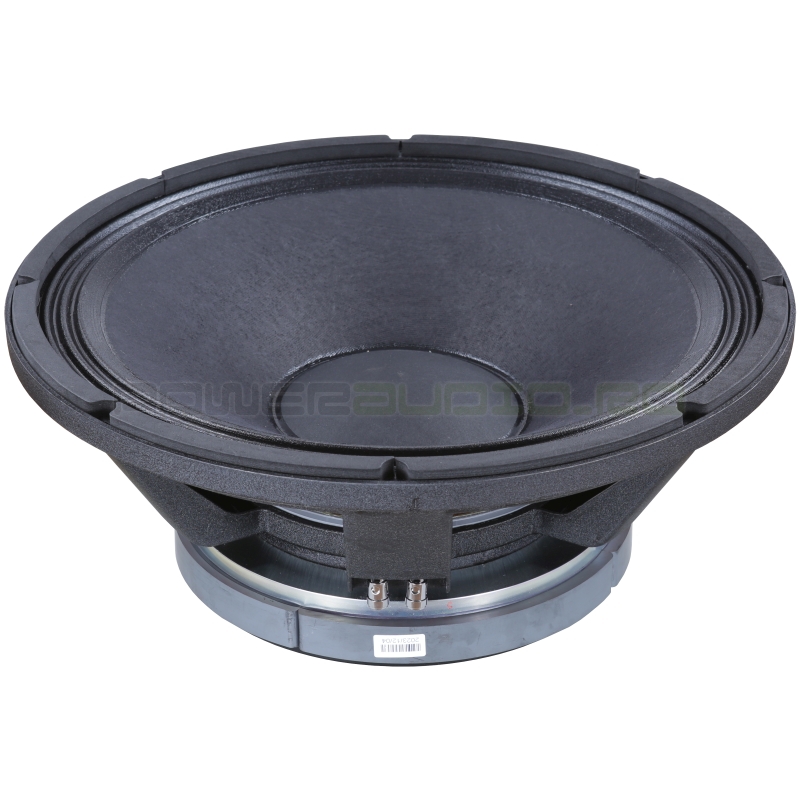

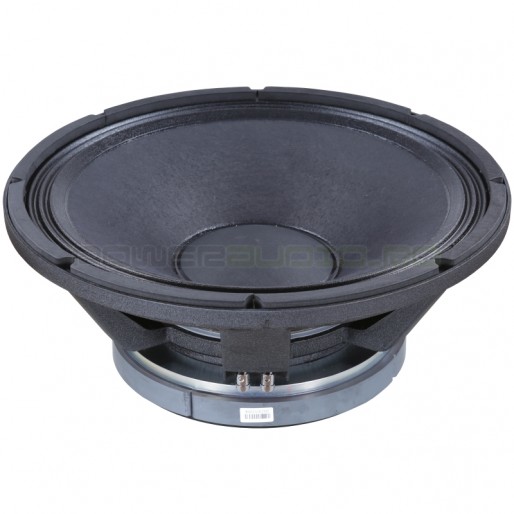

Void Acoustics V18-1000 18" 1000w AES Driver 8 ohms



Specifications:

  • Nominal Basket Diameter 18"
  • Nominal Impedance* 8 ohms
  • Power Rating 1000W RMS
  • Resonance 34.53Hz
  • Sensitivity*** 97.77dB
  • Voice Coil Diameter 5"


Thiele & Small Parameters:

  • Resonant Frequency (fs) 34.53Hz
  • DC Resistance (Re) 5.5 Ohms
  • Coil Inductance (Le) 2.2024mH
  • Mechanical Q (Qms) 7.6346
  • Electromagnetic Q (Qes) 0.2218
  • Total Q (Qts) 0.2155
  • Surface area of cone (SD) 1230 sq cm
  • Compliance Equivalent Volume (Vas) 201.7245 litres
  • Mechanical Compliance of Suspension (Cms) 0.093mm/N
  • BL Product (BL) 34.888 T-M
  • Diaphragm Mass Inc. Airload (MMs) 226.2389 grams
  • Diaphragm Mass Exc. Airload (MMd) 201.4347 grams
  • Maximum Linear Excursion (Xmax) 10.5mm
  • Efficiency No 3.6212%


Mounting Information:

  • Recommended Enclosure Volume
  • Overall Diameter 463mm
  • Baffle Hole Diameter 428mm
  • Mounting holes 8 off M6 on pitch circle diameter 442mm
  • Depth 170mm
  • Net Weight 17.8 kg
  • Shipping Weight 20.8 kgs
